System And Components

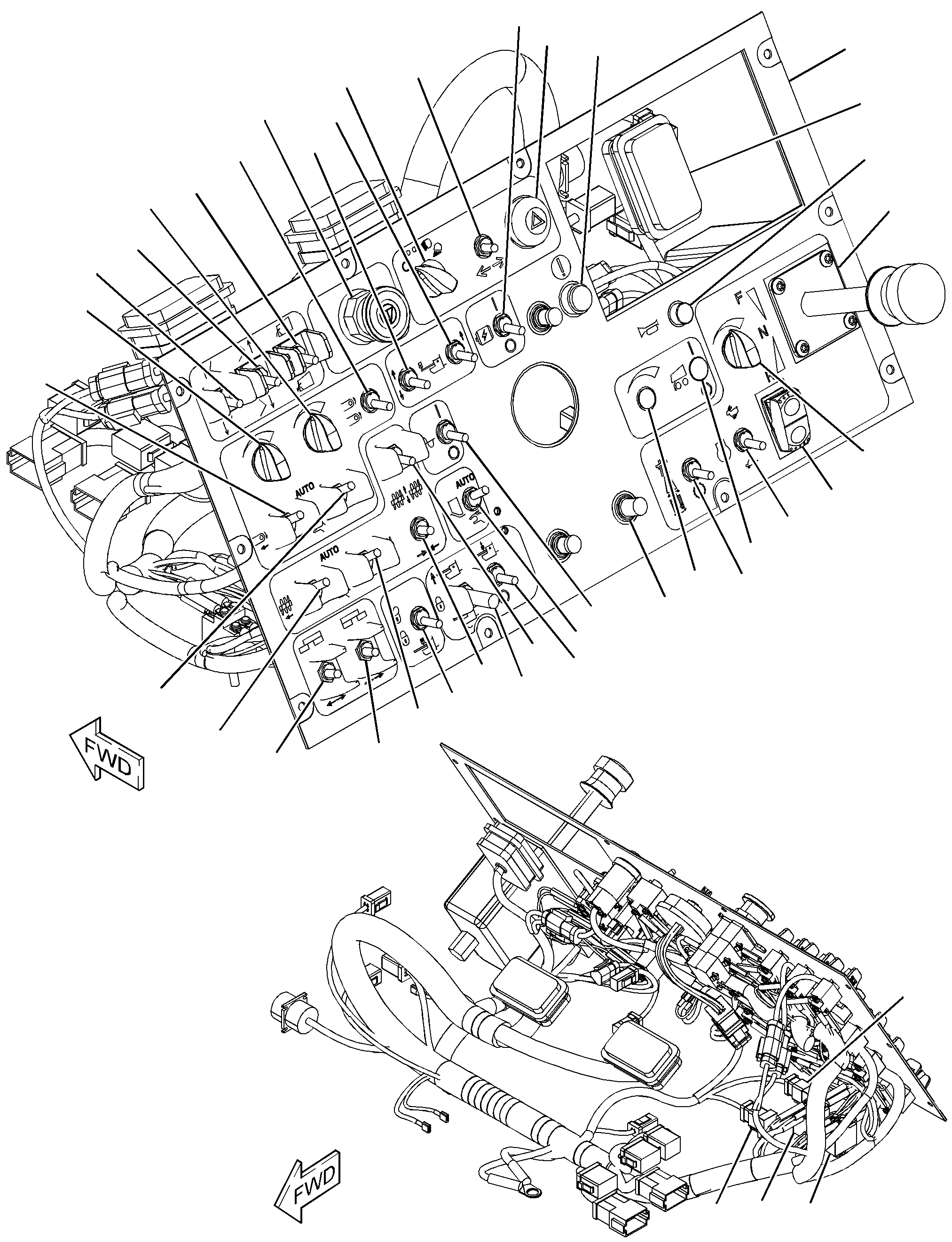

417-4688 PANEL GP-INSTRUMENTS/N TFM281-UP
Group No: 417-4688
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2728437 | 1 PANEL-OPERATOR | 1 | |
| 4174687 | 2 HARNESS AS-PANEL | 1 | |
| 2659984 | 3 BRACKET | 11 | |
| 1323090 | 4 LEVER GP-PROPEL | 1 | |
| 2468912 | 5 SWITCH GP-TOGGLE (APRON FOLD) | 1 | |
| 2468912 | 5A SWITCH GP-TOGGLE (HOPPER, RH) | 1 | |
| 2468912 | 5B SWITCH GP-TOGGLE (HOPPER, LH) | 1 | |
| 2468912 | 5C SWITCH GP-TOGGLE (EXTENDER, LH) | 1 | |
| 2468912 | 5D SWITCH GP-TOGGLE (EXTENDER, RH) | 1 | |
| 8C9812 | 6 SWITCH AS-TOGGLE (CONVEYOR, LH) | 1 | |
| 8C9812 | 6A SWITCH AS-TOGGLE (CONVEYOR, RH) | 1 | |
| 8C9812 | 6B SWITCH AS-TOGGLE (AUGER, LH) | 1 | |
| 8C9812 | 6C SWITCH AS-TOGGLE (AUGER, RH) | 1 | |
| 9G0011 | 7 SWITCH AS-TOGGLE (TOW POINT CONTROL, LH) | 1 | |
| 9G0011 | 7A SWITCH AS-TOGGLE (TOW POINT CONTROL, RH) | 1 | |
| 9G0011 | 7B SWITCH AS-TOGGLE (AUGER LIFT) | 1 | |
| 9G0011 | 7C SWITCH AS-TOGGLE (AUGER REVERSE) | 1 | |
| 9G0011 | 7D SWITCH AS-TOGGLE (THROTTLE) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 9D3721 | 8 SWITCH-TOGGLE (SINGLE POLE)(CLEAR) | 1 | |
| 2138147 | 9 POTENTIOMETER AS (PROPEL SPEED) | 1 | |
| 2138147 | 9A POTENTIOMETER AS (CONVEYOR SPEED, LH) | 1 | |
| 2138147 | 9B POTENTIOMETER AS (CONVEYOR SPEED, RH) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 9X1813 | SLEEVE (25-CM) | ||
| 1128144 | TUBE-HEAT SHRINK (4.8-MM DIA)(10-CM) | ||
| 1V6652 | 10 SWITCH AS-TOGGLE (TURN SIGNAL) | 1 | |
| 1V6652 | 10A SWITCH AS-TOGGLE (TAMPER CONTROL) | 1 | |
| 1V6652 | 10B SWITCH AS-TOGGLE (TRANSMISSION) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 4D1836 | 11 SWITCH-TOGGLE (GENERATOR) | 1 | |
| 4D1836 | 11A SWITCH-TOGGLE (VIBRATORY CONTROL) | 1 | |
| 4D1836 | 11B SWITCH-TOGGLE (COUNTERBALANCE) | 1 | |
| 4D1836 | 11C SWITCH-TOGGLE (SCREED) | 1 | |
| 1097187 | 12 SWITCH AS-TOGGLE (SCREED CONTROL) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 1165275 | 13 SWITCH GP-PUSH BUTTON (OPERATOR)(ENGINE STOP) | 1 | |
| 1166565 | 14 BLOCK AS (LIGHT) | 1 | |
| 8L9801 | LAMP (12-VOLT) | 1 | |
| 1165277 | 15 BLOCK (CONTACT) | 2 | |
| 1165270 | 16 LAMP (24-VOLT) | 1 | |
| 3478607 | 17 KNOB (PARKING BRAKE) | 1 | |
| 2814678 | 18 SWITCH AS-PUSH BUTTON (HAZARD) | 1 | |
| 3166409 | 19 LAMP AS (10 TO 32-VOLT)(CONSOLE) | 3 | |
| 5P5694 | TERMINAL-BLADE (14-GA TO 16-GA) | 2 | |
| 6V8367 | LOCKWASHER | 1 | |
| 6V8382 | NUT-HEX (11/16-27-THD) | 1 | |
| 3D9718 | 20 SWITCH AS-PUSH BUTTON (HORN) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 6V8832 | NUT (5/8-32-THD) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 7N5876 | 21 LAMP (24-VOLT, 0.2-AMPERE) | 4 | |
| 9D3127 | 22 BASE AS-INDICATOR LIGHT | 1 | |
| 6V8367 | LOCKWASHER | 1 | |
| 6V8382 | NUT-HEX (11/16-27-THD) | 1 | |
| 9D2868 | 23 LENS-RED | 1 | |
| 1753950 | 24 SWITCH AS-ROTARY (WORK LIGHTS) | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 7 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 7N8008 | 25 SWITCH AS-TOGGLE (LIMP HOME, RH) | 1 | |
| 7N8008 | 25A SWITCH AS-TOGGLE (LIMP HOME, LH) | 1 | |
| 1729200 | 26 SUPPRESSOR-ARC | 2 | |
| 7C4550 | 27 SEAL (ROTATING SHAFT) | 3 | |
| 3165717 | 28 KNOB AS | 4 | |
| 3480379 | 29 FILM-PANEL | 1 | |
| 2227890 | 30 SWITCH AS-ROCKER (PARKING BRAKE) | 1 | |
| 3937092 | 31 PLUG | 1 | |
| 3V4694 | 32 PLUG-BUTTON | 1 |
