System And Components
Assembly
100%

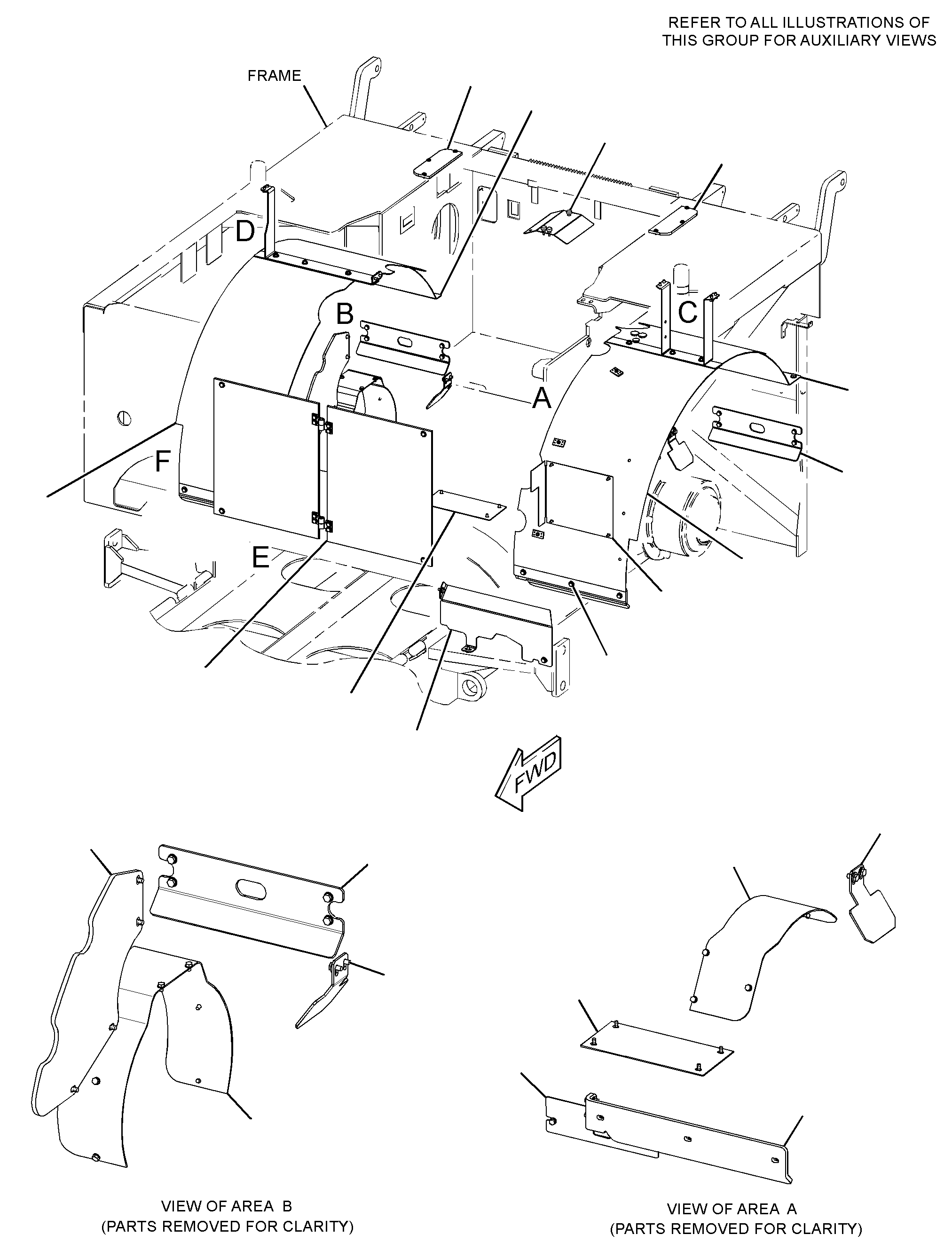

293-9898 COVER GP-ACCESSS/N TFM1-UP

Group No: 293-9898
Part NumberPart NameQty
7R36301 HINGE AS4
10750142 KNOB3
19630643 PLATE2
20059044 PLATE2
23702625 PLATE2
24195136 COVER1
27365437 PLATE2
28380468 PLATE1
28466159 PLATE1
295876511 FENDER1
295876612 FENDER1
295876713 FENDER1
295876814 BRACKET2
295876915 BRACKET1
295877016 BRACKET1
295877417 BRACKET1
296081218 BRACKET1
296363719 FLASHING1
302596620 FENDER AS1
308050222 PLATE1
318874323 FLASHING1
318874424 FLASHING1
5P411625 WASHER-HARD (8.8X20.5X2-MM THK)15
7X772926 WASHER (11X25X3-MM THK)55
8T412128 WASHER-HARD (11X21X2.5-MM THK)12
8T413329 NUT (M10X1.5-THD)20
8T413630 BOLT (M10X1.5X25-MM)13
8T413731 BOLT (M10X1.5X20-MM)18
8T413832 BOLT (M6X1X20-MM)6
8T418934 BOLT (M8X1.25X20-MM)4
8T419135 BOLT (M10X1.5X16-MM)6
8T419236 BOLT (M12X1.75X25-MM)4
8T419537 BOLT (M10X1.5X30-MM)10
8T419638 BOLT (M10X1.5X35-MM)8
8T419939 BOLT (M8X1.25X12-MM)11
8T420040 BOLT (M8X1.25X16-MM)2
8T422341 WASHER-HARD (13.5X25.5X3-MM THK)4
8T422442 WASHER-HARD (8.8X16X2-MM THK)2
9X261643 SCREW-SOCKET (M8X1.25X16-MM)8
5P411544 WASHER-HARD (7.2X19X2-MM THK)6
4S633645 PLUG-BUTTON2
9D376746 PLUG-BUTTON1
8T793447 WASHER-HARD (11X21X5-MM THK)8
