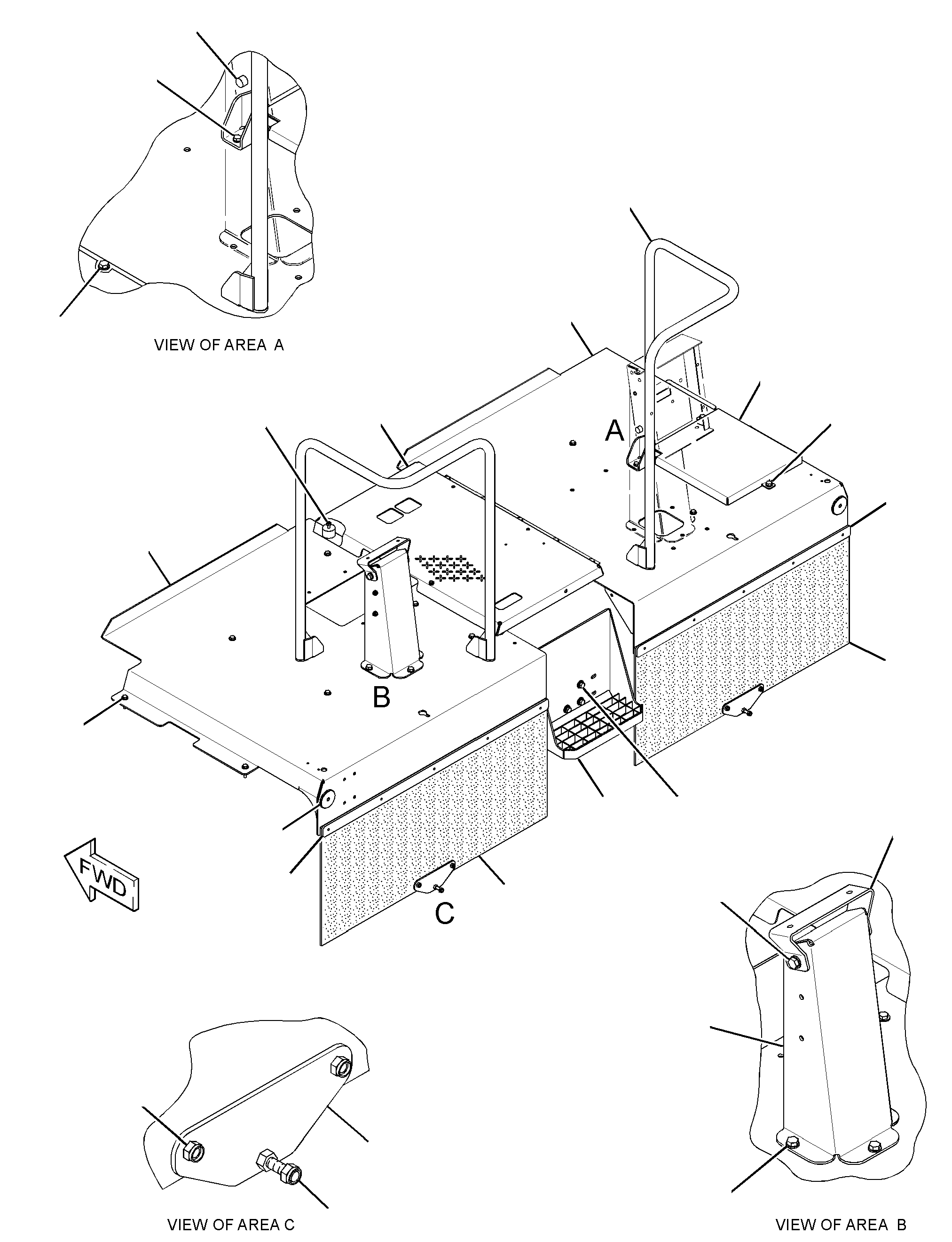

Assembly
100%

286-3493 COVER GP-SCREEDS/N TFM1-UP

Group No: 286-3493
Part NumberPart NameQty
8C75051 SCREW-FLAT HEAD (M8X1.25X20-MM)4
23931062 BUMPER1
24226623 STEP1
24228104 STOPPER-RUBBER3
24228815 REFLECTOR2
25871676 PLATE (RH)1
25871687 COVER-RUBBER1
25871708 COVER-RUBBER1
25871729 PLATE (LH)1
287475910 COVER AS1
288941611 SUPPORT1
288943012 SUPPORT AS1
292883013 HANDRAIL AS2
310982014 PLATE2
312502615 COVER-BOX1
339168116 COVER AS (LH)1
315371217 COVER AS (RH)1
8T419918 BOLT (M8X1.25X12-MM)14
131354019 LOCKNUT (M8X1.25-THD)6
5C287421 NUT (M5X0.8-THD)2
5C726122 NUT (M8X1.25-THD)5
5P411623 WASHER-HARD (8.8X20.5X2-MM THK)14
5W134124 BOLT-SOCKET HEAD (M8X1.25X16-MM)10
5W145325 LOCKWASHER2
7X772926 WASHER (11X25X3-MM THK)5
8T038927 LOCKNUT (M10X1.5-THD)2
8T412128 WASHER-HARD (11X21X2.5-MM THK)16
8T413629 BOLT (M10X1.5X25-MM)10
8T413730 BOLT (M10X1.5X20-MM)6
8T422431 WASHER-HARD (8.8X16X2-MM THK)9
8T490832 BOLT (M8X1.25X25-MM)8
269513833 WASHER (13X24X3-MM THK)6
8C750634 SCREW-MACHINE (M8X1.25X40-MM)2
437419135 PLATE1
142230436 SCREW-BUTTON HEAD (M8X1.25X35-MM)1
8V716237 CABLE1
7X057938 WASHER-HARD (8.8X25.5X2-MM THK)3
5E989239 PIN1
3T085240 LOCKNUT (M8X1.25-THD)1
