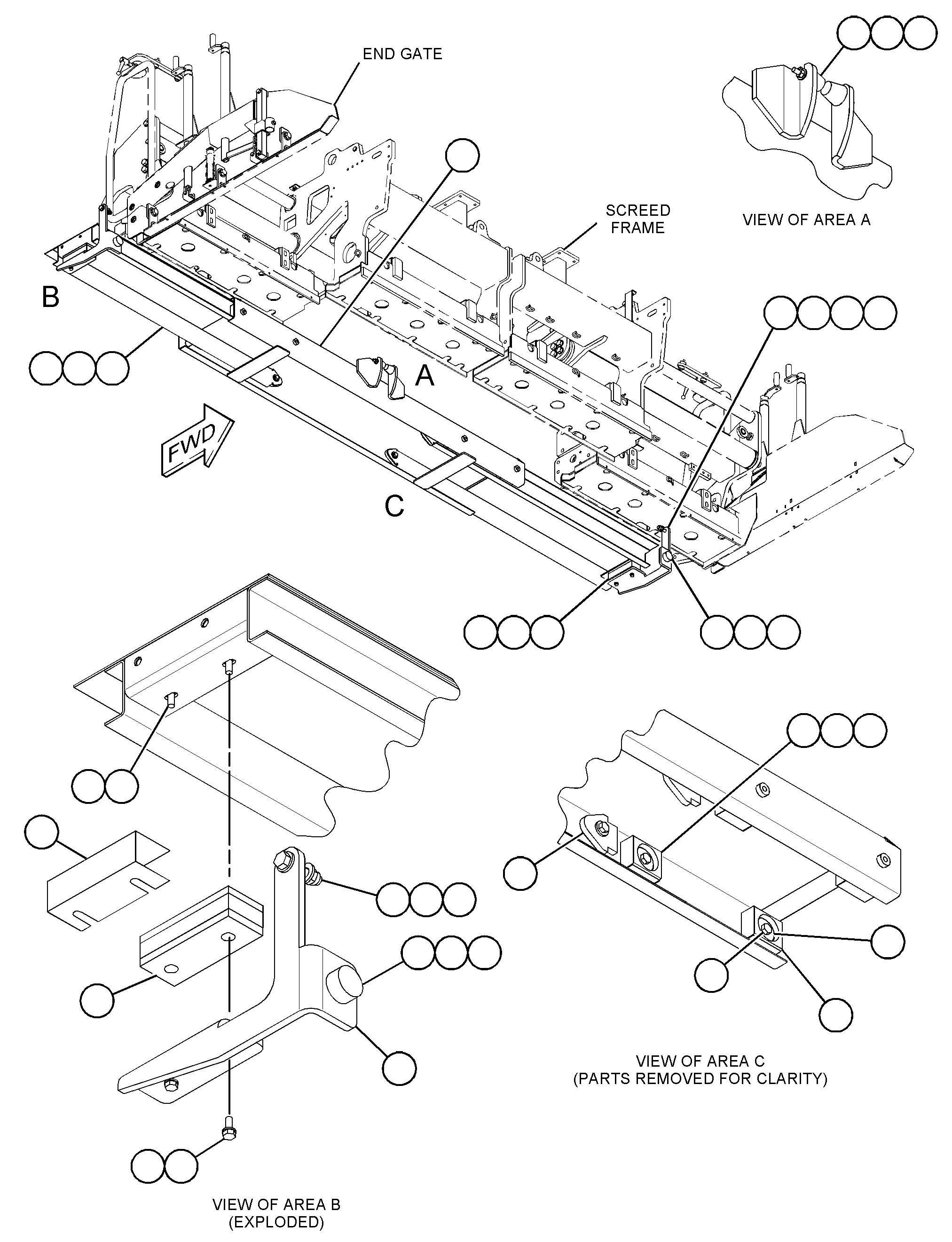

417-6625 PLATFORM GP-OPERATORPART OF 417-6650 SCREED AR

Group No: 417-6625
Part NumberPart NameQty
13871251 BUMPER2
32083502 DAMPER2
39506003 PLATE4
39506084 PAD8
43346345 PLATFORM AS2
8T3612NUT-WELD (M8X1.25-THD)2
43346386 PLATFORM AS (MAIN)1
43421597 SUPPORT (LH)1
43421608 SUPPORT (RH)1
45369459 DAMPER AS2
4490369DAMPER (2-M)
096998610 BOLT (M12X1.75X55-MM)2
341311911 WASHER-HARD (13X48X3.5-MM THK)8
3T085212 LOCKNUT (M8X1.25-THD)2
5C726113 NUT (M8X1.25-THD)2
5P107614 WASHER-HARD (13.5X30X4-MM THK)4
5P411615 WASHER-HARD (8.8X20.5X2-MM THK)2
8T417916 BOLT (M12X1.75X20-MM)4
8T418917 BOLT (M8X1.25X20-MM)8
8T419218 BOLT (M12X1.75X25-MM)8
8T422319 WASHER-HARD (13.5X25.5X3-MM THK)4
8T422420 WASHER-HARD (8.8X16X2-MM THK)10
8T854921 LOCKNUT (M12X1.75-THD)2
473941622 BRACKET2
