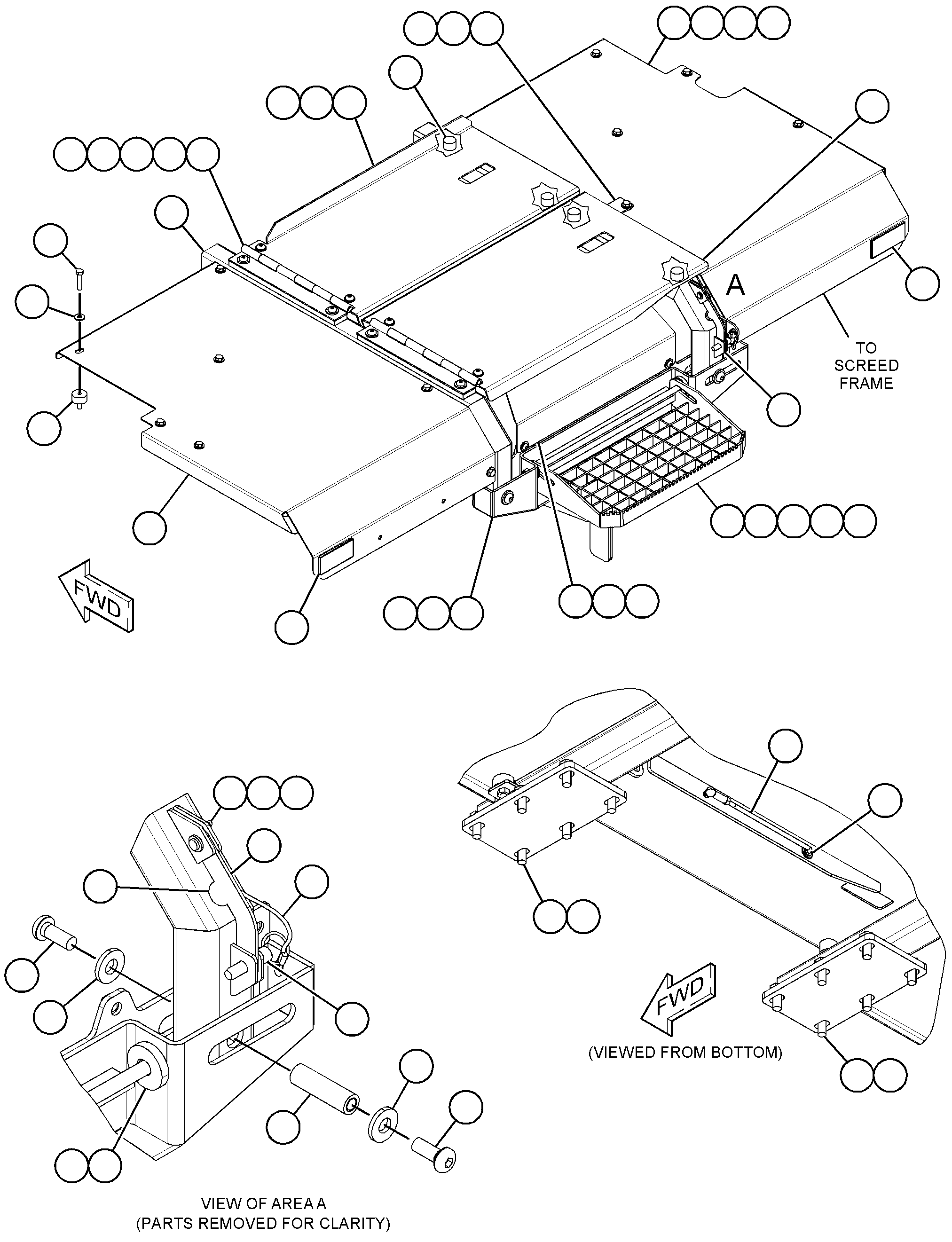

417-6624 COVER GP-SCREEDPART OF 417-6650 SCREED AR
Group No: 417-6624
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9R1499 | 1 REFLECTOR (RED) | 2 | |
| 1111777 | 2 BUMPER-RUBBER | 1 | |
| 2393173 | 3 HINGE | 2 | |
| 2422805 | 4 WASHER-SPRING | 4 | |
| 2492421 | 5 PIN-DETENT | 1 | |
| 2532357 | 6 BLOCK | 4 | |
| 3208339 | 7 STEP AS | 1 | |
| 3208347 | 8 ROD-THREADED | 1 | |
| 3208348 | 9 PAD | 1 | |
| 3451251 | 10 CABLE AS | 1 | |
| 3609134 | 11 DAMPER | 14 | |
| 4343637 | 12 TUBE | 2 | |
| 4343643 | 13 PLATE AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 4343648 | 14 LINK | 1 | |
| 4390052 | 15 PLATE | 1 | |
| 4731220 | 16 PLATFORM AS | 1 | |
| 4470780 | 17 PLATFORM AS | 1 | |
| 4470783 | 18 ROD GP (ADJUSTABLE) | 2 | |
| 4490377 | 19 ARM AS (RH) | 1 | |
| 4504699 | 20 ARM AS (LH) | 1 | |
| 4800604 | 21 COVER AS (RH) | 1 | |
| 4504705 | 22 COVER-TOP (LH) | 1 | |
| 0950844 | 23 PIN-COTTER | 23 | |
| 1293180 | 24 LOCKNUT (M12X1.75-THD) | 2 | |
| 1713396 | 25 GROMMET | 2 | |
| 1887092 | 26 PIN | 1 | |
| 1983899 | 27 SCREW-BUTTON HEAD (M8X1.25X20-MM) | 2 | |
| 2975510 | 28 SCREW-HEX SOCKET (M12X1.75X30-MM) | 4 | |
| 3445675 | 29 NUT (M10X1.5-THD) | 4 | |
| 5P1076 | 30 WASHER-HARD (13.5X30X4-MM THK) | 4 | |
| 5P4116 | 31 WASHER-HARD (8.8X20.5X2-MM THK) | 20 | |
| 7X7729 | 32 WASHER (11X25X3-MM THK) | 4 | |
| 8C8585 | 33 SCREW-BUTTON HEAD (M10X1.5X20-MM) | 8 | |
| 8T4121 | 34 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4139 | 35 BOLT (M12X1.75X30-MM) | 12 | |
| 8T4205 | 36 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 8T4223 | 37 WASHER-HARD (13.5X25.5X3-MM THK) | 12 | |
| 7Y8555 | 38 SEAL (4-DM) | ||
| 8T4199 | 39 BOLT (M8X1.25X12-MM) | 16 | |
| 4800605 | 40 PLATE | 1 |
