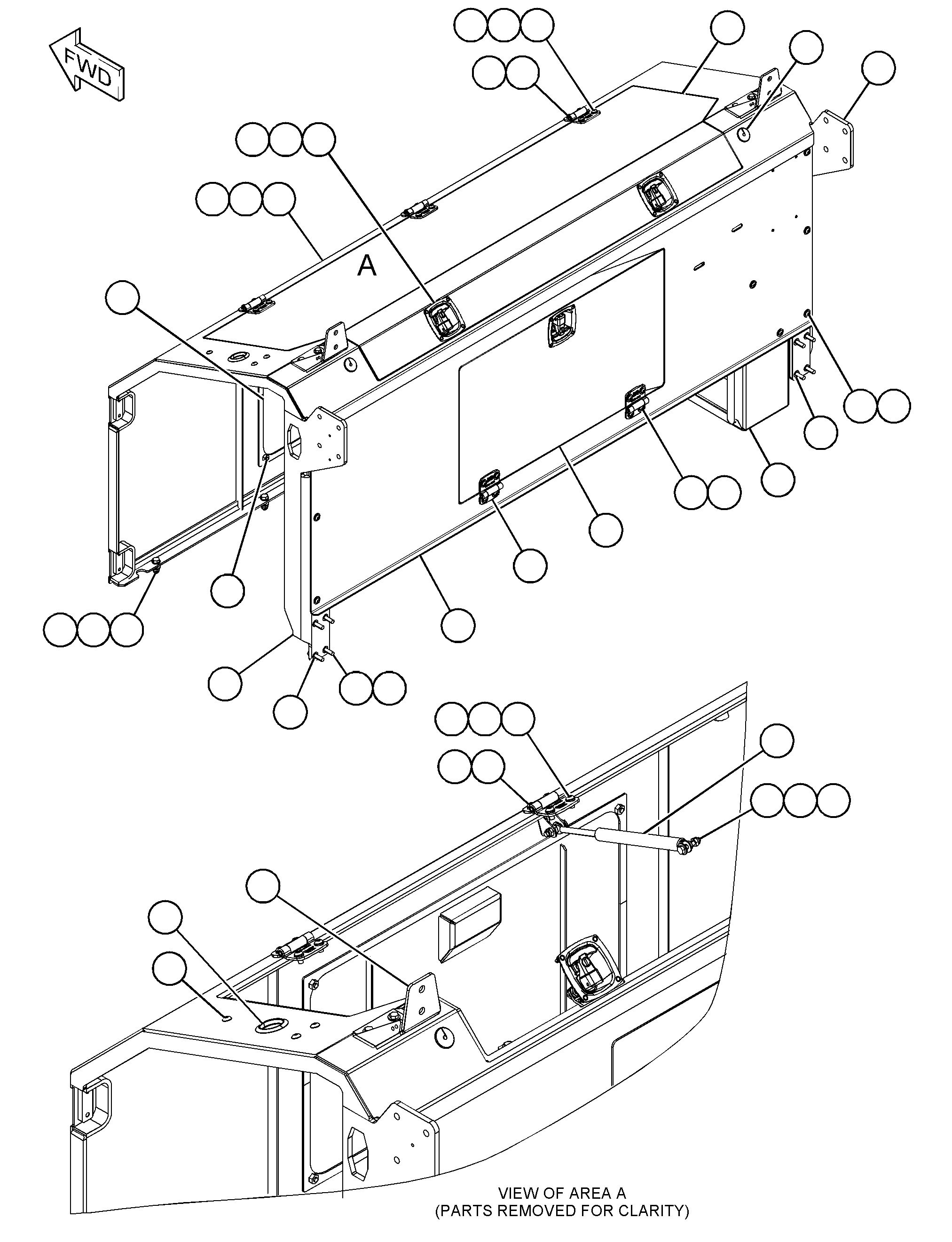

481-6444 COVER GP-REARPART OF 456-7935 COVER GP-REAR

Group No: 481-6444
Part NumberPart NameQty
29640901 HINGE AS5
30531692 PAWL3
49598443 PLUG-BUTTON1
32606104 LATCH AS3
1H3244LOCKWASHER4
1608499NUT (M12X1.5-THD)2
3260612WASHER-TAB2
5C2890NUT (M6X1-THD)4
45897615 COVER AS1
8T3612NUT-WELD (M8X1.25-THD)7
48006066 BRACKET AS (RH)1
8T3612NUT-WELD (M8X1.25-THD)3
48006077 BRACKET AS (LH)1
7T1099LINK3
8T3612NUT-WELD (M8X1.25-THD)3
46029468 COVER AS1
46029489 DOOR AS1
8T3612NUT-WELD (M8X1.25-THD)4
461883010 SPRING AS-GAS (DOOR ACCESS)1
462530211 COVER GP-REAR1
463375112 PLATE2
481644513 COVER AS1
6V9632NUT-WELD (M6X1-THD)3
7T1099LINK4
8T3490NUT-WELD (M10X1.5-THD)4
8T3612NUT-WELD (M8X1.25-THD)18
1639662BOSS-THREADED (M12X1.75-THD)1
486310714 PLATE AS1
7T1099LINK7
8T3612NUT-WELD (M8X1.25-THD)3
099364915 BOLT (M8X1.25X40-MM)2
6V845416 SCREW-HEX SOCKET (M8X1.25X16-MM)4
198389917 SCREW-BUTTON HEAD (M8X1.25X20-MM)8
3T085218 LOCKNUT (M8X1.25-THD)2
5P411619 WASHER-HARD (8.8X20.5X2-MM THK)25
7Y739420 SCREW-BUTTON HEAD (M8X1.25X25-MM)12
8T038921 LOCKNUT (M10X1.5-THD)6
8T399122 SCREW-BUTTON HEAD (M6X1X20-MM)3
8T412123 WASHER-HARD (11X21X2.5-MM THK)20
8T418624 BOLT (M10X1.5X40-MM)8
8T418925 BOLT (M8X1.25X20-MM)7
8T419626 BOLT (M10X1.5X35-MM)6
8T422427 WASHER-HARD (8.8X16X2-MM THK)12
9G267328 GROMMET2
9X261629 SCREW-SOCKET (M8X1.25X16-MM)6
9X825630 WASHER (6.6X12X2-MM THK)12
382846631 SHIM (0.5-MM)8
