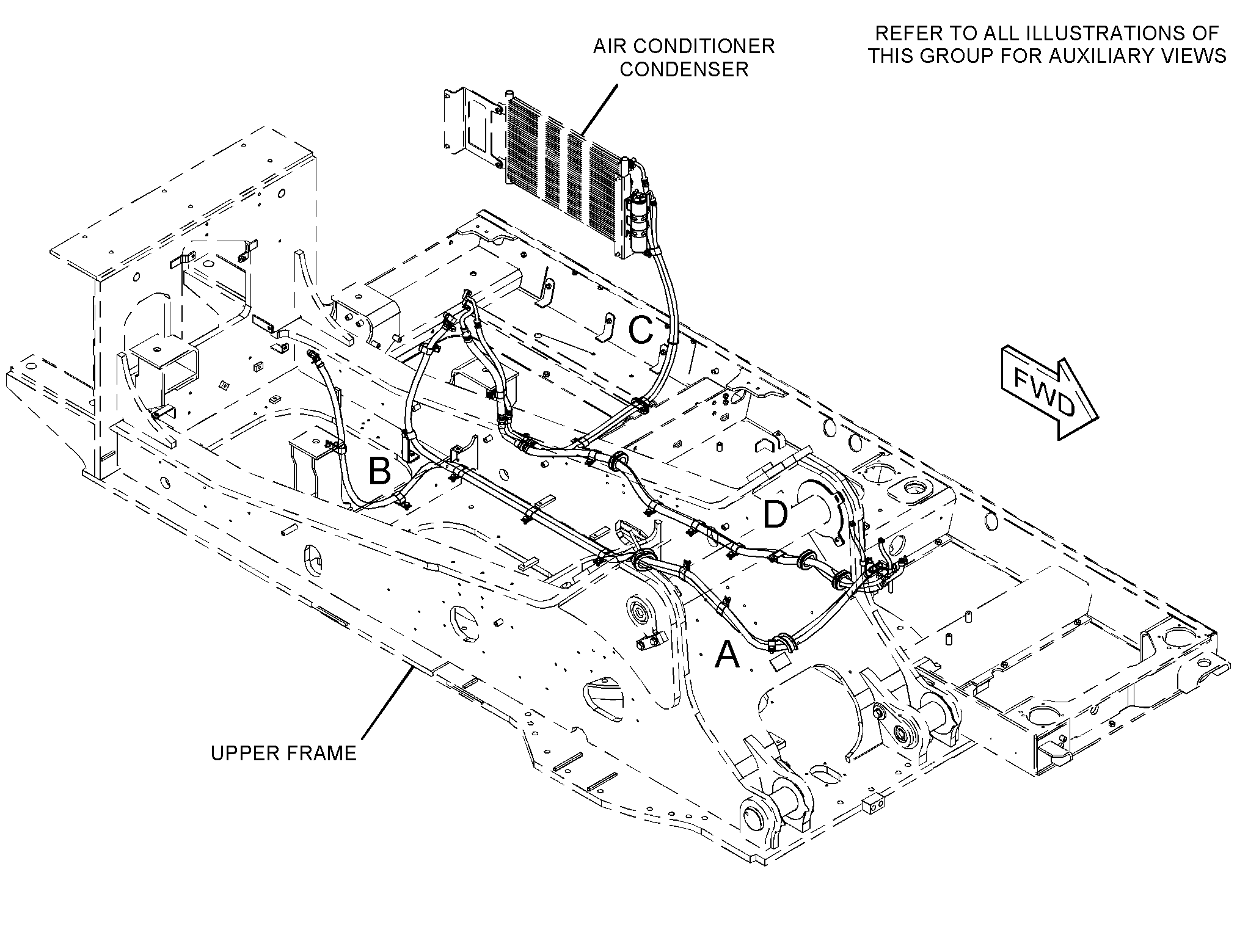

383-5588 LINES GP-AIR CONDITIONERS/N NAJ1-UP; PFL1-UP

Group No: 383-5588
Part NumberPart NameQty
2S16471 GROMMET1
5I38782 GROMMET (50-MM ID)3
14165263 GROMMET1
22557994 HOSE-DRAIN2
22558005 CLAMP2
30504416 BAND-MARKER (HS)2
30504427 BAND-MARKER (HR)2
32671958 BRACKET AS1
32765589 DRYER-REFRIGERANT (RECEIVER)1
372930210 BRACKET AS1
383563511 HOSE AS-REFRIGERANT1
1133467SEAL-O-RING1
2457850CAP1
383563612 HOSE AS-REFRIGERANT1
1133468SEAL-O-RING1
2457851CAP1
383563713 HOSE AS-REFRIGERANT1
1217063SEAL-O-RING2
418074214 PIPE AS1
1217063SEAL-O-RING2
100433615 CLIP (LOOP)3
1S099416 CLIP (LOOP)2
235901417 CLAMP-SPRING4
336648218 CLIP (LOOP)7
336648319 CLIP3
3K036020 SEAL-O-RING2
3S209321 STRAP-CABLE1
5C955322 BOLT (M6X1X16-MM)2
5P490623 ELBOW1
5P961524 CONNECTOR1
6D164125 CLIP (LOOP)6
6V735726 BOLT (M6X1X25-MM)4
202276227 CLIP (LOOP)2
8M277328 CLIP (LOOP)2
8T412129 WASHER-HARD (11X21X2.5-MM THK)23
8T413630 BOLT (M10X1.5X25-MM)5
8T413731 BOLT (M10X1.5X20-MM)18
8T420032 BOLT (M8X1.25X16-MM)2
8T422433 WASHER-HARD (8.8X16X2-MM THK)5
8T490834 BOLT (M8X1.25X25-MM)2
8T497135 BOLT (M6X1X30-MM)1
8T754736 BOLT (M8X1.25X30-MM)1
9X825637 WASHER (6.6X12X2-MM THK)7
102117438 GUARD (12-CM)
5P076739 HOSE (372-CM)
5P076739A HOSE (322-CM)
