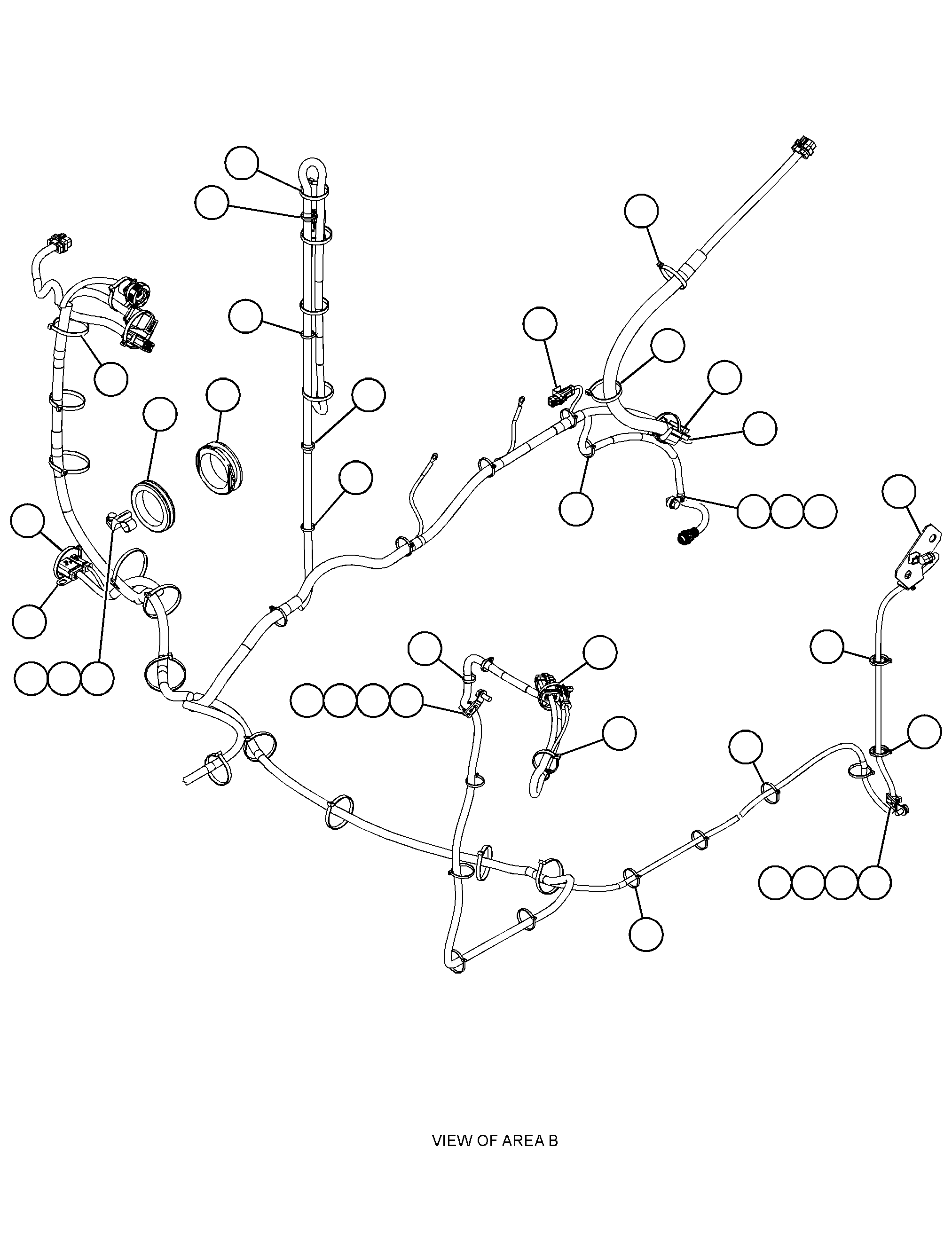

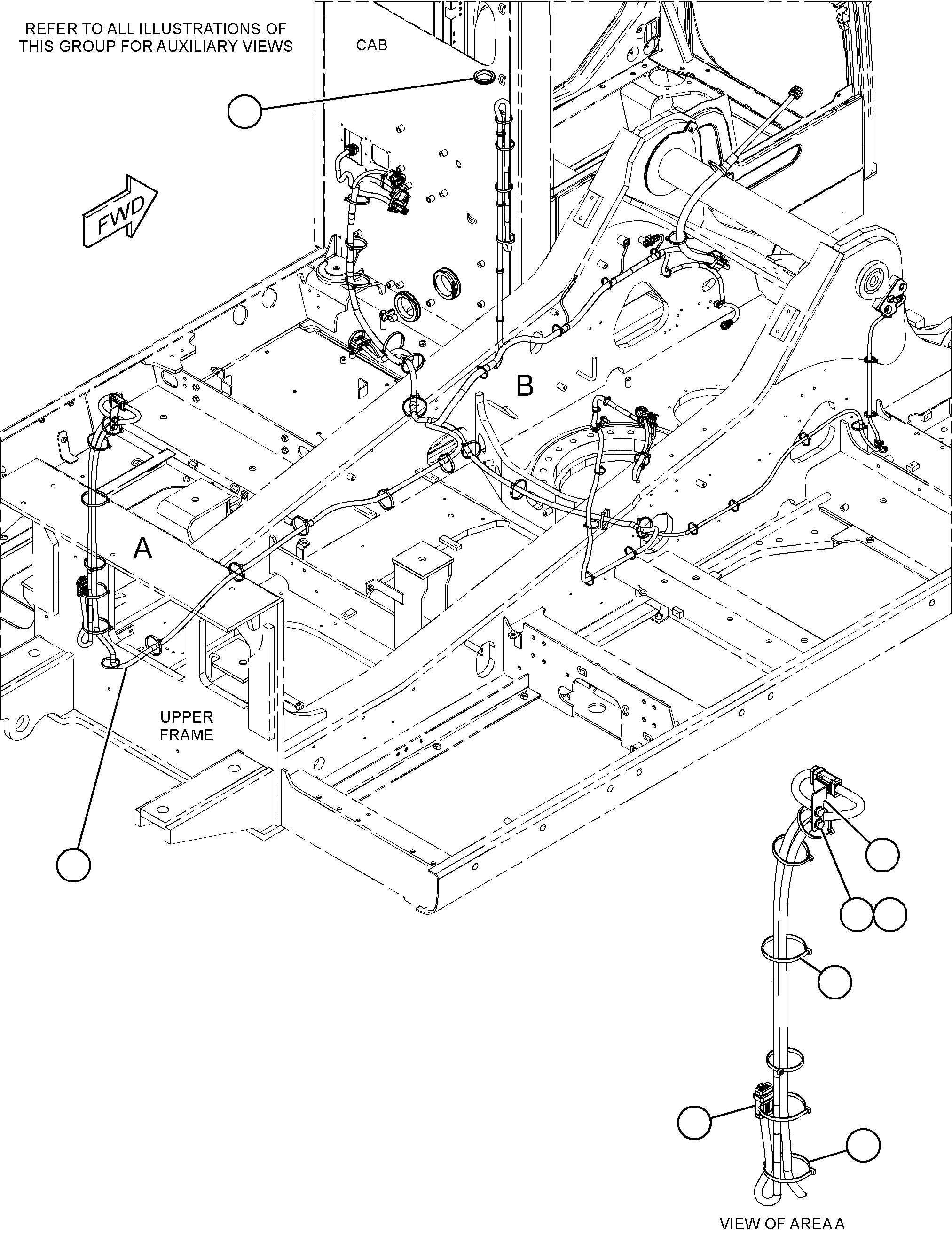

377-8184 WIRING GP-CHASSIS -GRADE CONTROLS/N KCS1-UP; LJY1-UP

Group No: 377-8184 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE23
7K11812 STRAP-CABLE35
11148363 CLIP1
11148374 CLIP3
11601185 CLIP2
33663526 BRACKET AS1
44513957 BRACKET AS1
44615758 HARNESS AS-CHASSIS (COUNTERWEIGHT)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)7
1261767PIN-CONNECTOR (14-GA TO 16-GA)7
2304009PLUG AS-CONNECTOR (12-PIN)2
4550709SEAL-CONNECTOR1
8T8737PLUG-SEAL19
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)10
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)10
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(25-CM)
45207379 HARNESS AS-CHASSIS1
4167158COVER-CONNECTOR1
2628088HOSE (67-CM)
9X3401PIN-CONNECTOR (16-GA TO 18-GA)44
1261767PIN-CONNECTOR (14-GA TO 16-GA)44
1552256KIT-CONNECTING PLUG (12-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
2370166KIT-CONNECTING PLUG (12-PIN)1
2304009PLUG AS-CONNECTOR (12-PIN)4
4550709SEAL-CONNECTOR1
2532695PLUG AS-CONNECTOR (6-PIN)1
8T8737PLUG-SEAL76
3245678RESISTOR AS (120-OHM)2
2647029SEAL-CONNECTOR1
1907614KIT-RECEPTACLE (12-PIN)1
3704059KIT-RECEPTACLE (12-PIN)1
9W1951RECEPTACLE AS-CONNECTOR (9-PIN)1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)3
2434510RECEPTACLE AS-CONNECTOR (12-PIN)4
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)41
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)41
3S2093STRAP-CABLE5
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)2
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(80-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(30-CM)
2S164710 GROMMET1
4I395311 GROMMET1
4P758112 CLIP (LADDER)2
7Y452913 GROMMET1
8T412114 WASHER-HARD (11X21X2.5-MM THK)6
8T413615 BOLT (M10X1.5X25-MM)1
8T413716 BOLT (M10X1.5X20-MM)5
