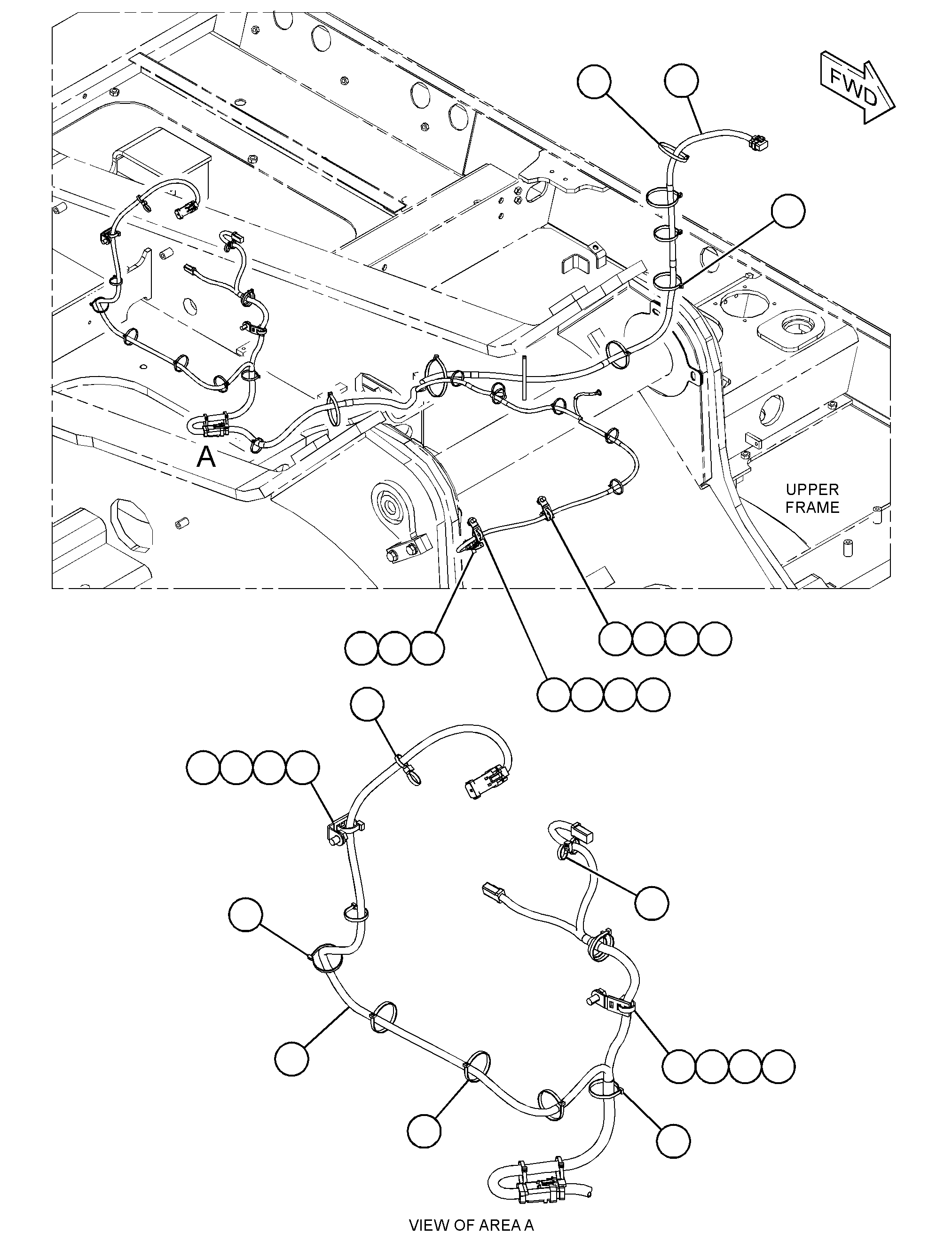

493-6679 WIRING GP-CHASSIS -UNIVERSAL QUICK COUPLERS/N KCS10001-UP; LJY10001-UP

Group No: 493-6679 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE17
7K11812 STRAP-CABLE12
11601183 CLIP1
48062244 HARNESS AS-VALVE (UNIVERSAL QUICK COUPLER)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)4
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)4
8T8737PLUG-SEAL1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)3
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)3
9X3401PIN-CONNECTOR (16-GA TO 18-GA)3
1261767PIN-CONNECTOR (14-GA TO 16-GA)3
1552270KIT-CONNECTING PLUG (2-PIN)2
2434509RECEPTACLE AS-CONNECTOR (8-PIN)1
2818803PLUG AS-CONNECTOR (3-PIN)1
4550705SEAL-CONNECTOR1
3422973CAP-CONNECTOR (3-PIN)1
49436185 HARNESS AS-CHASSIS (UNIVERSAL QUICK COUPLER)1
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)10
3S2093STRAP-CABLE1
8T8737PLUG-SEAL6
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)6
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)6
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)1
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2312295PLUG AS-CONNECTOR (8-PIN)1
4550708SEAL-CONNECTOR1
13257896 CLIP (LADDER)1
4P75817 CLIP (LADDER)3
7I26738 STRAP-CABLE2
8T41219 WASHER-HARD (11X21X2.5-MM THK)5
8T413710 BOLT (M10X1.5X20-MM)1
8T419111 BOLT (M10X1.5X16-MM)4
