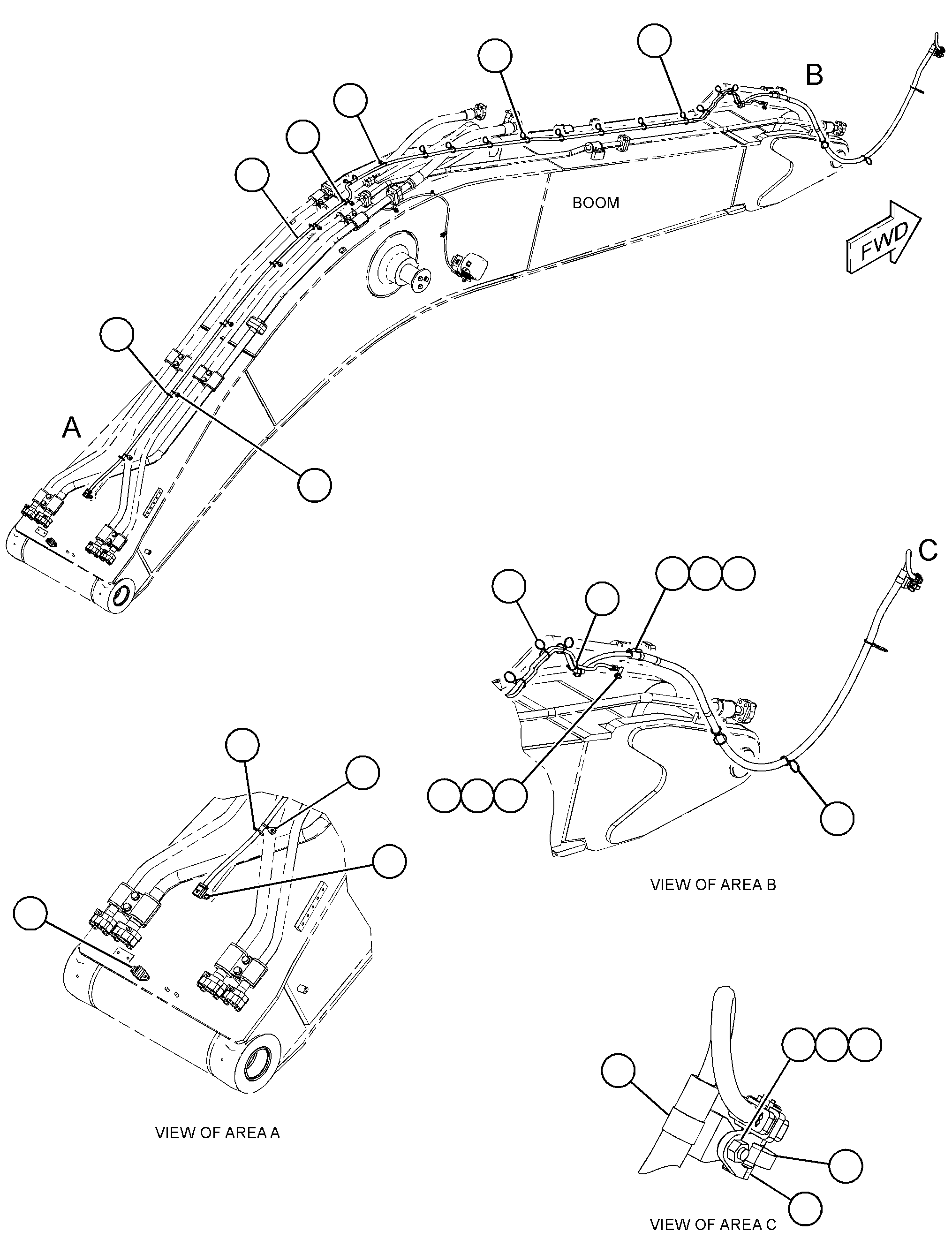

319-1275 WIRING GP-FRONT -GRADE CONTROL, BOOMS/N KCS1-UP; LJY1-UP
Group No: 319-1275 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 9 | |
| 1114836 | 2 CLIP | 8 | |
| 1114837 | 3 CLIP | 3 | |
| 1160118 | 4 CLIP | 2 | |
| 1404767 | 5 CLAMP-HOSE | 1 | |
| 4639840 | 6 HARNESS AS-CONTROL | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 1 | |
| 8T8737 | PLUG-SEAL | 5 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 11 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 11 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 9 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 9 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 1 | |
| 4550709 | SEAL-CONNECTOR | 1 | |
| 2434510 | RECEPTACLE AS-CONNECTOR (12-PIN) | 1 | |
| 2628088 | HOSE (211-CM) | ||
| 1114838 | 7 CLIP | 1 | |
| 2041611 | 8 STRAP-CABLE (DUAL) | 14 | |
| 8T4121 | 9 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T4133 | 10 NUT (M10X1.5-THD) | 1 | |
| 8T4137 | 11 BOLT (M10X1.5X20-MM) | 1 | |
| 8T4191 | 12 BOLT (M10X1.5X16-MM) | 1 | |
| 8T4195 | 13 BOLT (M10X1.5X30-MM) | 1 |
