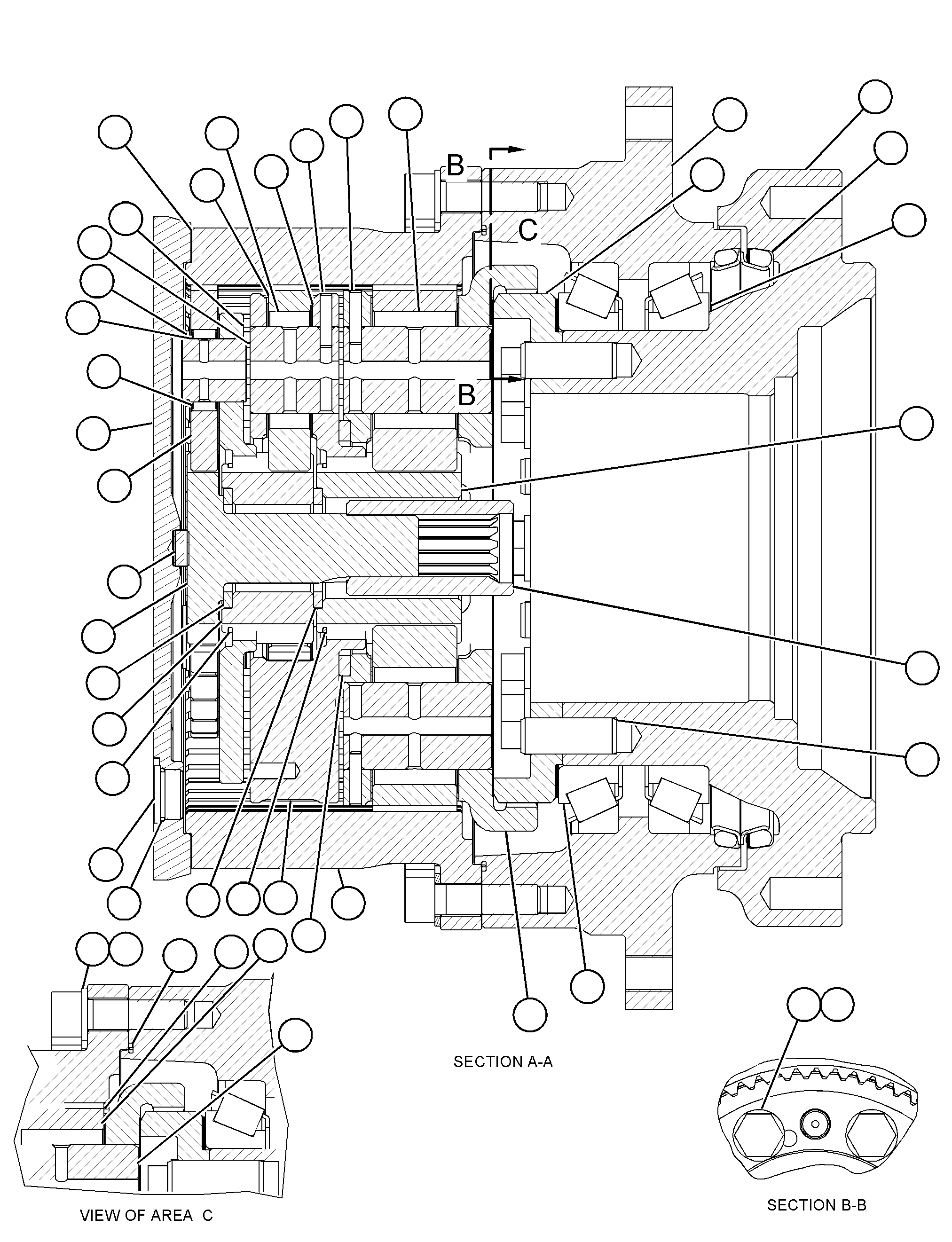

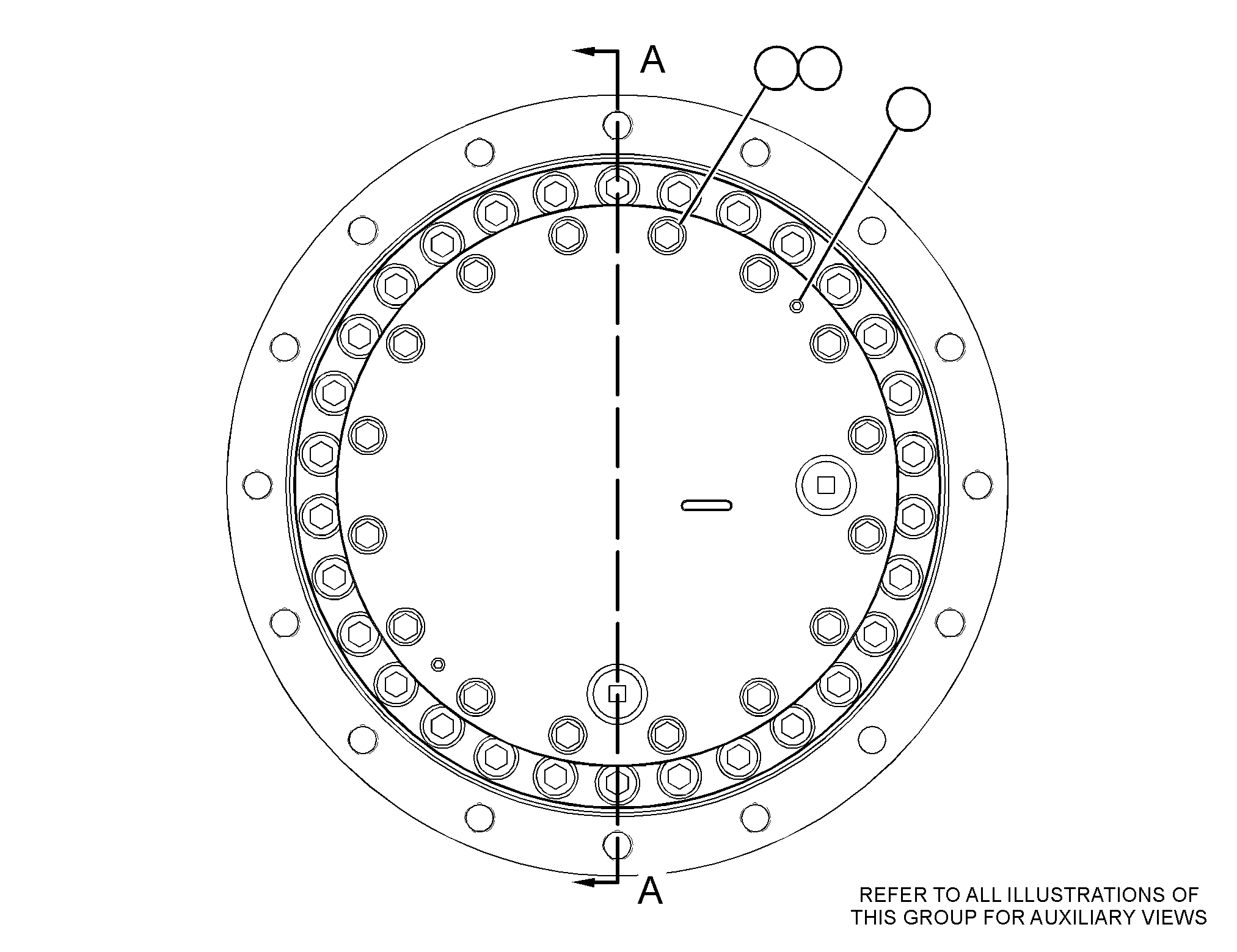

501-7238 DRIVE GP-FINAL -LHS/N KCS1-UP; LJY1-UP

Group No: 501-7238 · Commonality

Part Number	Part Name	Qty
0940577	1 PLATE (7-MM THK)	1
0940578	PLATE (8-MM THK)	1
0940579	PLATE (9-MM THK)	1
0940580	PLATE (10-MM THK)	1
7M8485	2 SEAL-O-RING	2
7Y0595	3 SPACER (58X79.6X6-MM THK)	2
7Y5217	4 BOLT-SOCKET HEAD (M20X2.5X70-MM)	30
1362898	5 WASHER (58.3X89X1-MM THK)	14
1912645	6 COUPLING	1
1912690	7 WASHER (42.3X70X1-MM THK)	6
2276192	8 GEAR-COUPLING	1
2552272	9 SEAL GP-DUO-CONE	1
2059114	RING-TORIC	2
2959234	10 SEAL-O-RING	1
2966181	11 HOUSING	1
2966183	12 CARRIER-PLANETARY	1
2966184	13 GEAR-PLANETARY (21-TEETH)	4
2966185	14 SHAFT	4
2966186	15 GEAR-PLANETARY (21-TEETH)	3
2966189	16 GEAR-SUN (20-TEETH)	1
2966190	17 GEAR-SUN (20-TEETH)	1
2966192	18 SPACER (143X170X8-MM THK)	1
2966194	19 CARRIER-PLANETARY	1
2966195	20 SHAFT	3
2966230	21 GEAR-PLANETARY (21-TEETH)	3
2966231	22 GEAR-SUN (20-TEETH)	1
2966232	23 CARRIER AS	1
2966311	24 GEAR-RING (64-TEETH)	1
4512176	25 WASHER-HARD (22X35X3.5-MM THK)	30
4523519	26 HOUSING-MOTOR	1
4707587	27 COVER	1
5017237	28 GASKET	1
0931731	29 RING-RETAINING	2
0950891	30 PIN-SPRING	7
0963216	31 SETSCREW-SOCKET (M12X1.75X12-MM)	2
0968058	32 RING-RETAINING	3
1141541	33 PIN-DOWEL	6
1430811	34 BOLT (12X1.75X35-MM)	16
2676809	35 SHIM (0.75-MM THK)	1
2676810	SHIM (0.85-MM THK)	1
2676811	SHIM (0.9-MM THK)	1
2676812	SHIM (0.95-MM THK)	1
2676813	SHIM (1.2-MM THK)	1
2676814	SHIM (1.4-MM THK)	1
2676815	SHIM (1.8-MM THK)	1
2676816	SHIM (2-MM THK)	1
2676817	SHIM (2.3-MM THK)	1
7Y1056	SHIM (0.8-MM THK)	1
7Y1057	SHIM (1-MM THK)	1
2790344	36 BEARING AS-TAPERED ROLLER	2
2966247	37 BEARING AS-ROLLER	11
2966248	38 BEARING AS-ROLLER	3
3E2338	39 PLUG-PIPE	2
5P8245	40 WASHER-HARD (13.5X25.5X3-MM THK)	16
6V8133	41 BOLT (M24X3X80-MM)	10
6V8237	42 WASHER (26X44X4-MM THK)	10
