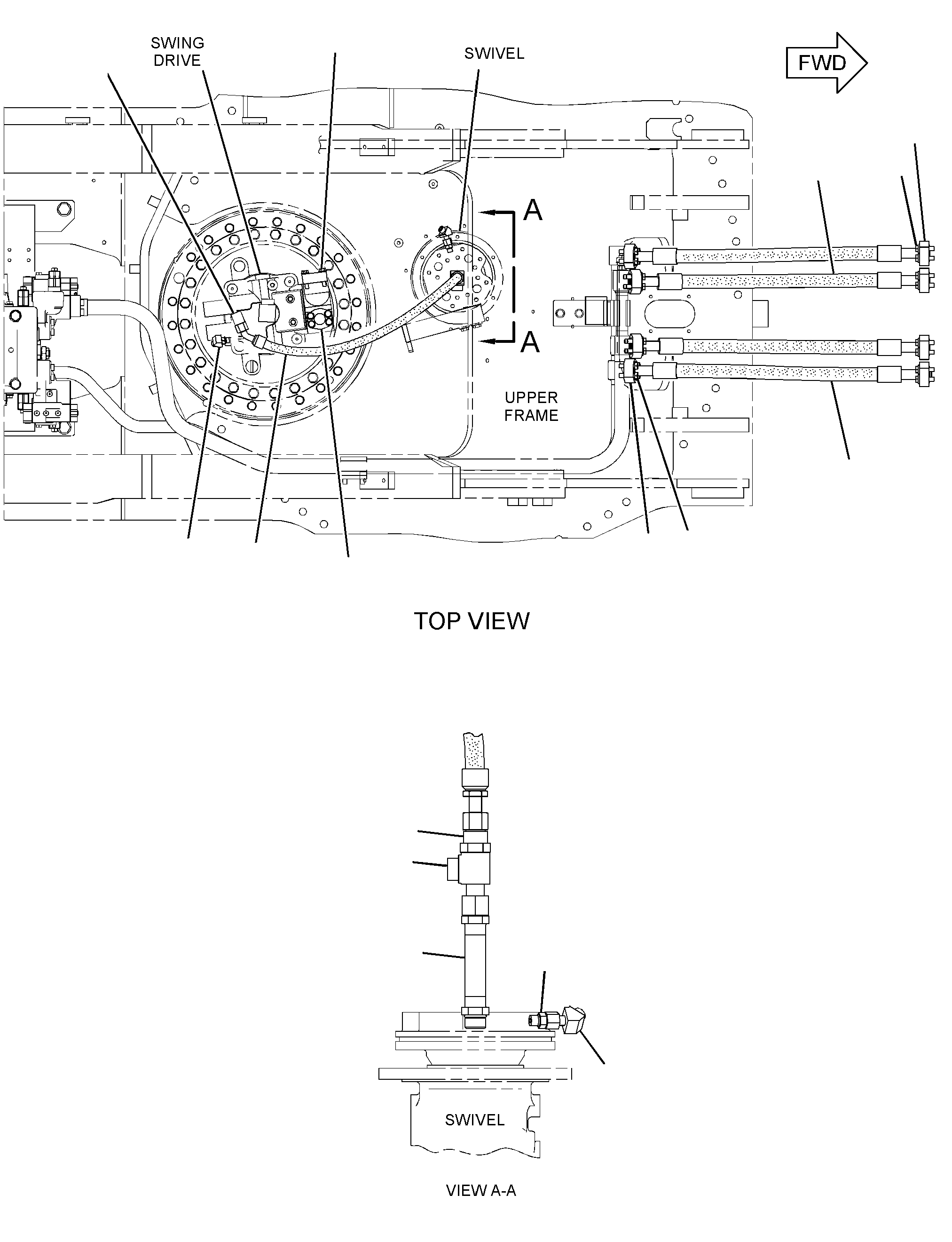

317-4781 LINES GP-BOOM CYLINDERS/N KCS1-UP; LJY1-UP
Group No: 317-4781 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2852520 | 1 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 2362839 | CONNECTOR | 1 | |
| 3598470 | 2 HOSE AS | 1 | |
| 3598587 | 3 HOSE AS | 4 | |
| 1488336 | 4 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488353 | 5 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488371 | 6 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C8988 | ELBOW | 1 | |
| 1488414 | 7 REDUCER AS | 1 | |
| 6V8943 | REDUCER | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488449 | 8 TEE AS-SWIVEL | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 6V9839 | TEE-SWIVEL | 1 | |
| 1504048 | 9 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8722 | ELBOW | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1P3703 | 10 SEAL-RECTANGULAR | 8 | |
| 6V0400 | 11 FLANGE-HALF | 16 | |
| 8T4121 | 12 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4182 | 13 BOLT (M10X1.5X45-MM) | 8 | |
| 8T4184 | 14 BOLT (M12X1.75X45-MM) | 32 | |
| 8T4223 | 16 WASHER-HARD (13.5X25.5X3-MM THK) | 32 | |
| 8T9403 | 17 FLANGE-HALF | 4 |
