System And Components

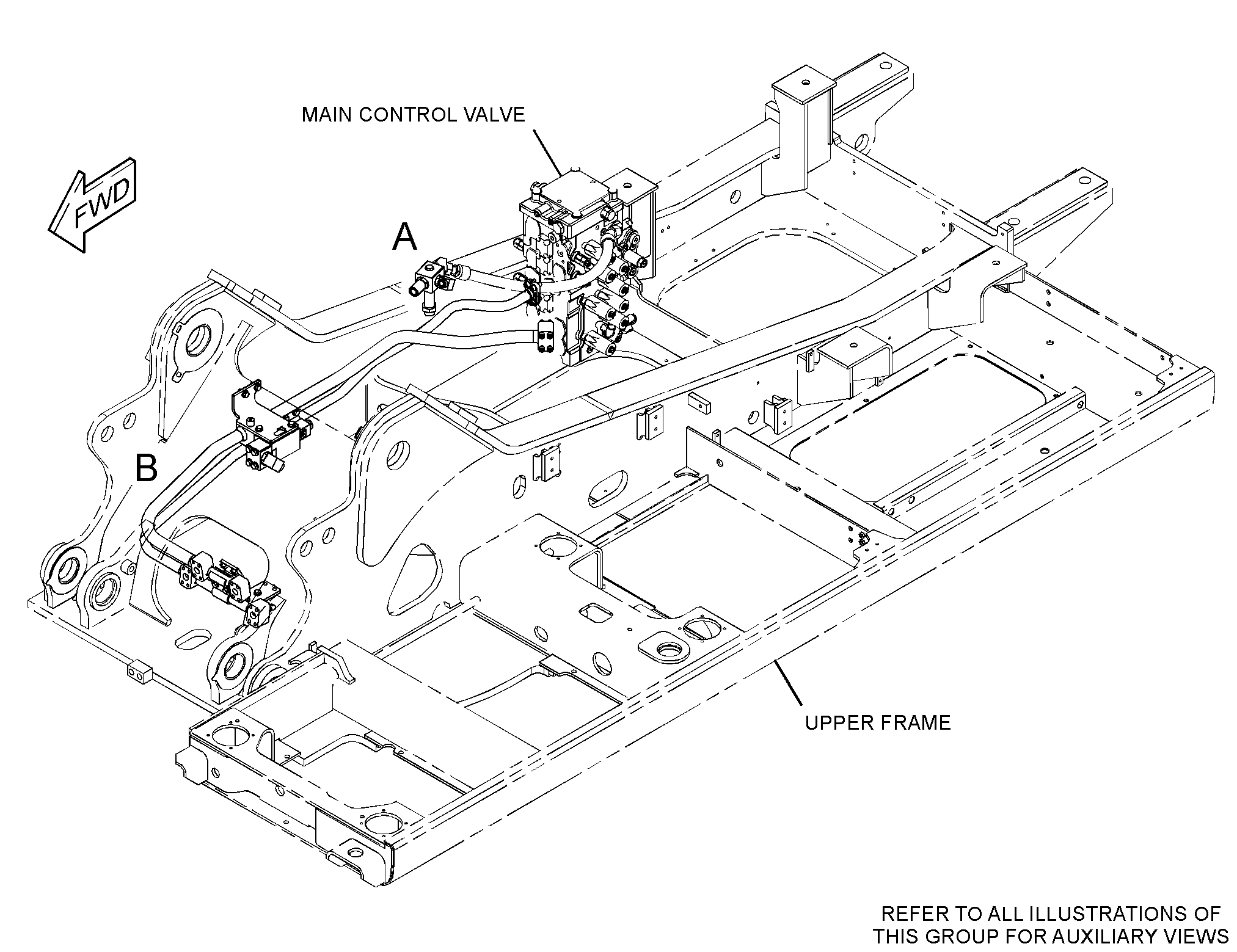

325-9195 LINES GP-BOOM CYLINDERS/N KCS1-UP; LJY1-UP
Group No: 325-9195 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1087550 | 1 CLIP | 2 | |
| 1153407 | 2 BOLT (M12X1.75X105-MM) | 4 | |
| 8T6868 | 3 BOLT (M12X1.75X80-MM) | 4 | |
| 1992012 | 4 PLATE | 1 | |
| 2181125 | 5 BLOCK | 1 | |
| 2887691 | 6 CLIP AS | 1 | |
| 2970371 | 7 VALVE GP-SOLENOID (CHECK)(BOOM FLOAT) | 1 | |
| 3259204 | 8 SUPPORT AS | 1 | |
| 3259206 | 9 TUBE AS | 1 | |
| 3259208 | 10 TUBE AS | 1 | |
| 3386971 | 11 SENSOR GP-PRESSURE (HYDRAULIC OIL)(BOOM FLOAT) | 1 | |
| 3507249 | 12 SUPPORT AS | 1 | |
| 3618942 | 13 TUBE AS | 1 | |
| 3632460 | 14 BLOCK | 1 | |
| 1017402 | 15 BOLT-SOCKET HEAD (M12X1.75X30-MM) | 4 | |
| 1053489 | 16 BOLT-SOCKET HEAD (M12X1.75X80-MM) | 4 | |
| 1488330 | 17 CONNECTOR AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T0198 | CONNECTOR | 1 | |
| 1488347 | 18 ELBOW AS | 1 | |
| 6V9007 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 1488355 | 19 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9005 | ELBOW | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488357 | 20 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488378 | 21 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488411 | 22 PLUG AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 1P3703 | 23 SEAL-RECTANGULAR | 1 | |
| 1P3704 | 24 SEAL-RECTANGULAR | 4 | |
| 1P3705 | 25 SEAL-RECTANGULAR | 1 | |
| 7M8485 | 26 SEAL-O-RING | 1 | |
| 7Y3732 | 27 CLIP | 1 | |
| 8T4139 | 28 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4183 | 29 BOLT (M12X1.75X40-MM) | 6 | |
| 8T4223 | 30 WASHER-HARD (13.5X25.5X3-MM THK) | 18 | |
| 8T4910 | 31 BOLT (M12X1.75X60-MM) | 2 | |
| 8T4956 | 32 BOLT (M12X1.75X35-MM) | 2 |
