System And Components

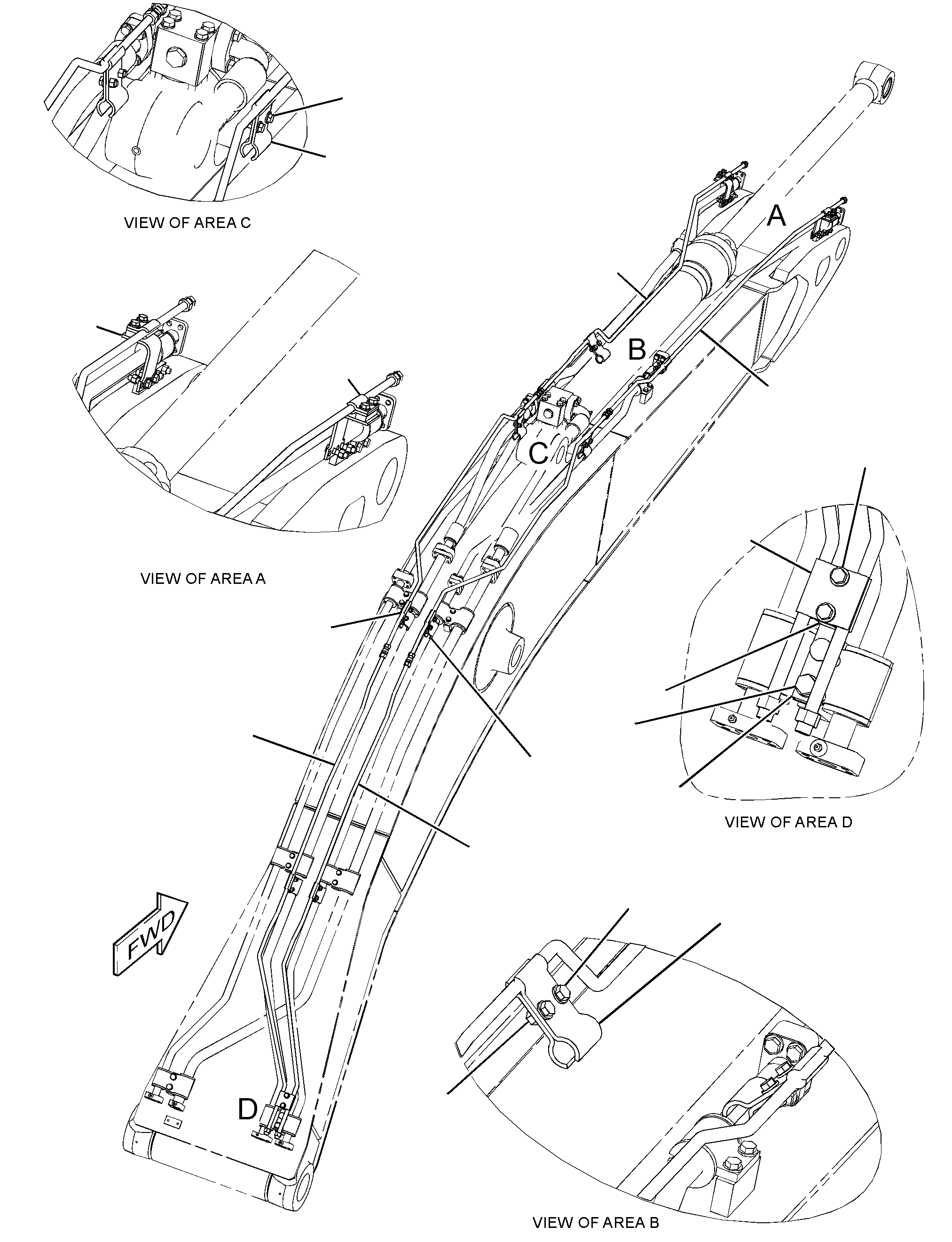

318-5932 LINES GP-COUPLER -REACH BOOMS/N KCS1-UP; LJY1-UP
Group No: 318-5932 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4471708 | 1 BOLT (M16X2X80-MM) | 2 | |
| 8T4139 | 2 BOLT (M12X1.75X30-MM) | 16 | |
| 8T4184 | 3 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4648 | 4 BOLT (M12X1.75X70-MM) | 2 | |
| 8T4956 | 5 BOLT (M12X1.75X35-MM) | 4 | |
| 2536444 | 6 CLIP | 6 | |
| 3253954 | 7 CLIP | 2 | |
| 1353980 | 8 CLIP | 2 | |
| 5Q4212 | 9 CLIP | 4 | |
| 8T4244 | 10 NUT (M12X1.75-THD) | 4 | |
| 1795253 | 11 PLATE | 1 | |
| 1936662 | 12 PLATE | 1 | |
| 6V8398 | 13 SEAL-O-RING | 4 | |
| 2536635 | 14 SUPPORT AS | 2 | |
| 3253955 | 15 TUBE AS | 1 | |
| 3253958 | 16 TUBE AS | 1 | |
| 3253961 | 17 LINES GP-BOOM | 1 | |
| 3253970 | 18 LINES GP-BOOM | 1 | |
| 4512175 | 19 WASHER-HARD (17.5X30X3.5-MM THK) | 2 | |
| 8T4223 | 20 WASHER-HARD (13.5X25.5X3-MM THK) | 26 | |
| 6V8397 | 21 SEAL-O-RING | 2 | |
| 4684636 | 22 CLIP AS | 2 | |
| 4684633 | 23 CLIP AS | 6 |
