System And Components

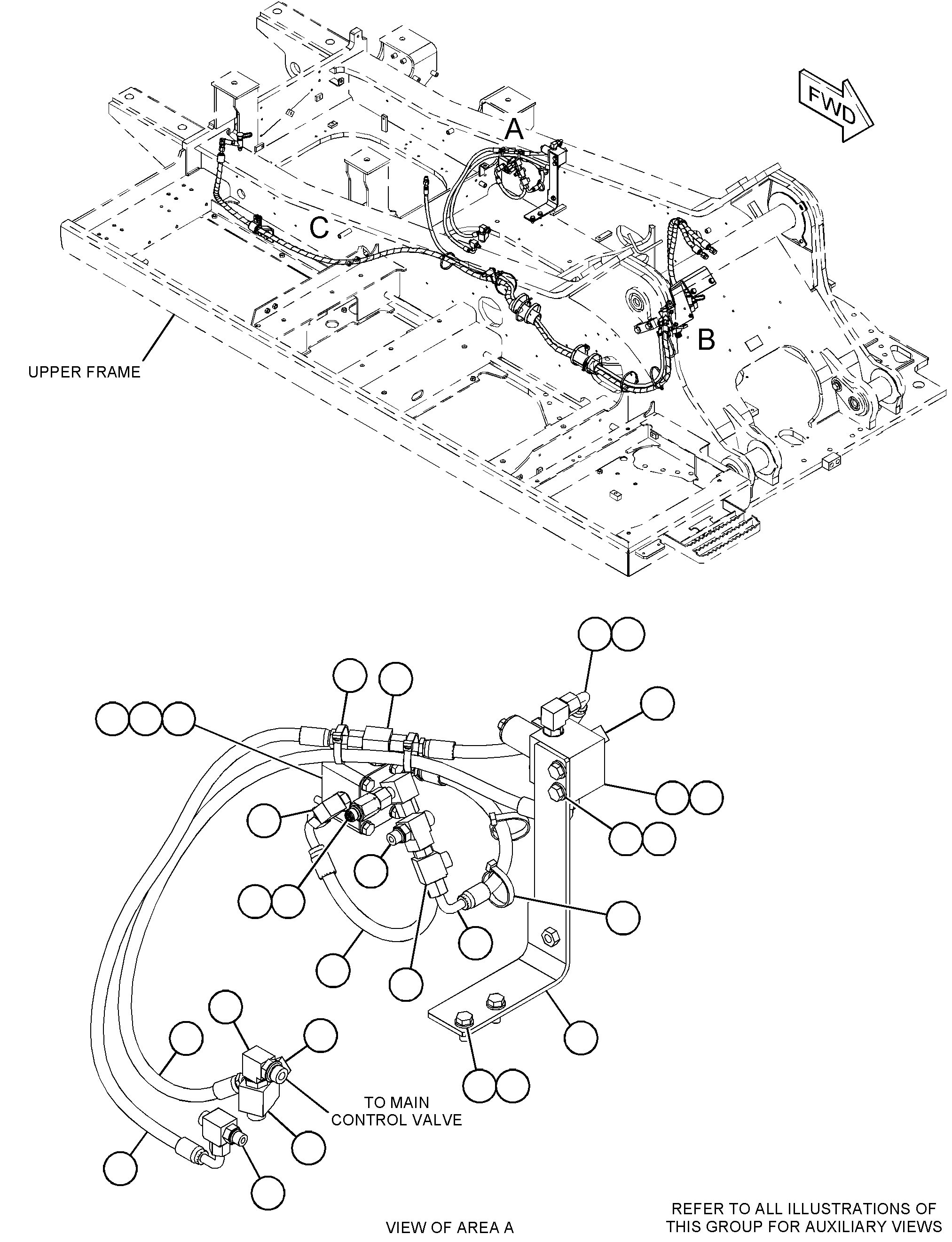

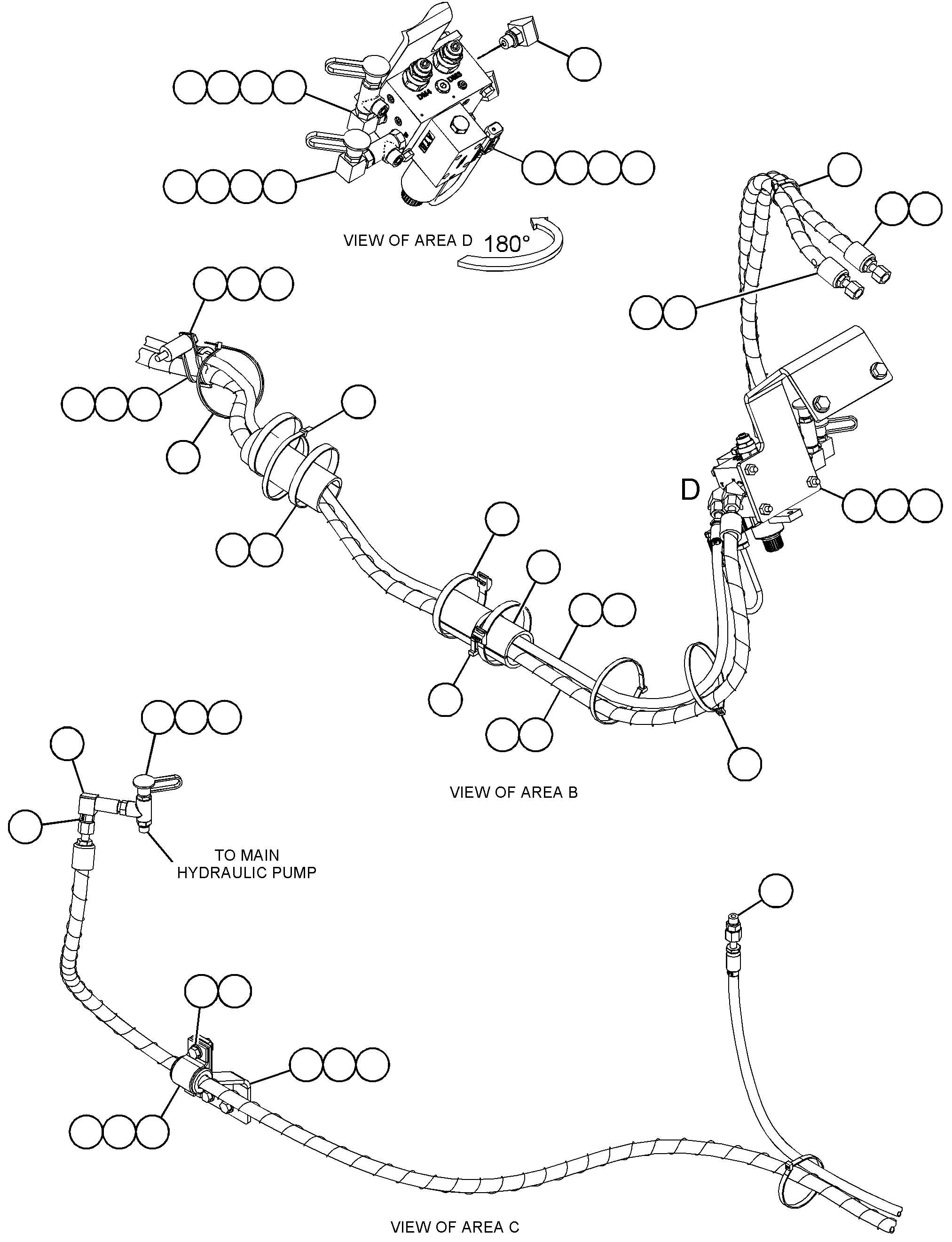

383-9349 LINES GP-FRONT -UNIVERSAL QUICK COUPLERS/N KCS1-UP; LJY10001-UP
Group No: 383-9349 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I9521 | 1 BAND-MARKER (RED, L1) | 4 | |
| 4I9522 | 2 BAND-MARKER (YELLOW, L2) | 6 | |
| 4I9525 | 3 BAND-MARKER (ORANGE, R1) | 2 | |
| 7K1181 | 4 STRAP-CABLE | 11 | |
| 7Y8379 | 5 HOSE AS | 1 | |
| 1048903 | 6 GUARD | 2 | |
| 1110985 | 7 HOSE AS | 1 | |
| 1234750 | 8 VALVE AS-CHECK (QUICK COUPLER SOLENOID) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488420 | 9 TEE AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T6338 | TEE-O-RING PORT | 1 | |
| 1681968 | 10 TEE AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1266872 | TEE | 1 | |
| 2586749 | 11 VALVE GP-SOLENOID (QUICK COUPLER) | 1 | |
| 2852663 | 12 FITTING AS (QUICK DISCONNECT, MALE) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 2852664 | FITTING | 1 | |
| 3237894 | 13 VALVE GP-SOLENOID & PRESS REDC (BOOM LOWERING CONTROL) | 1 | |
| 3337097 | 14 HOSE AS | 1 | |
| 3394353 | 15 VALVE GP-CONTROL (QUICK COUPLER) | 1 | |
| 3515059 | 16 SUPPORT AS | 1 | |
| 3660926 | 17 HOSE AS | 1 | |
| 3660929 | 18 HOSE AS | 1 | |
| 3698367 | 19 VALVE GP-CHECK (SLOW RETURN) | 1 | |
| 3710128 | 20 HOSE AS | 1 | |
| 3839558 | 21 HOSE AS | 1 | |
| 3839559 | 22 SUPPORT AS | 1 | |
| 3853039 | 23 HOSE AS | 1 | |
| 3880159 | 24 HOSE AS | 1 | |
| 4520142 | 25 SUPPORT AS | 1 | |
| 1488336 | 26 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488353 | 27 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488367 | 28 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1488378 | 29 ELBOW AS | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 30 PLUG AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488435 | 31 TEE AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1488439 | 32 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8774 | TEE | 1 | |
| 1504027 | 33 TEE AS | 1 | |
| 3E2310 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1645546 | 34 TEE AS | 2 | |
| 3E7410 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1645567 | 35 COUPLER AS-QUICK DISCONNECT (MALE) | 3 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1646874 | 36 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | FITTING | 1 | |
| 1942903 | 37 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 8T0119 | ELBOW | 1 | |
| 2751442 | 38 CLIP (TAB) | 1 | |
| 2751443 | 39 CLIP (SLOT) | 1 | |
| 3334609 | 40 GROMMET | 1 | |
| 4I7889 | 41 SPACER (11X25X45-MM THK) | 1 | |
| 5P5148 | 42 STRAP-CABLE | 4 | |
| 5P7464 | 43 CLIP (SLOT) | 1 | |
| 5P7465 | 44 CLIP (TAB) | 1 | |
| 6V0852 | 45 CAP-DUST | 3 | |
| 6V1249 | 46 GROMMET (22-MM ID) | 1 | |
| 8T3647 | 47 BOLT (M8X1.25X80-MM) | 4 | |
| 8T4121 | 48 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4136 | 49 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4137 | 50 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4139 | 51 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4177 | 52 BOLT (M8X1.25X90-MM) | 3 | |
| 8T4195 | 53 BOLT (M10X1.5X30-MM) | 3 | |
| 8T4223 | 54 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 55 WASHER-HARD (8.8X16X2-MM THK) | 7 | |
| 8T5005 | 56 BOLT (M10X1.5X70-MM) | 1 |
