System And Components

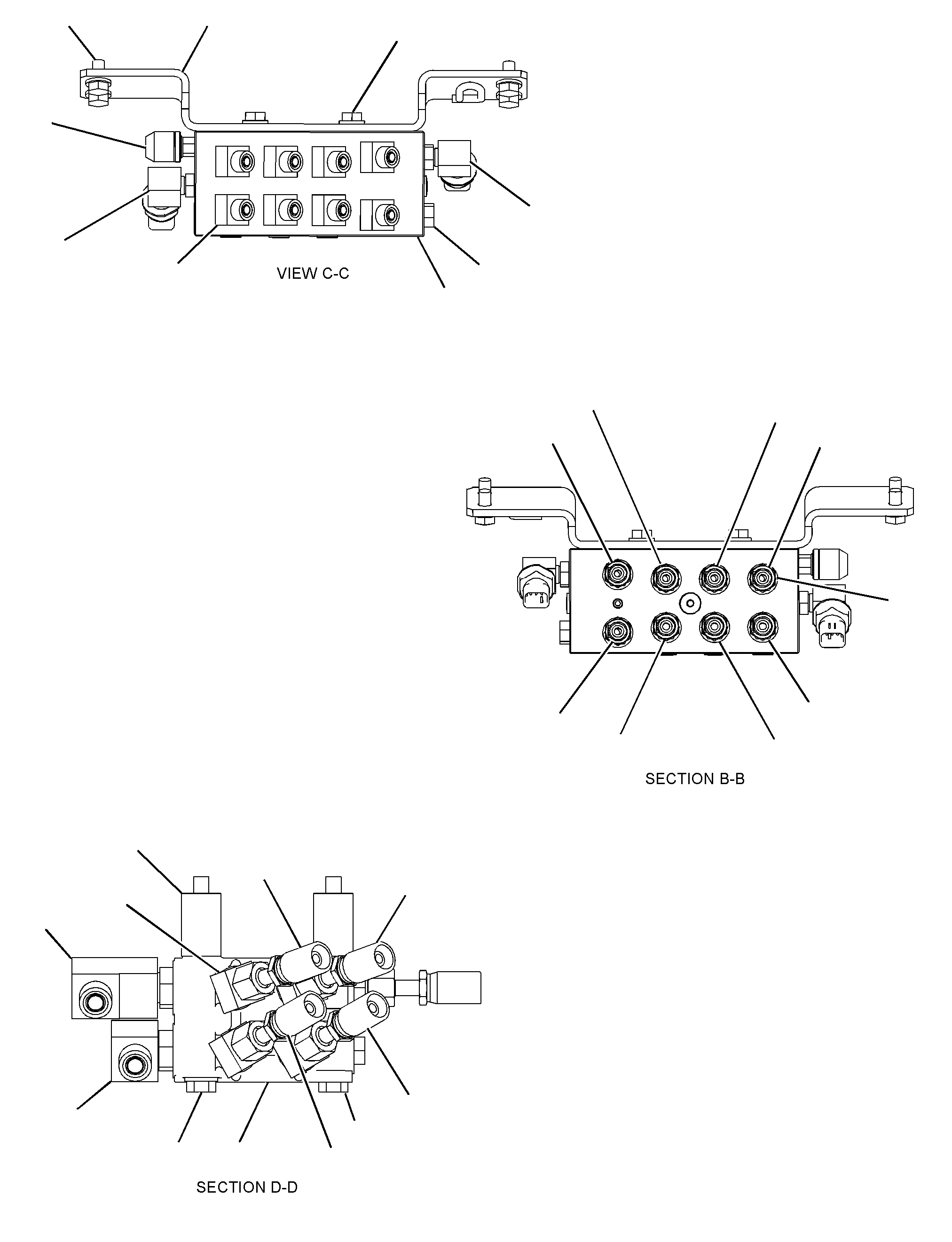

317-4784 LINES GP-PILOT -JOYSTICK, PEDALSS/N KCS1-UP; LJY1-UP
Group No: 317-4784 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I9521 | 1 BAND-MARKER (RED, L1) | 2 | |
| 4I9522 | 2 BAND-MARKER (YELLOW, L2) | 2 | |
| 4I9523 | 3 BAND-MARKER (BLUE, L3) | 2 | |
| 4I9524 | 4 BAND-MARKER (BROWN, L4) | 2 | |
| 4I9525 | 5 BAND-MARKER (ORANGE, R1) | 2 | |
| 4I9526 | 6 BAND-MARKER (WHITE, R2) | 2 | |
| 4I9527 | 7 BAND-MARKER (GREEN, R3) | 2 | |
| 4I9528 | 8 BAND-MARKER (PURPLE, R4) | 2 | |
| 7K1181 | 9 STRAP-CABLE | 6 | |
| 1335813 | 10 BAND-MARKER (GRAY, P) | 4 | |
| 1645628 | 11 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1076631 | CONNECTOR-FILTER | 1 | |
| 1646874 | 12 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | FITTING | 1 | |
| 1689759 | 13 BLOCK | 1 | |
| 3922185 | 14 SUPPORT | 1 | |
| 2866192 | 15 SPACER (11X40X25-MM THK) | 2 | |
| 3194407 | 16 SWITCH AS-PRESSURE (TRAVEL, RH) | 1 | |
| 3194407 | 16A SWITCH AS-PRESSURE (TRAVEL, LH) | 1 | |
| 3194407 | 16B SWITCH AS-PRESSURE (IMPLEMENT) | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 3237560 | 17 VALVE GP-SHUTTLE | 1 | |
| 3698502 | 18 VALVE GP-PILOT (TRAVEL, SHUTTLE) | 1 | |
| 3259160 | 19 SUPPORT | 1 | |
| 3259162 | 20 SUPPORT AS | 1 | |
| 3259164 | 21 HOSE AS | 3 | |
| 3259165 | 22 HOSE AS | 1 | |
| 3259166 | 23 HOSE AS | 2 | |
| 3259167 | 24 HOSE AS | 2 | |
| 3259170 | 25 HOSE AS | 1 | |
| 3259173 | 26 HOSE AS | 2 | |
| 3296225 | 27 HOSE AS | 1 | |
| 3302417 | 28 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1421585 | CONNECTOR | 1 | |
| 3372712 | 29 HOSE AS | 2 | |
| 3386970 | 30 SENSOR GP-PRESSURE (SWING CONTROL) | 1 | |
| 3386970 | 30A SENSOR GP-PRESSURE (BOOM DOWN) | 1 | |
| 1488336 | 31 CONNECTOR AS | 20 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488346 | 32 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T1686 | ADAPTER-ELBOW | 1 | |
| 1488353 | 33 ELBOW AS | 12 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488364 | 34 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 1488378 | 35 ELBOW AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 36 PLUG AS | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1503036 | 37 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1905 | ELBOW | 1 | |
| 8T4121 | 38 WASHER-HARD (11X21X2.5-MM THK) | 18 | |
| 8T4136 | 39 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4137 | 40 BOLT (M10X1.5X20-MM) | 10 | |
| 8T5436 | 41 BOLT (M10X1.5X130-MM) | 2 | |
| 8T4191 | 42 BOLT (M10X1.5X16-MM) | 2 |
