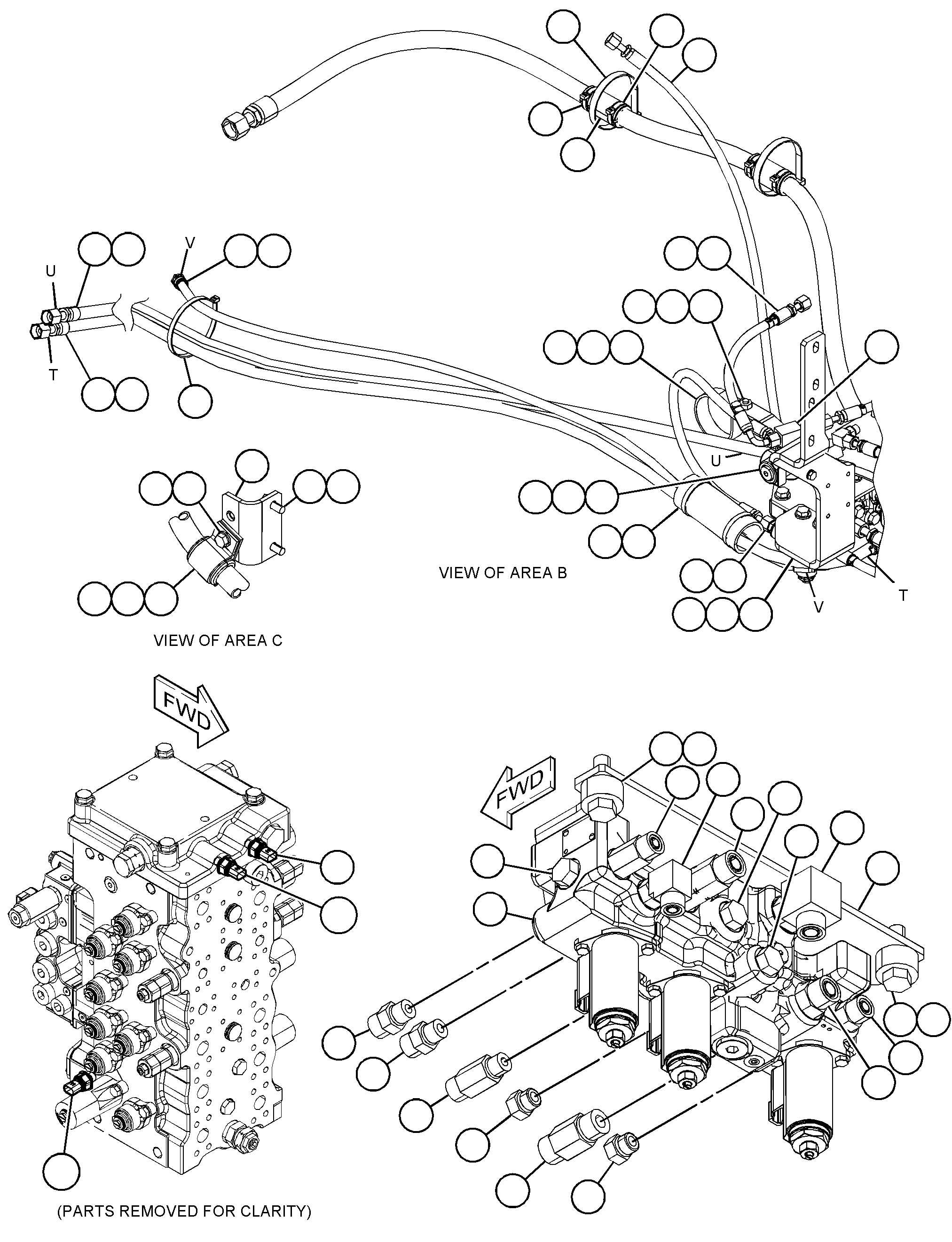

System And Components
383-9329 LINES GP-PILOTS/N KCS1-UP; LJY1-UP
Group No: 383-9329 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I1025 | 1 HOSE AS | 1 | |
| 4I1704 | 2 HOSE AS | 1 | |
| 4I9522 | 3 BAND-MARKER (YELLOW, L2) | 2 | |
| 4I9523 | 4 BAND-MARKER (BLUE, L3) | 6 | |
| 4I9524 | 5 BAND-MARKER (BROWN, L4) | 2 | |
| 4I9525 | 6 BAND-MARKER (ORANGE, R1) | 2 | |
| 4I9528 | 7 BAND-MARKER (PURPLE, R4) | 2 | |
| 0874587 | 8 GROMMET | 1 | |
| 0875777 | 9 HOSE AS | 1 | |
| 1048903 | 10 GUARD | 1 | |
| 1158645 | 11 GUARD | 1 | |
| 1216366 | 12 HOSE AS | 1 | |
| 1335813 | 13 BAND-MARKER (GRAY, P) | 6 | |
| 1991965 | 14 HOSE AS | 1 | |
| 2155037 | 15 MANIFOLD GP-CONTROL (PILOT OIL SUPPLY) | 1 | |
| 2362851 | 16 HOSE AS | 1 | |
| 2724143 | 17 HOSE AS | 1 | |
| 2721818 | 18 HOSE | 1 | |
| 2786627 | 19 HOSE AS | 1 | |
| 2827095 | 20 HOSE AS | 1 | |
| 2827106 | 21 GROMMET | 2 | |
| 4544357 | 22 SUPPORT AS | 1 | |
| 3386970 | 23 SENSOR GP-PRESSURE (NEGATIVE F CONT, DRIVE PUMP) | 1 | |
| 3386970 | 23A SENSOR GP-PRESSURE (NEGATIVE F CONT, DRIVEN PUMP) | 1 | |
| 3386971 | 24 SENSOR GP-PRESSURE (HYDRAULIC OIL)(PUMP 1) | 1 | |
| 3386971 | 24A SENSOR GP-PRESSURE (HYDRAULIC OIL)(PUMP 2) | 1 | |
| 3507358 | 25 PLATE | 1 | |
| 3527065 | 26 VALVE GP-PRESSURE REDUCING (BOOM PRIORITY) | 1 | |
| 3598467 | 27 SUPPORT AS | 1 | |
| 3598469 | 28 HOSE AS | 1 | |
| 3636139 | 29 ADAPTER AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 3636122 | ADAPTER-FILTER | 1 | |
| 3839279 | 30 HOSE AS | 1 | |
| 3852985 | 31 HOSE AS | 1 | |
| 3853081 | 32 SUPPORT | 1 | |
| 1488336 | 33 CONNECTOR AS | 4 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488338 | 34 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T0075 | CONNECTOR | 1 | |
| 1488340 | 35 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488364 | 36 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 1488378 | 37 ELBOW AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 38 PLUG AS | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488439 | 40 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8774 | TEE | 1 | |
| 1488443 | 41 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 7X2459 | ADAPTER-TEE | 1 | |
| 1503036 | 42 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1905 | ELBOW | 1 | |
| 1645608 | 43 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T1687 | CONNECTOR | 1 | |
| 1646874 | 44 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | FITTING | 1 | |
| 2042281 | 45 STRAP-CABLE | 2 | |
| 2622603 | 46 SPACER (13.5X30X16-MM THK) | 4 | |
| 5P7464 | 47 CLIP (SLOT) | 1 | |
| 5P7465 | 48 CLIP (TAB) | 1 | |
| 1845394 | 49 CLIP (LOOP) | 1 | |
| 7K1181 | 50 STRAP-CABLE | 14 | |
| 8T2920 | 51 GROMMET (27-MM ID) | 1 | |
| 8T4121 | 52 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4136 | 53 BOLT (M10X1.5X25-MM) | 5 | |
| 8T4139 | 54 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4183 | 55 BOLT (M12X1.75X40-MM) | 4 | |
| 8T4189 | 56 BOLT (M8X1.25X20-MM) | 2 | |
| 8T4192 | 57 BOLT (M12X1.75X25-MM) | 3 | |
| 8T4195 | 58 BOLT (M10X1.5X30-MM) | 1 | |
| 8T4223 | 59 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 8T4224 | 60 WASHER-HARD (8.8X16X2-MM THK) | 2 |
