System And Components

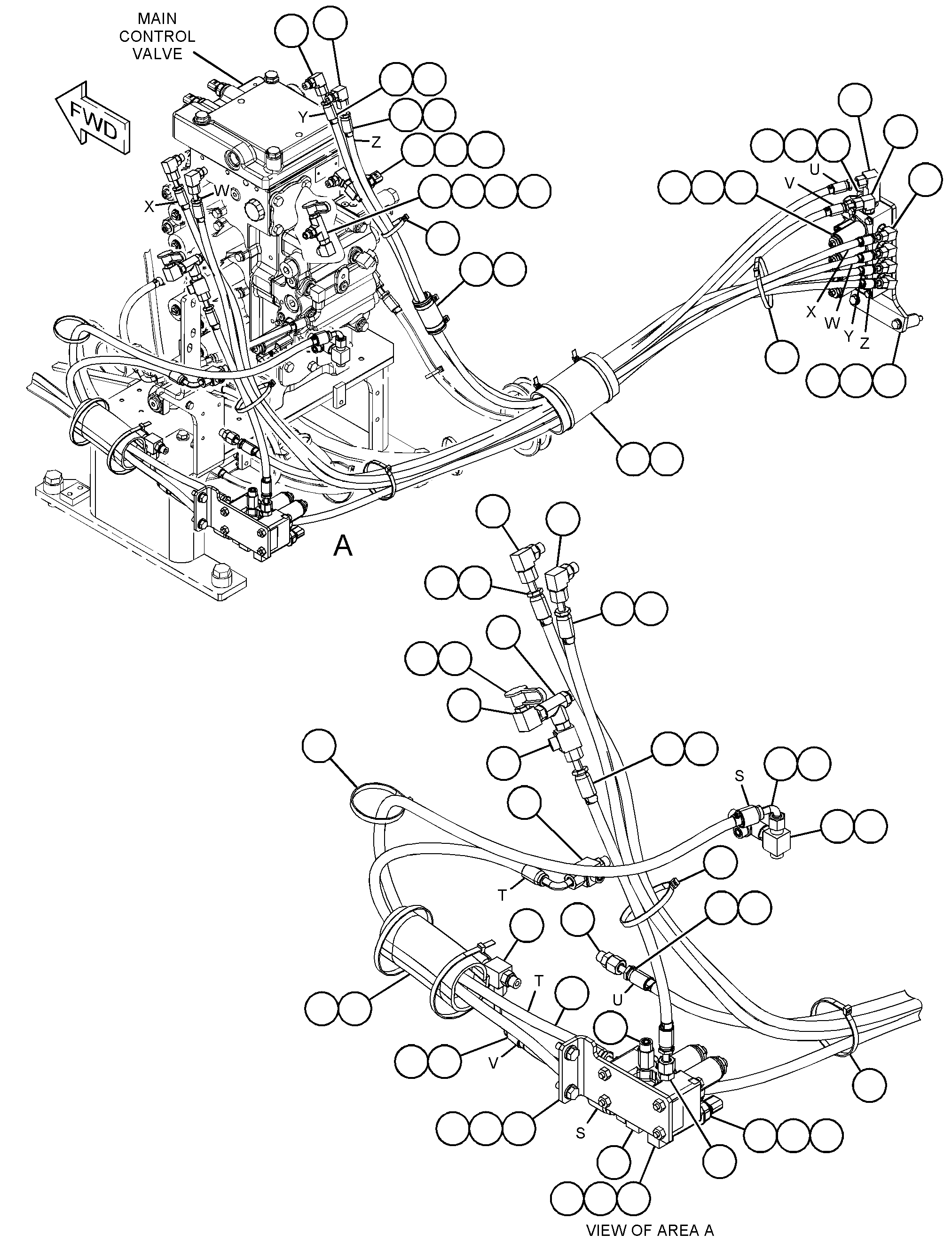

383-9345 LINES GP-PILOT -CMB FCTN, ELEC CONT, ELEC RLFS/N KCS1-UP; LJY1-UP
Group No: 383-9345 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I1754 | 1 HOSE AS | 1 | |
| 4I5933 | 2 HOSE AS | 1 | |
| 4I9521 | 3 BAND-MARKER (RED, L1) | 2 | |
| 4I9522 | 4 BAND-MARKER (YELLOW, L2) | 2 | |
| 4I9523 | 5 BAND-MARKER (BLUE, L3) | 2 | |
| 4I9524 | 6 BAND-MARKER (BROWN, L4) | 2 | |
| 4I9525 | 7 BAND-MARKER (ORANGE, R1) | 2 | |
| 4I9526 | 8 BAND-MARKER (WHITE, R2) | 2 | |
| 4I9527 | 9 BAND-MARKER (GREEN, R3) | 2 | |
| 7Y4199 | 10 HOSE AS | 2 | |
| 1158645 | 11 GUARD | 1 | |
| 1241008 | 12 GUARD | 1 | |
| 1335813 | 13 BAND-MARKER (GRAY, P) | 2 | |
| 1503058 | 14 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 8C8431 | TEE | 1 | |
| 1875671 | 15 HOSE AS | 1 | |
| 1926775 | 16 HOSE AS | 1 | |
| 2597429 | 17 VALVE GP-SOLENOID (WORK TOOL, 4-FUNCTION) | 1 | |
| 2786795 | 18 HOSE AS | ||
| 2827106 | 19 GROMMET | 1 | |
| 3029635 | 20 HOSE AS | 1 | |
| 3350223 | 21 VALVE GP-SOLENOID (BOOM/STICK REGENERATION) | 1 | |
| 3386970 | 22 SENSOR GP-PRESSURE (STICK IN) | 1 | |
| 3386970 | 22A SENSOR GP-PRESSURE (STICK OUT) | 1 | |
| 3402965 | 23 HOSE AS | 1 | |
| 3424178 | 24 SUPPORT AS | 1 | |
| 3636134 | 25 ADAPTER AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 3543864 | ADAPTER-FILTER | 1 | |
| 4191172 | 26 SUPPORT AS | 1 | |
| 1488336 | 27 CONNECTOR AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488338 | 28 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T0075 | CONNECTOR | 1 | |
| 1488378 | 29 ELBOW AS | 11 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488435 | 30 TEE AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1488439 | 31 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8774 | TEE | 1 | |
| 1504027 | 32 TEE AS | 1 | |
| 3E2310 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1645546 | 33 TEE AS | 1 | |
| 3E7410 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1645567 | 34 COUPLER AS-QUICK DISCONNECT (MALE) | 6 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1646874 | 35 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 7 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | FITTING | 1 | |
| 1681968 | 36 TEE AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1266872 | TEE | 1 | |
| 6V0852 | 37 CAP-DUST | 6 | |
| 7K1181 | 38 STRAP-CABLE | 11 | |
| 8T3647 | 39 BOLT (M8X1.25X80-MM) | 4 | |
| 8T4121 | 40 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4136 | 41 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4224 | 42 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 8T5005 | 43 BOLT (M10X1.5X70-MM) | 2 | |
| 8T6870 | 44 BOLT (M8X1.25X70-MM) | 4 |
