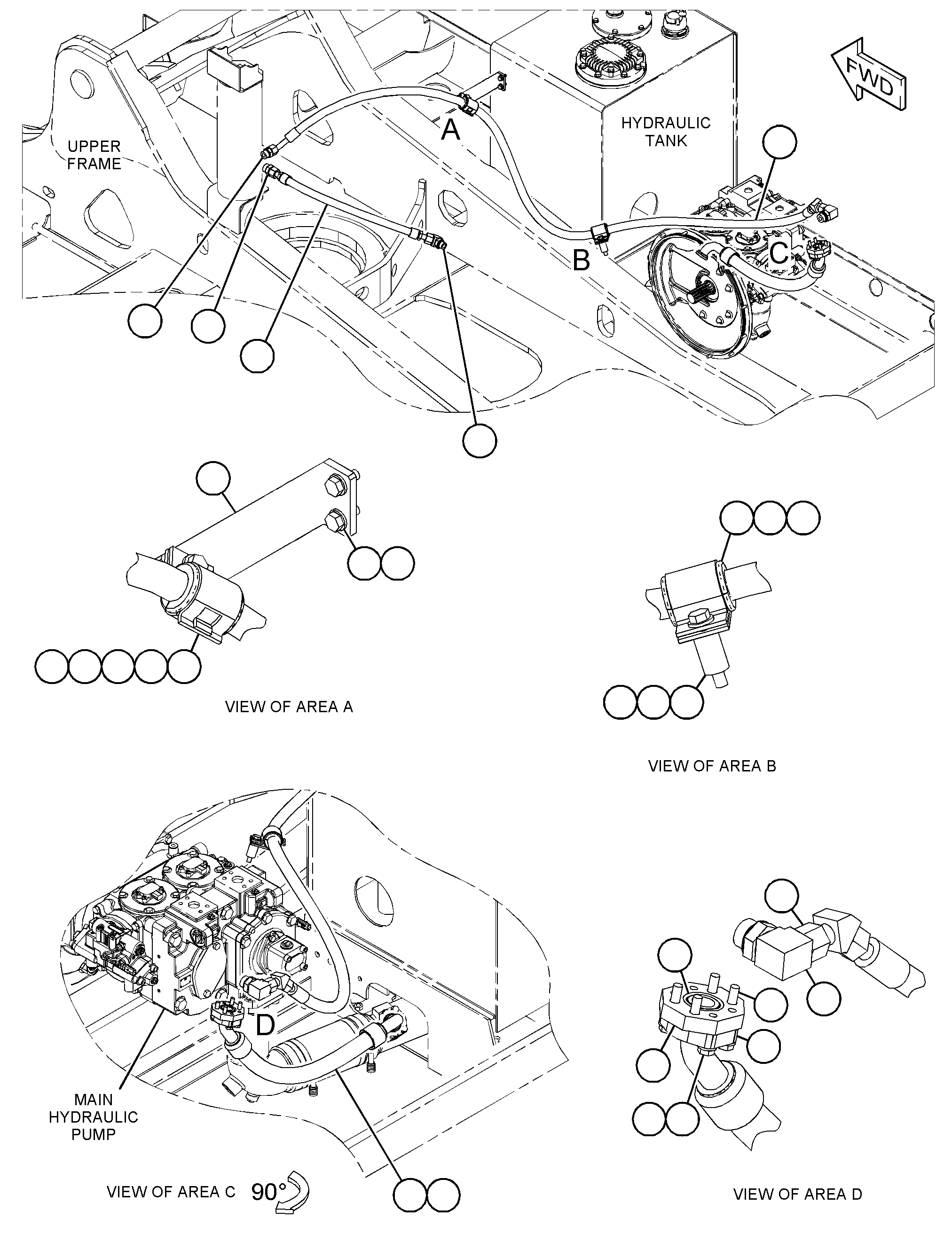

383-9346 LINES GP-PUMP -MEDIUM PRESSURES/N KCS1-UP; LJY1-UP
Group No: 383-9346 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1335770 | 1 HOSE AS | 1 | |
| 3713064 | 2 SUPPORT AS | 1 | |
| 3853004 | 3 SPACER (14X25X40-MM THK) | 1 | |
| 4194259 | 4 HOSE AS | 1 | |
| 4194262 | 5 FLANGE | 1 | |
| 4520728 | 6 HOSE AS | 1 | |
| 1053484 | 7 BOLT-SOCKET HEAD (M10X1.5X25-MM) | 4 | |
| 1488339 | 8 CONNECTOR AS | 1 | |
| 6V8716 | CONNECTOR (STRAIGHT) | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488360 | 9 ELBOW AS | 1 | |
| 6V9182 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1536237 | 10 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9004 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1654927 | 11 CONNECTOR AS | 1 | |
| 2T2991 | CONNECTOR | 1 | |
| 4K1388 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1716723 | 12 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8T8899 | ELBOW | 1 | |
| 1P4578 | 13 FLANGE-HALF | 2 | |
| 4J0522 | 14 SEAL-O-RING | 3 | |
| 5P7466 | 15 CLIP (SLOT) | 2 | |
| 5P7467 | 16 CLIP (TAB) | 2 | |
| 5P8112 | 17 GROMMET | 2 | |
| 8T4121 | 18 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4136 | 19 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4139 | 20 BOLT (M12X1.75X30-MM) | 1 | |
| 8T4196 | 21 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4223 | 22 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4648 | 23 BOLT (M12X1.75X70-MM) | 1 |
