System And Components

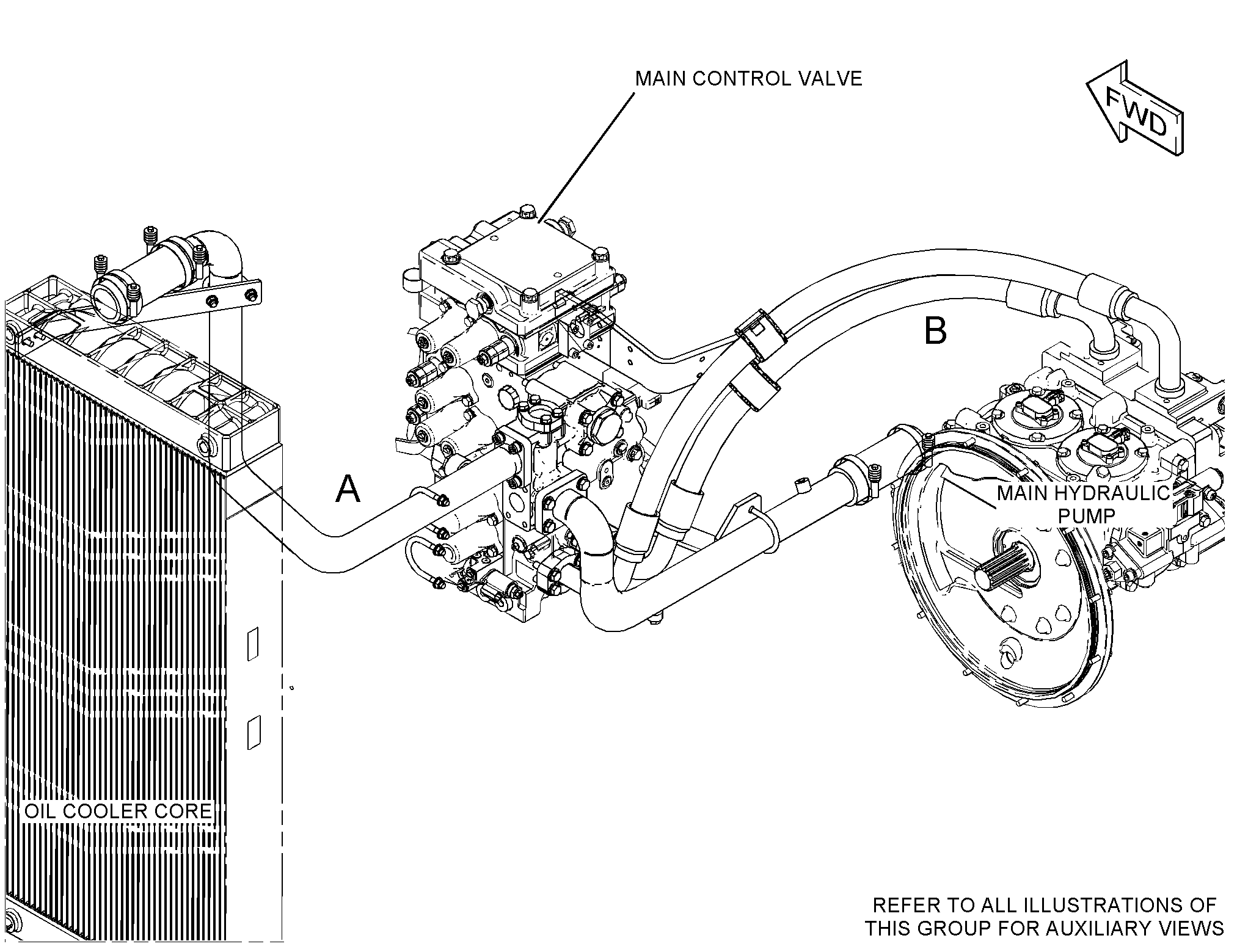

383-9327 LINES GP-RETURN -REARS/N KCS1-UP; LJY1-UP
Group No: 383-9327 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2270428 | 1 HOSE | 1 | |
| 2366339 | 2 HOSE | 1 | |
| 3527064 | 3 CAP | 1 | |
| 3816053 | 4 PIPE AS | 1 | |
| 3839416 | 5 SUPPORT AS | 1 | |
| 3852988 | 6 SUPPORT AS | 1 | |
| 3852991 | 7 HOSE AS | 1 | |
| 3852994 | 8 HOSE AS | 1 | |
| 3853098 | 9 SUPPORT | 1 | |
| 4553961 | 10 VALVE GP-CHECK (RETURN) | 1 | |
| 0951613 | SEAL-O-RING | 2 | |
| 4821845 | 11 PIPE GP-RETURN | 1 | |
| 0964883 | 12 LOCKNUT (M10X1.5-THD) | 8 | |
| 1440367 | 13 CLAMP-HOSE | 6 | |
| 1488407 | 14 PLUG AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488408 | 15 PLUG AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 9S4183 | PLUG (1-1/16-12-THD) | 1 | |
| 1P3704 | 16 SEAL-RECTANGULAR | 4 | |
| 1P4578 | 17 FLANGE-HALF | 2 | |
| 1P5767 | 18 FLANGE-HALF | 4 | |
| 4J0522 | 19 SEAL-O-RING | 1 | |
| 4J0524 | 20 SEAL-O-RING | 1 | |
| 5H4020 | 21 COVER | 1 | |
| 6J2680 | 22 SEAL-O-RING | 1 | |
| 6V1572 | 23 CLIP (SLOT) | 2 | |
| 6V1573 | 24 CLIP (TAB) | 2 | |
| 6V1875 | 25 GROMMET | 2 | |
| 7Y5247 | 26 U-BOLT (M10X1.5-THD) | 4 | |
| 8T4121 | 27 WASHER-HARD (11X21X2.5-MM THK) | 16 | |
| 8T4136 | 28 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4139 | 29 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4182 | 30 BOLT (M10X1.5X45-MM) | 2 | |
| 8T4183 | 31 BOLT (M12X1.75X40-MM) | 4 | |
| 8T4186 | 32 BOLT (M10X1.5X40-MM) | 4 | |
| 8T4194 | 33 BOLT (M12X1.75X50-MM) | 8 | |
| 8T4223 | 34 WASHER-HARD (13.5X25.5X3-MM THK) | 20 | |
| 8T4956 | 35 BOLT (M12X1.75X35-MM) | 2 | |
| 8T7930 | 36 BOLT (M12X1.75X160-MM) | 4 |
