System And Components

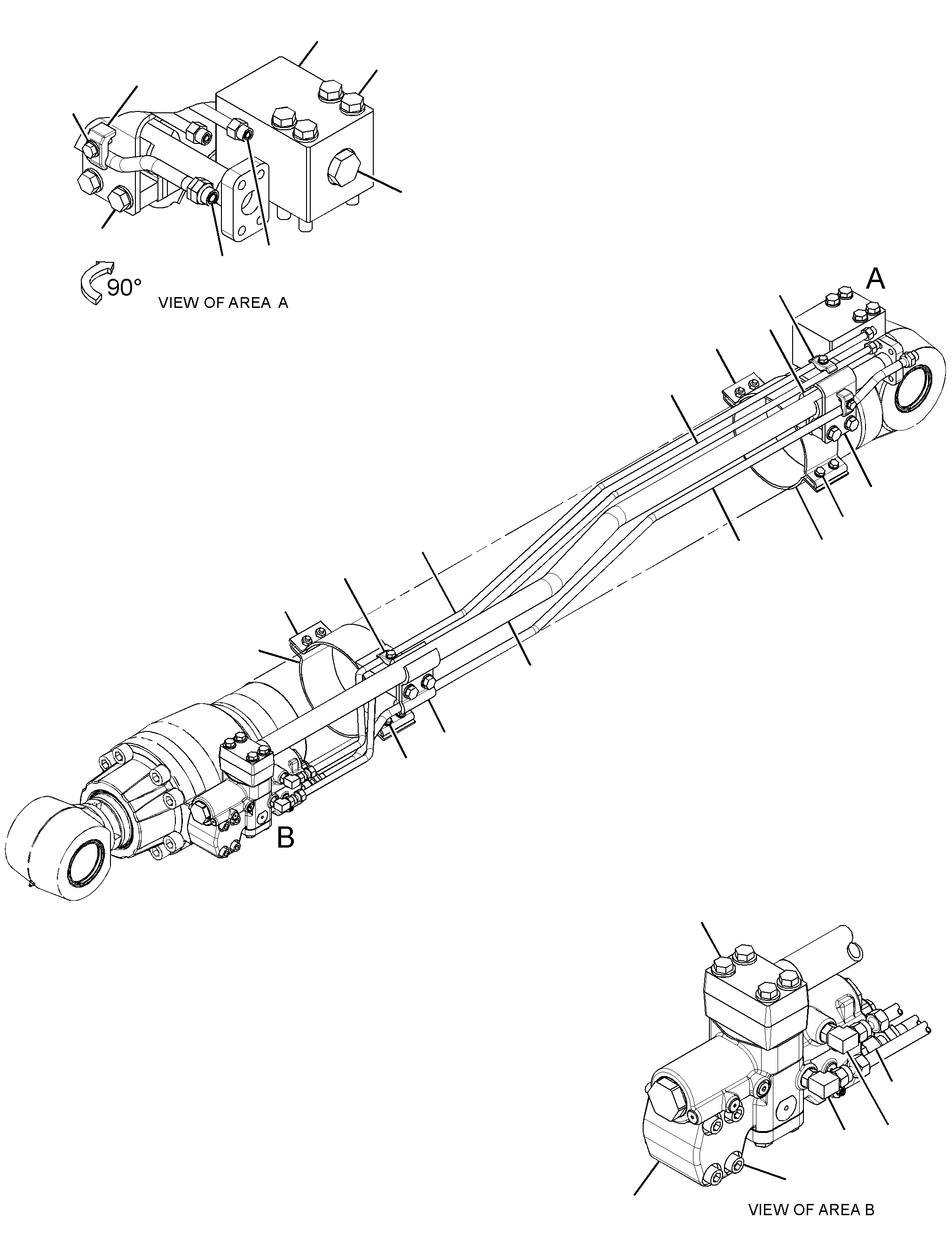

356-8128 LINES GP-STICK CYLINDER -STICK LOAD CONTROLS/N KCS1-UP; LJY1-UP
Group No: 356-8128 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0931290 | 1 CLAMP | 1 | |
| 0931294 | 2 CLAMP | 2 | |
| 4655193 | 3 SUPPORT AS | 2 | |
| 1240909 | 4 CLIP | 2 | |
| 2166515 | 5 CLIP | 2 | |
| 3709352 | 6 BLOCK | 1 | |
| 2851768 | 7 VALVE GP-LOAD CONTROL (STICK CYLINDER) | 1 | |
| 3254216 | 8 SUPPORT AS | 1 | |
| 4658768 | 9 SUPPORT AS | 1 | |
| 3568142 | 10 TUBE AS | 1 | |
| 3568143 | 11 PIPE AS | 1 | |
| 3568147 | 12 PIPE AS | 1 | |
| 3568157 | 13 PIPE AS | 1 | |
| 4658767 | 14 SUPPORT AS | 1 | |
| 1081782 | 15 BOLT-SOCKET HEAD (M12X1.75X90-MM) | 4 | |
| 1488328 | 16 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8633 | CONNECTOR | 1 | |
| 1488368 | 17 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8627 | ELBOW | 1 | |
| 3696858 | 18 PLUG AS | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 3636124 | PLUG | 1 | |
| 1P3705 | 19 SEAL-RECTANGULAR | 2 | |
| 1P3706 | 20 SEAL-RECTANGULAR | 1 | |
| 6V8397 | 21 SEAL-O-RING | 2 | |
| 6V8398 | 22 SEAL-O-RING | 1 | |
| 4471708 | 23 BOLT (M16X2X80-MM) | 2 | |
| 4532840 | 24 BOLT (M16X2X140-MM) | 4 | |
| 8T4186 | 26 BOLT (M10X1.5X40-MM) | 3 | |
| 4575821 | 27 BOLT (M10X1.5X35-MM) | 8 | |
| 8T4223 | 28 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T6868 | 29 BOLT (M12X1.75X80-MM) | 4 | |
| 4471709 | 30 BOLT (M16X2X45-MM) | 2 | |
| 4512175 | 31 WASHER-HARD (17.5X30X3.5-MM THK) | 8 | |
| 4533454 | 32 WASHER-HARD (11X21X2.5-MM THK) | 11 |
