System And Components

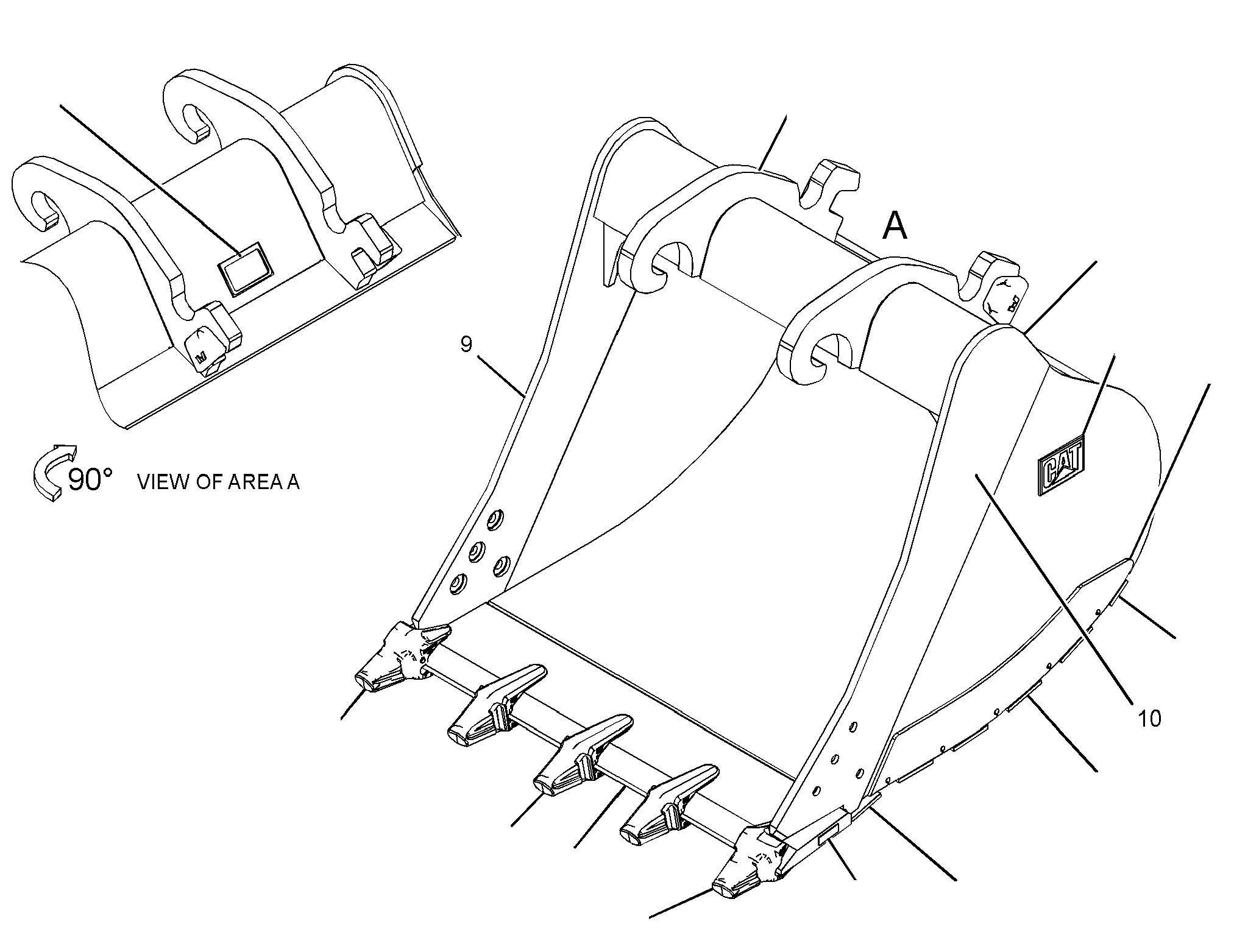

342-2264 BUCKET GP-GENERAL PURPOSE -DB-FAMILYS/N KCS1-UP; LJY1-UP
Group No: 342-2264 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2C9259 | 1 PLATE-IDENTIFICATION (CAT) | 2 | |
| 3422269 | 2 BUCKET AS-GENERAL PURPOSE | 1 | |
| 3483081 | 3 PLATE-WEAR | 2 | |
| 3483103 | 4 EDGE AS | 1 | |
| 8P9770 | 4A PLATE | 1 | |
| 2209104 | 4B ADAPTER-TIP (K-100, 2-STRAP, CENTER) | 3 | |
| 2322105 | 4C ADAPTER-TIP (K-100, 2-STRAP, RH) | 1 | |
| 2322106 | 4D ADAPTER-TIP (K-100, 2-STRAP, LH) | 1 | |
| 3483236 | 5 PLATE AS-HINGE | 1 | |
| 3615768 | 6 PLATE-WEAR | 1 | |
| 3615771 | 7 PLATE-WEAR | 4 | |
| 3615774 | 8 PLATE-WEAR | 1 | |
| 3324885 | 9 PLATE (LH) | 1 | |
| 3324886 | 10 PLATE (RH) | 1 | |
| 3125694 | 11 SETSCREW (1/4-20X0.25-IN) | 1 |
