System And Components

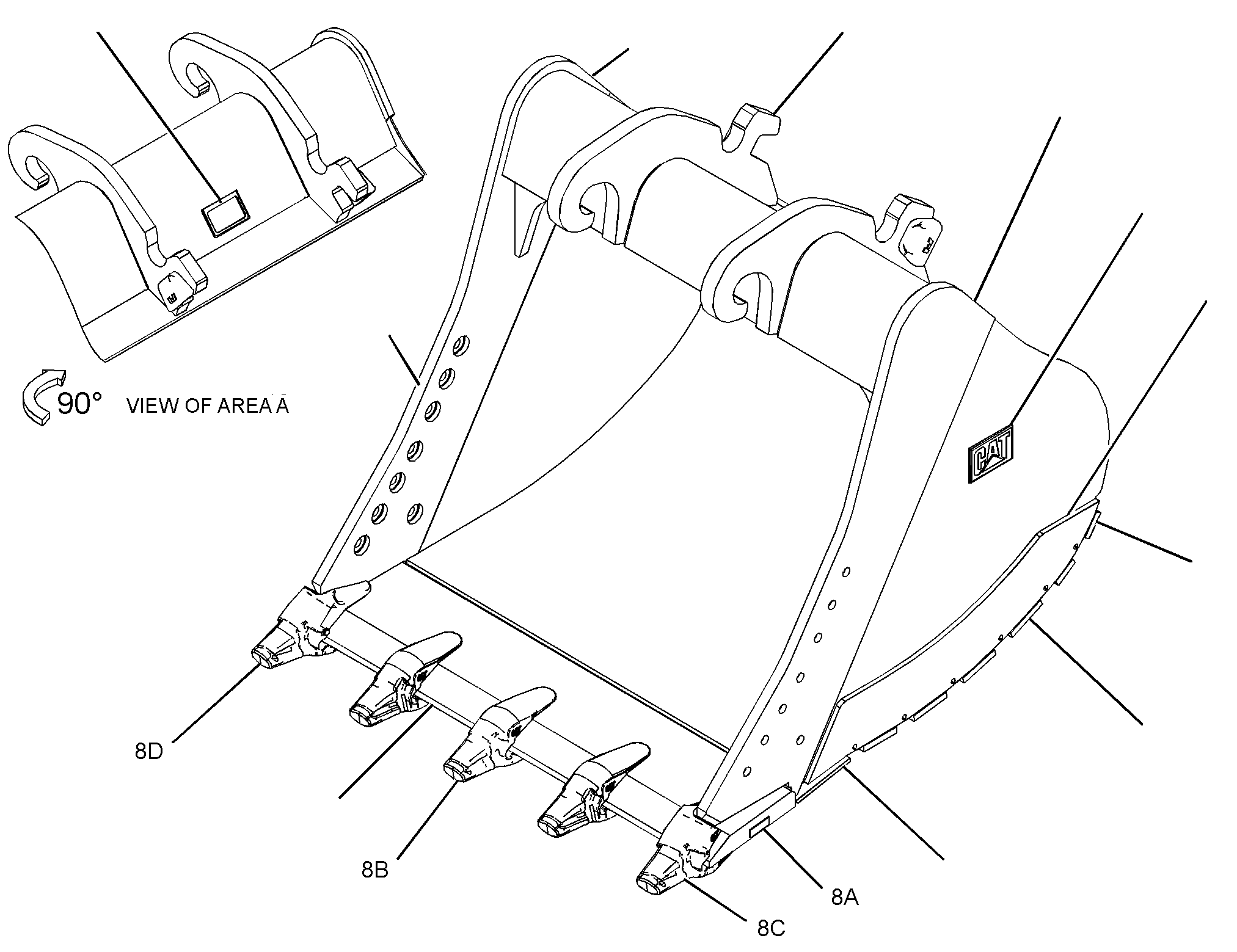

345-3253 BUCKET GP-HEAVY DUTY -TB-FAMILYS/N KCS1-UP; LJY1-UP
Group No: 345-3253 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2C9259 | 1 PLATE-IDENTIFICATION (CAT) | 2 | |
| 4762367 | 2 BUCKET AS-HEAVY DUTY | 1 | |
| 3501133 | 3 PLATE-WEAR | 2 | |
| 3501071 | 4 PLATE-WEAR | 1 | |
| 3501082 | 5 PLATE-WEAR | 4 | |
| 3501083 | 6 PLATE-WEAR | 2 | |
| 3520420 | 7 PLATE AS-HINGE | 1 | |
| 3590867 | 8 EDGE AS | 1 | |
| 8P9770 | 8A PLATE | 1 | |
| 3091114 | 8B ADAPTER-TIP (K-110, 2-STRAP, CENTER) | 3 | |
| 3091115 | 8C ADAPTER-TIP (K-110, 2-STRAP, RH) | 1 | |
| 3091116 | 8D ADAPTER-TIP (K-110, 2-STRAP, LH) | 1 | |
| 3393810 | 9 PLATE (RH) | 1 | |
| 3393811 | 10 PLATE (LH) | 1 | |
| 3125694 | 11 SETSCREW (1/4-20X0.25-IN) | 1 |
