System And Components

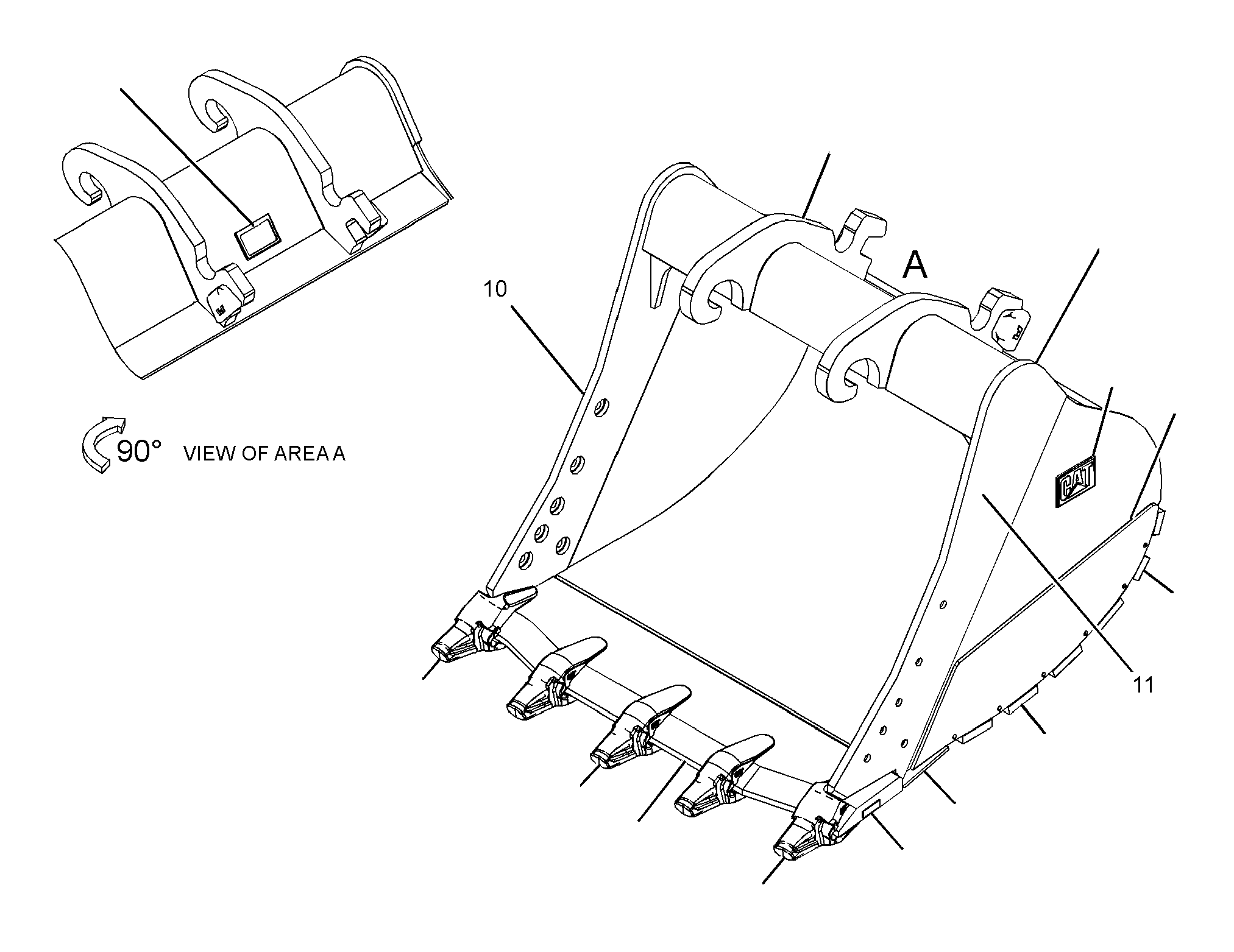

342-2258 BUCKET GP-SEVERE SERVICE SPADE -DB-FAMILYS/N KCS1-UP; LJY1-UP
Group No: 342-2258 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2C9259 | 1 PLATE-IDENTIFICATION (CAT) | 2 | |
| 3125694 | 2 SETSCREW (1/4-20X0.25-IN) | 1 | |
| 3422260 | 3 BUCKET AS-SEVERE SERVICE SPADE | 1 | |
| 3324898 | 4 EDGE AS | 1 | |
| 8P9770 | 4A PLATE | 1 | |
| 3091114 | 4B ADAPTER-TIP (K-110, 2-STRAP, CENTER) | 3 | |
| 3091115 | 4C ADAPTER-TIP (K-110, 2-STRAP, RH) | 1 | |
| 3091116 | 4D ADAPTER-TIP (K-110, 2-STRAP, LH) | 1 | |
| 3483084 | 5 PLATE-WEAR | 4 | |
| 3483085 | 6 PLATE-WEAR | 2 | |
| 3483126 | 7 PLATE-WEAR | 1 | |
| 3483221 | 8 PLATE AS-HINGE | 1 | |
| 3483080 | 9 PLATE-WEAR | 2 | |
| 3719106 | 10 PLATE (LH) | 1 | |
| 3719107 | 11 PLATE (RH) | 1 |
