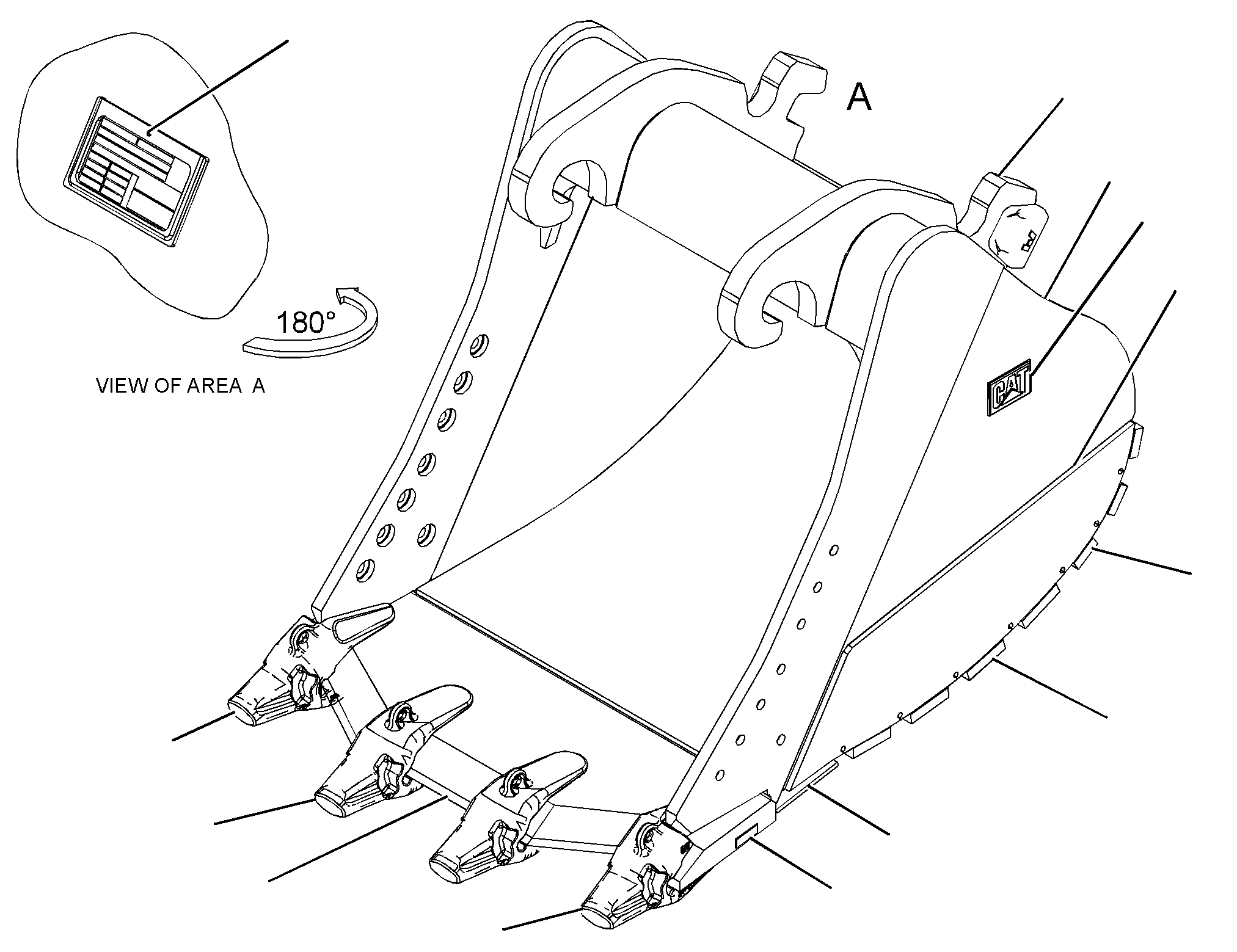

345-3255 BUCKET GP-SEVERE SERVICE SPADE -TB-FAMILYS/N KCS1-UP; LJY1-UP
Group No: 345-3255 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2C9259 | 1 PLATE-IDENTIFICATION (CAT) | 2 | |
| 3453257 | 2 BUCKET AS-SEVERE SERVICE SPADE | 1 | |
| 3393813 | 3 PLATE-WEAR | 2 | |
| 3517671 | 4 PLATE-WEAR | 1 | |
| 3517672 | 5 PLATE-WEAR | 4 | |
| 3517673 | 6 PLATE-WEAR | 3 | |
| 3603931 | 7 EDGE AS | 1 | |
| 8P9770 | 7A PLATE | 1 | |
| 3091114 | 7B ADAPTER-TIP (K-110, 2-STRAP, CENTER) | 2 | |
| 3091115 | 7C ADAPTER-TIP (K-110, 2-STRAP, RH) | 1 | |
| 3091116 | 7D ADAPTER-TIP (K-110, 2-STRAP, LH) | 1 | |
| 3603935 | 8 PLATE AS-HINGE | 1 | |
| 3125694 | 9 SETSCREW (1/4-20X0.25-IN) | 1 |
