System And Components

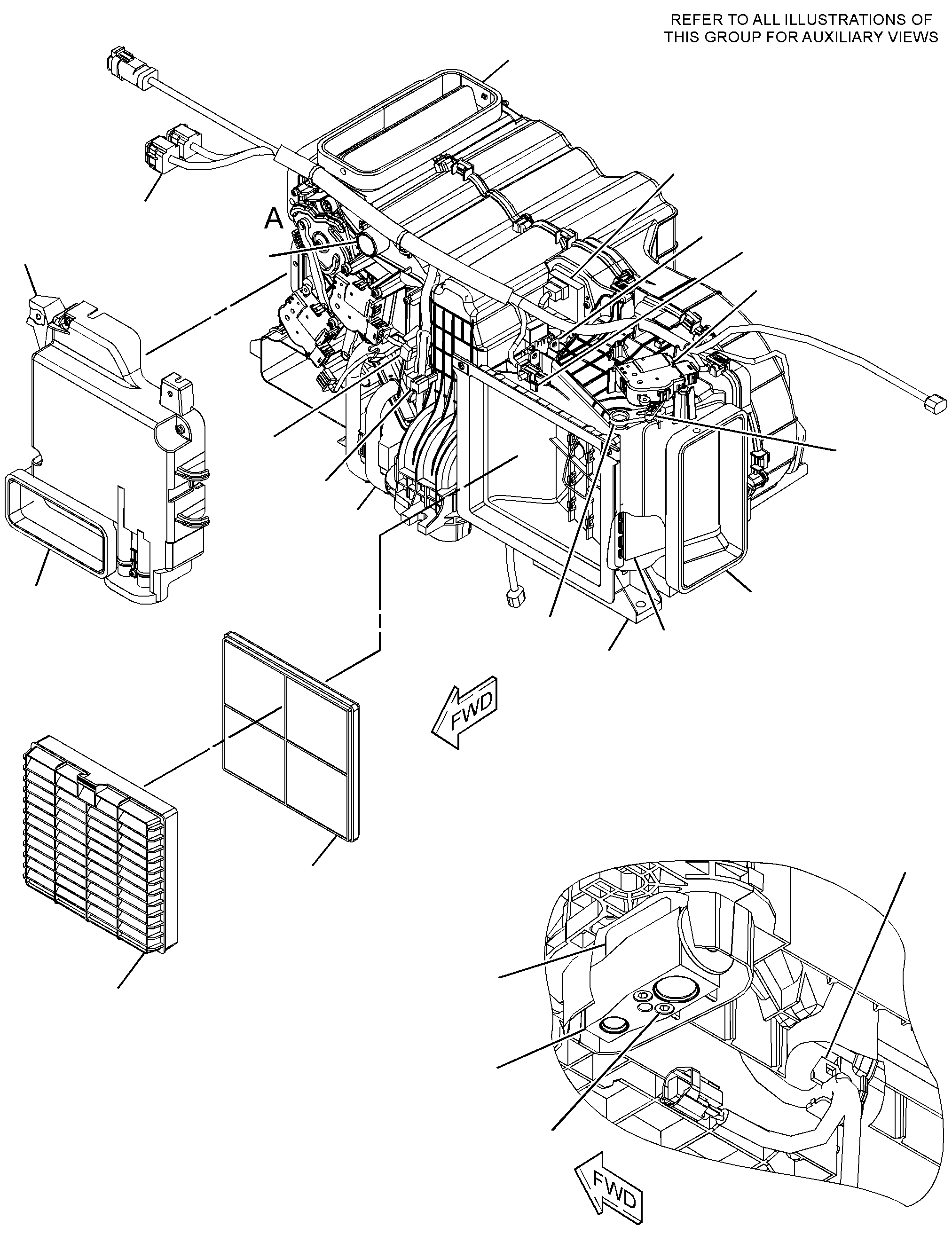

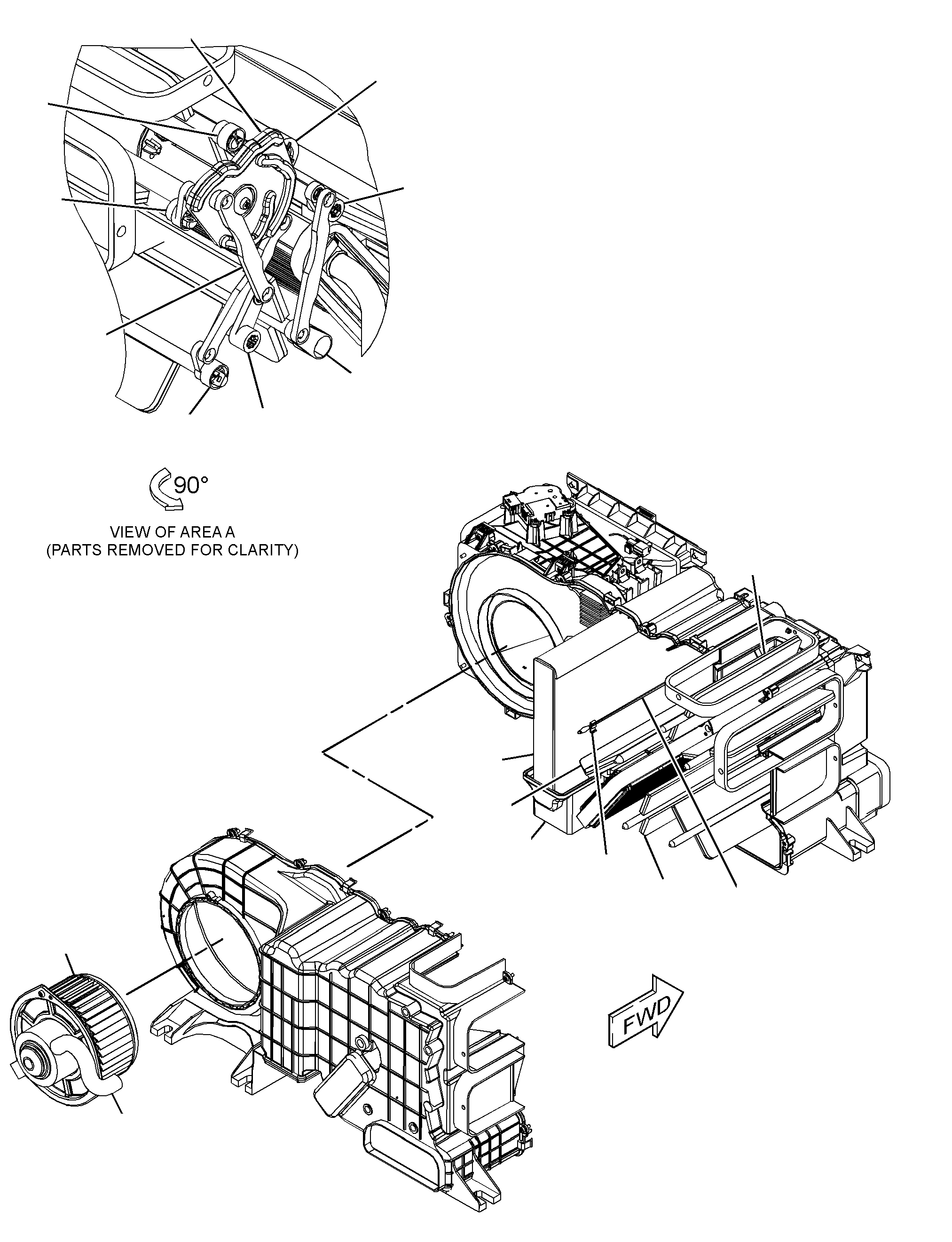

498-1163 AIR CONDITIONER GPS/N KCS1-UP; LJY1-UP
Group No: 498-1163 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1244042 | 1 RELAY (BLOWER MOTOR) | 2 | |
| 3050419 | 2 HOLDER | 1 | |
| 3564944 | 3 CONTROL AS-FAN (BLOWER) | 1 | |
| 3639402 | 4 FILTER (AIR CONDITIONER) | 1 | |
| 3639449 | 5 CASE | 1 | |
| 3639450 | 6 HOUSING AS-AIR CONDITIONER (INTAKE AIR) | 1 | |
| 3639482 | 6A INSULATOR | 1 | |
| 3639451 | 7 COVER AS (LINK) | 1 | |
| 3639483 | 7A INSULATOR | 1 | |
| 3639452 | 8 COVER-FILTER | 1 | |
| 3639453 | 9 COIL AS-EVAPORATOR | 1 | |
| 1133467 | SEAL-O-RING | 1 | |
| 1133468 | SEAL-O-RING | 1 | |
| 3639454 | 10 VALVE AS-EXPANSION | 1 | |
| 3639455 | 11 PLATE | 1 | |
| 3639456 | 12 CORE AS-HEATER | 1 | |
| 3639457 | 13 MOTOR AS-BLOWER (WITH FAN) | 1 | |
| 3639458 | 14 HOSE | 1 | |
| 3639459 | 15 MOTOR AS | 3 | |
| 3639460 | 16 PLATE | 1 | |
| 3639461 | 17 DAMPER | 1 | |
| 3639462 | 18 DAMPER | 3 | |
| 3639463 | 19 DAMPER | 1 | |
| 3639464 | 20 DAMPER | 1 | |
| 3639465 | 21 LEVER | 1 | |
| 3639466 | 22 LEVER | 1 | |
| 3639467 | 23 LEVER | 1 | |
| 3639468 | 24 LEVER | 1 | |
| 3639469 | 25 LEVER | 1 | |
| 3639470 | 26 LEVER | 1 | |
| 3639471 | 27 LEVER | 1 | |
| 3639472 | 28 LEVER | 1 | |
| 3639473 | 29 LEVER | 1 | |
| 3639474 | 30 LEVER | 1 | |
| 3639475 | 31 ROD | 3 | |
| 3639476 | 32 SENSOR AS (EVAPORATOR) | 1 | |
| 3639477 | 33 SENSOR AS (INTAKE AIR TEMPERATURE) | 1 | |
| 3639478 | 34 SENSOR AS (WATER TEMPERATURE) | 1 | |
| 3729366 | 35 HARNESS AS-HEATER & AIR COND | 1 | |
| 3639480 | 36 CLIP-HARNESS | 1 | |
| 3639481 | 37 HOLDER | 1 | |
| 3639482 | 38 INSULATOR | 2 | |
| 2810791 | 39 BOLT-SOCKET HEAD (M5X0.8X40-MM) | 2 | |
| 4981138 | 40 HARNESS AS-CAB | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 4 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 6 | |
| 3S2093 | STRAP-CABLE | 5 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1974385 | DIODE | 1 | |
| 2312295 | PLUG AS-CONNECTOR (8-PIN) | 1 | |
| 4550708 | SEAL-CONNECTOR | 1 | |
| 2434509 | RECEPTACLE AS-CONNECTOR (8-PIN) | 1 | |
| 7K1181 | 41 STRAP-CABLE | 2 |
