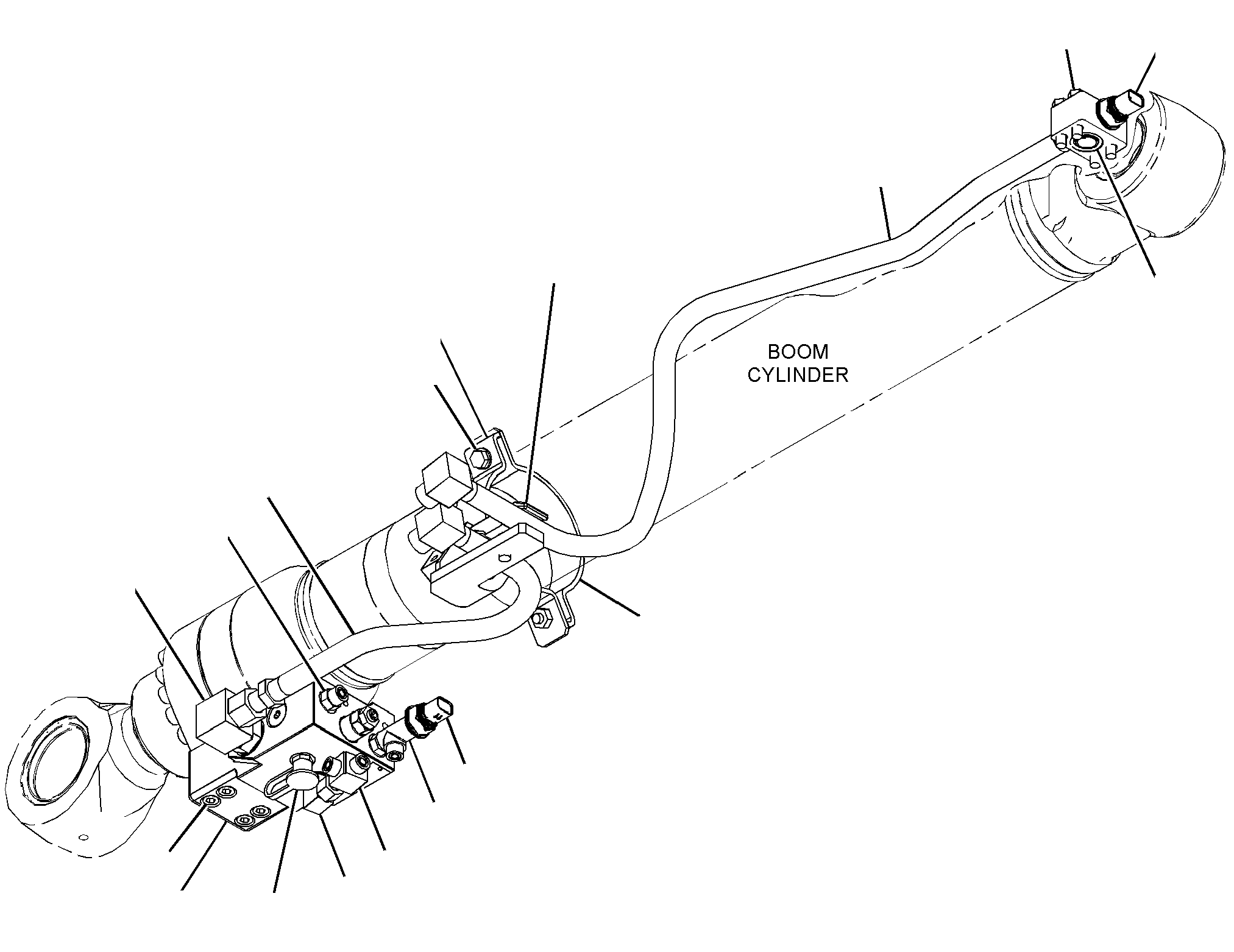

396-0219 LINES GP-BOOM CYLINDER -SHOVEL CRANES/N RAF1-UP
Group No: 396-0219
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 1 | |
| 0931295 | 2 CLAMP | 1 | |
| 3386971 | 3 SENSOR GP-PRESSURE (BOOM CYLINDER, ROD END) | 1 | |
| 3386971 | 3A SENSOR GP-PRESSURE (BOOM REGENERATION) | 1 | |
| 3923943 | 4 SUPPORT AS | 1 | |
| 3965355 | 5 SUPPORT AS | 1 | |
| 3965360 | 6 TUBE AS | 1 | |
| 3967733 | 7 TUBE AS | 1 | |
| 4159860 | 8 VALVE GP-PILOT | 1 | |
| 1488336 | 9 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488378 | 10 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488382 | 11 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 8T0404 | ELBOW | 1 | |
| 1488433 | 12 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1645567 | 13 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1681968 | 14 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1266872 | TEE | 1 | |
| 2802747 | 15 BOLT-SOCKET HEAD (M10X1.5X60-MM) | 4 | |
| 4J5267 | 16 SEAL-O-RING | 2 | |
| 7J9108 | 17 SEAL-O-RING | 2 | |
| 8T4121 | 18 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4182 | 19 BOLT (M10X1.5X45-MM) | 4 | |
| 8T4194 | 20 BOLT (M12X1.75X50-MM) | 1 | |
| 8T4196 | 21 BOLT (M10X1.5X35-MM) | 2 | |
| 8T4223 | 22 WASHER-HARD (13.5X25.5X3-MM THK) | 1 |
