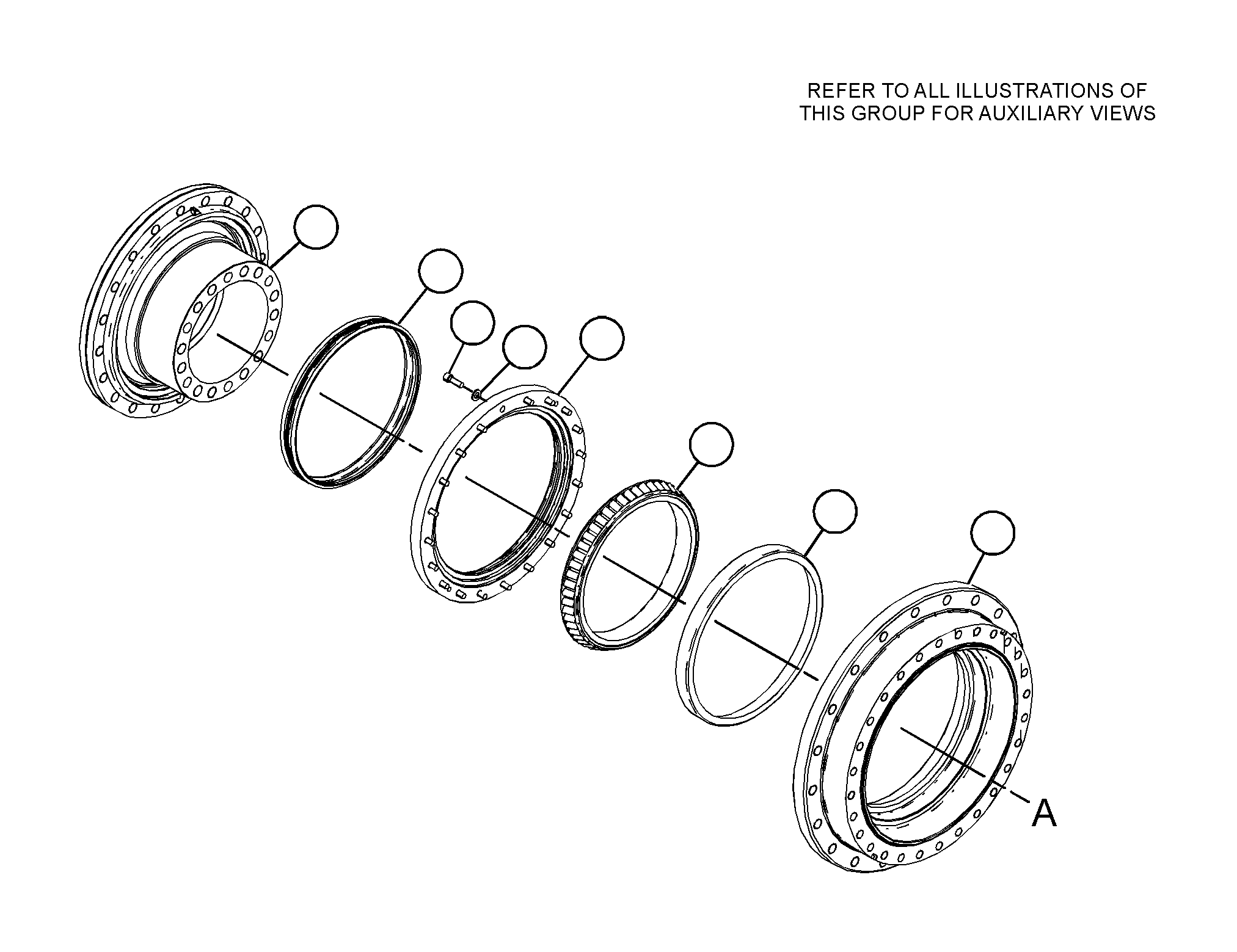

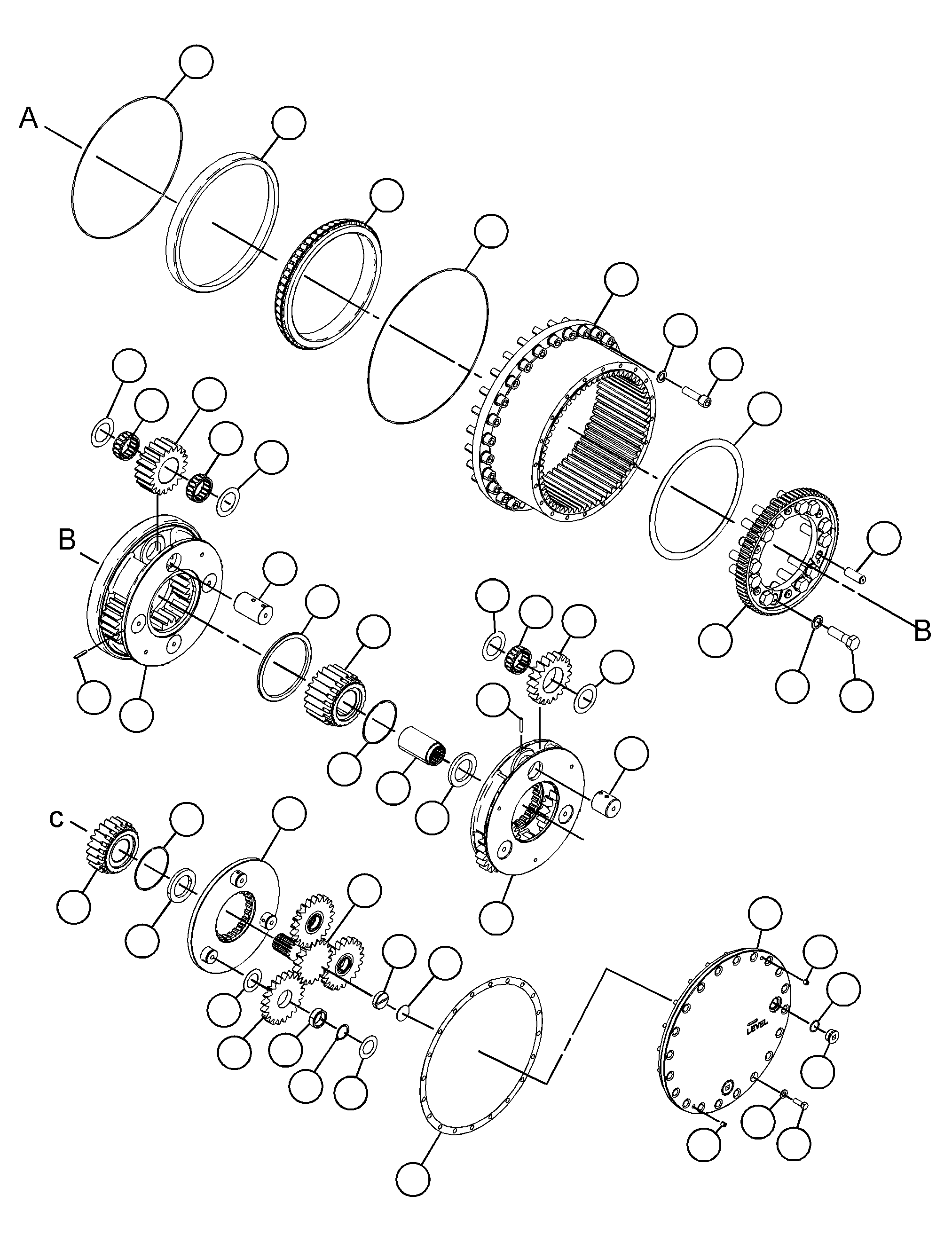

504-1674 DRIVE GP-FINAL -WITHOUT MOTOR, LHS/N RBF1-UP
Group No: 504-1674 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7Y0808 | 1 SHIM (1.6-MM THK) | 1 | |
| 7Y1469 | 2 COUPLING | 1 | |
| 7Y1472 | 3 SHIM (0.15-MM THK) | 1 | |
| 7Y1473 | SHIM (0.3-MM THK) | 1 | |
| 7Y1474 | SHIM (0.4-MM THK) | 1 | |
| 7Y1475 | SHIM (0.5-MM THK) | 1 | |
| 7Y1476 | SHIM (0.6-MM THK) | 1 | |
| 7Y1477 | SHIM (0.7-MM THK) | 1 | |
| 7Y1478 | SHIM (0.8-MM THK) | 1 | |
| 7Y1479 | SHIM (1-MM THK) | 1 | |
| 7Y1480 | SHIM (1.6-MM THK) | 1 | |
| 7Y1493 | 12 SPACER (8.7X50X14-MM THK) | 1 | |
| 1141541 | 13 PIN-DOWEL | 6 | |
| 1362898 | 14 WASHER (58.3X89X1-MM THK) | 14 | |
| 1912690 | 15 WASHER (42.3X70X1-MM THK) | 6 | |
| 1994719 | 16 GEAR-COUPLING | 1 | |
| 2276048 | 17 WASHER (26X40X4-MM THK) | 12 | |
| 2552272 | 18 SEAL GP-DUO-CONE | 1 | |
| 2059114 | RING-TORIC | 2 | |
| 2966185 | 19 SHAFT | 4 | |
| 2966195 | 20 SHAFT | 3 | |
| 3332927 | 21 GEAR-SUN (18-TEETH) | 1 | |
| 3332928 | 22 GEAR-SUN (21-TEETH) | 1 | |
| 3332929 | 23 GEAR-SUN (21-TEETH) | 1 | |
| 3332930 | 24 GEAR-PLANETARY (21-TEETH) | 3 | |
| 3332931 | 25 GEAR-PLANETARY (20-TEETH) | 3 | |
| 3332932 | 26 GEAR-PLANETARY (20-TEETH) | 4 | |
| 3332936 | 27 CARRIER AS | 1 | |
| 3332938 | 28 CARRIER-PLANETARY | 1 | |
| 3332939 | 29 CARRIER-PLANETARY | 1 | |
| 3332942 | 30 SPACER (183X209.6X8.5-MM THK) | 1 | |
| 3332960 | 31 GEAR-RING | 1 | |
| 3333035 | 32 PLATE | 1 | |
| 3465216 | 33 BEARING-NEEDLE | 11 | |
| 3465556 | 34 CONE-BEARING | 2 | |
| 3530605 | 35 HOUSING-GEAR | 1 | |
| 4512176 | 36 WASHER-HARD (22X35X3.5-MM THK) | 28 | |
| 4512182 | 37 WASHER-HARD (13.5X25.5X3-MM THK) | 20 | |
| 4523521 | 38 HOUSING-MOTOR | 1 | |
| 4807403 | 39 COVER | 1 | |
| 0963216 | 40 SETSCREW-SOCKET (M12X1.75X12-MM) | 2 | |
| 0968058 | 41 RING-RETAINING | 3 | |
| 1430811 | 42 BOLT (12X1.75X35-MM) | 20 | |
| 2386588 | 43 PIN-SPRING | 7 | |
| 2966248 | 44 BEARING AS-ROLLER | 3 | |
| 2R0525 | 45 CUP-BEARING | 2 | |
| 3E2338 | 46 PLUG-PIPE | 2 | |
| 4S5924 | 47 SEAL-O-RING | 1 | |
| 5P8245 | 48 WASHER-HARD (13.5X25.5X3-MM THK) | 20 | |
| 6V8133 | 49 BOLT (M24X3X80-MM) | 12 | |
| 6V8200 | 50 BOLT-SOCKET HEAD (M12X1.75X35-MM) | 20 | |
| 7M8485 | 51 SEAL-O-RING | 2 | |
| 7Y0667 | 52 RING-RETAINING | 2 | |
| 7Y1492 | 53 SPACER (67X101.1X10-MM THK) | 2 | |
| 7Y5217 | 54 BOLT-SOCKET HEAD (M20X2.5X70-MM) | 28 | |
| 8C5240 | 55 SEAL-O-RING | 1 | |
| 5030954 | 56 GASKET | 1 |
