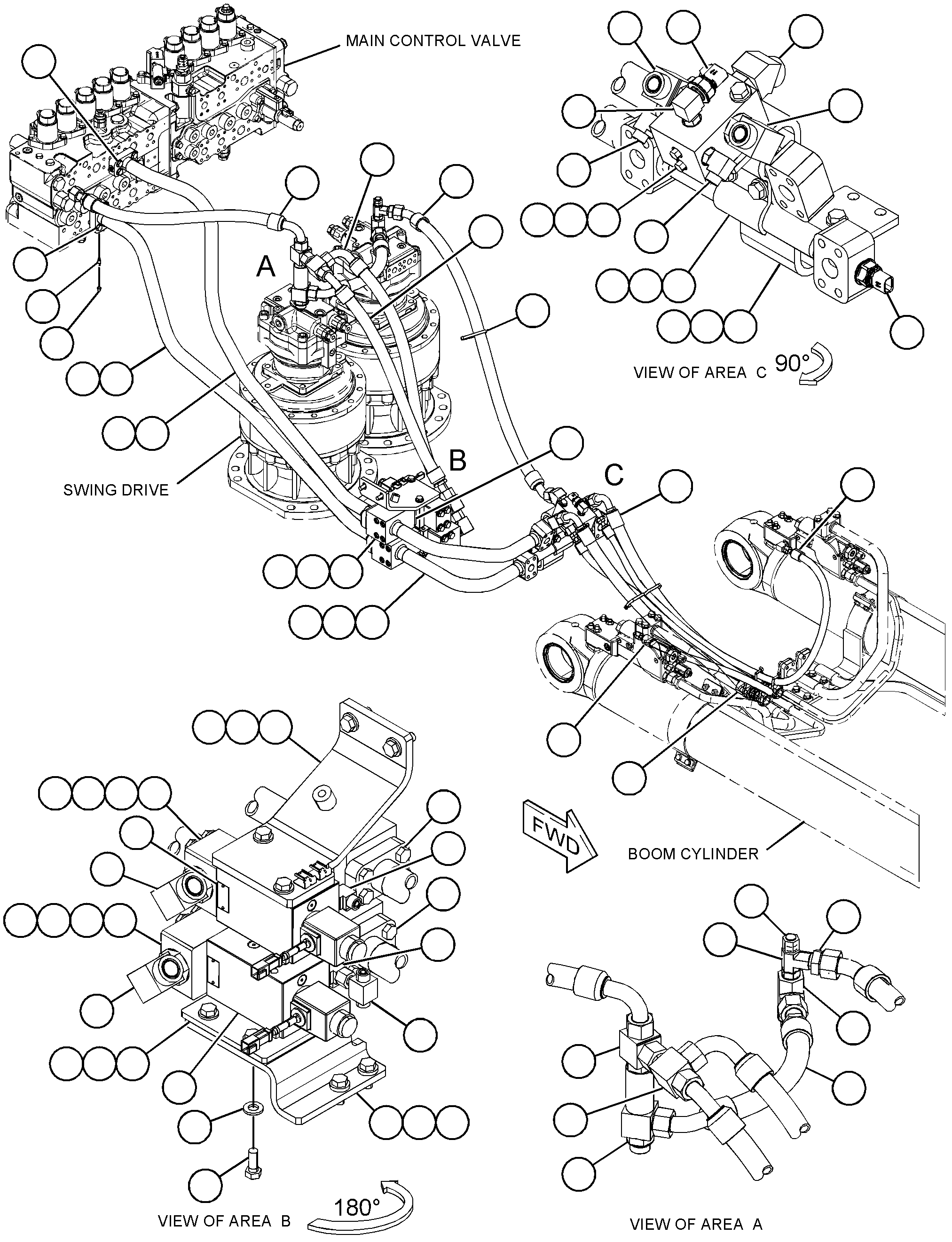

474-2644 LINES GP-BOOM CYLINDER -SMARTBOOMS/N RBF1-UP
Group No: 474-2644 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 7 | |
| 9F2167 | 2 SCREW-PURGE (3/8-24X1.164-IN) | 2 | |
| 1536240 | 3 TEE AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8C7514 | TEE | 1 | |
| 1882008 | 4 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 8T7970 | ELBOW | 1 | |
| 1939994 | 5 HOSE AS | 1 | |
| 2133456 | 6 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 2133455 | TEE | 1 | |
| 2181125 | 7 BLOCK | 1 | |
| 2181126 | 8 BLOCK | 1 | |
| 2446715 | 9 PLATE | 1 | |
| 2597504 | 10 PLATE | 1 | |
| 2970371 | 11 VALVE GP-SOLENOID (CHECK) | 2 | |
| 3350512 | 12 VALVE GP-MANUAL (BOOM LOAD CONTROL) | 1 | |
| 3386971 | 13 SENSOR GP-PRESSURE (HYDRAULIC OIL) | 2 | |
| 3474414 | 14 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 2966939 | TEE-ORP TO ORFS | 1 | |
| 3632403 | 15 HOSE AS | 1 | |
| 3632412 | 16 HOSE AS | 1 | |
| 3632415 | 17 HOSE AS | 1 | |
| 3632425 | 18 TUBE AS | 1 | |
| 3632426 | 19 TUBE AS | 1 | |
| 3632427 | 20 TUBE AS | 1 | |
| 3632428 | 21 TUBE AS | 1 | |
| 3632540 | 22 HOSE AS | 1 | |
| 3660832 | 23 SUPPORT AS | 1 | |
| 3839497 | 24 SUPPORT | 1 | |
| 3918672 | 25 SUPPORT AS | 1 | |
| 4261286 | 26 HOSE AS | 2 | |
| 4747205 | 27 HOSE AS | 2 | |
| 1087550 | 28 CLIP | 1 | |
| 1488347 | 29 ELBOW AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9007 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488357 | 30 ELBOW AS | 2 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488378 | 31 ELBOW AS | 4 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488429 | 32 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 6V9840 | TEE-SWIVEL | 1 | |
| 1488431 | 33 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 6V8785 | TEE | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488434 | 34 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9843 | TEE | 1 | |
| 1536230 | 35 CONNECTOR AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 8T9386 | CONNECTOR | 1 | |
| 1646874 | 36 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | ELBOW-ADAPTER | 1 | |
| 1P3704 | 37 SEAL-RECTANGULAR | 5 | |
| 1P3705 | 38 SEAL-RECTANGULAR | 4 | |
| 3672026 | 39 BOLT-SOCKET HEAD (M12X1.75X135-MM) | 4 | |
| 3672027 | 40 BOLT-SOCKET HEAD | 4 | |
| 6H3615 | 41 PLUG-PROTECTION | 2 | |
| 6V9830 | 42 CAP (ORFS) | 1 | |
| 8T4139 | 43 BOLT (M12X1.75X30-MM) | 12 | |
| 8T4176 | 44 BOLT (M12X1.75X90-MM) | 2 | |
| 8T4183 | 45 BOLT (M12X1.75X40-MM) | 8 | |
| 8T4223 | 46 WASHER-HARD (13.5X25.5X3-MM THK) | 22 | |
| 8T4956 | 47 BOLT (M12X1.75X35-MM) | 10 | |
| 8T6868 | 48 BOLT (M12X1.75X80-MM) | 8 | |
| 8T7971 | 49 WASHER-HARD (13.5X25.5X5-MM THK) | 2 |
