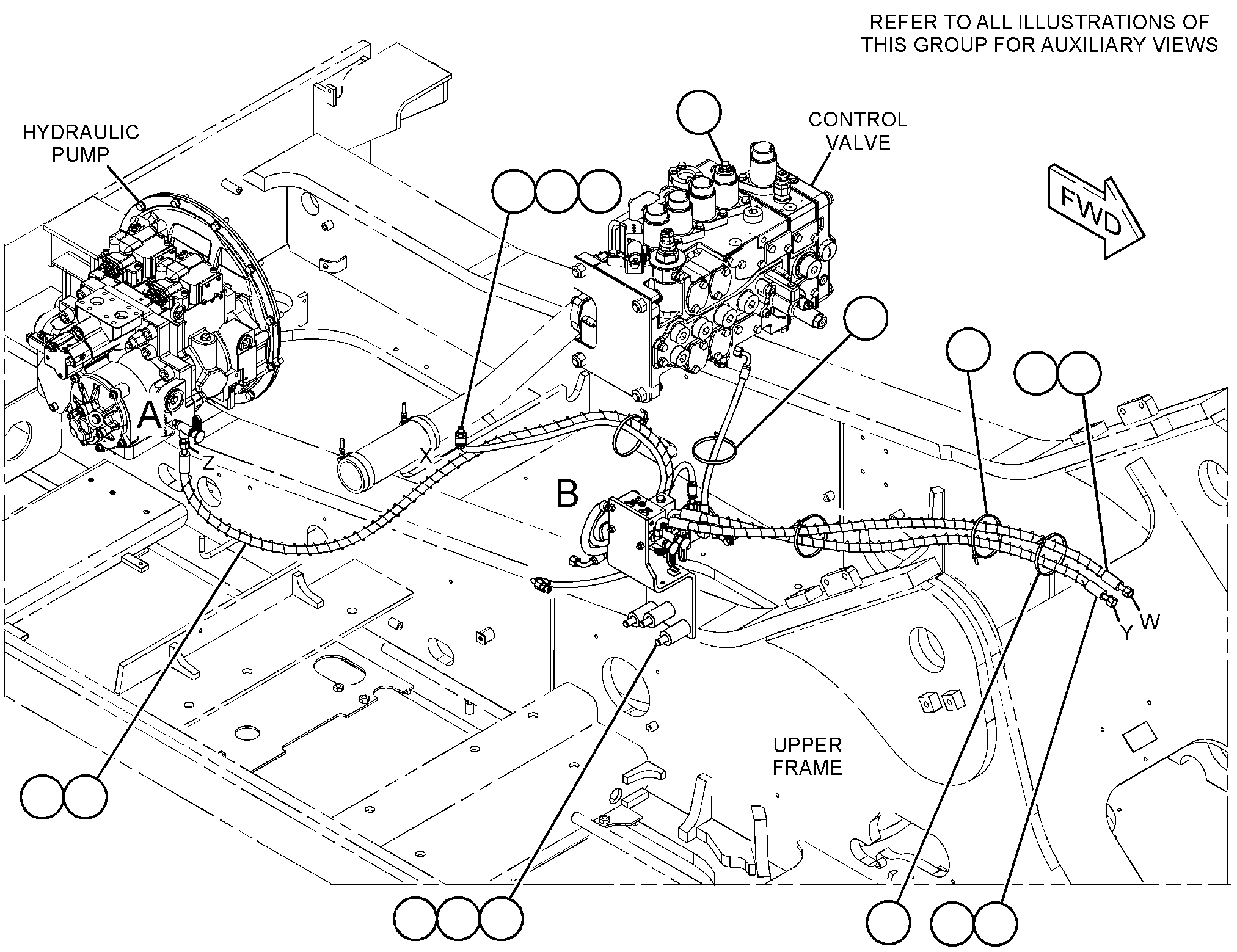

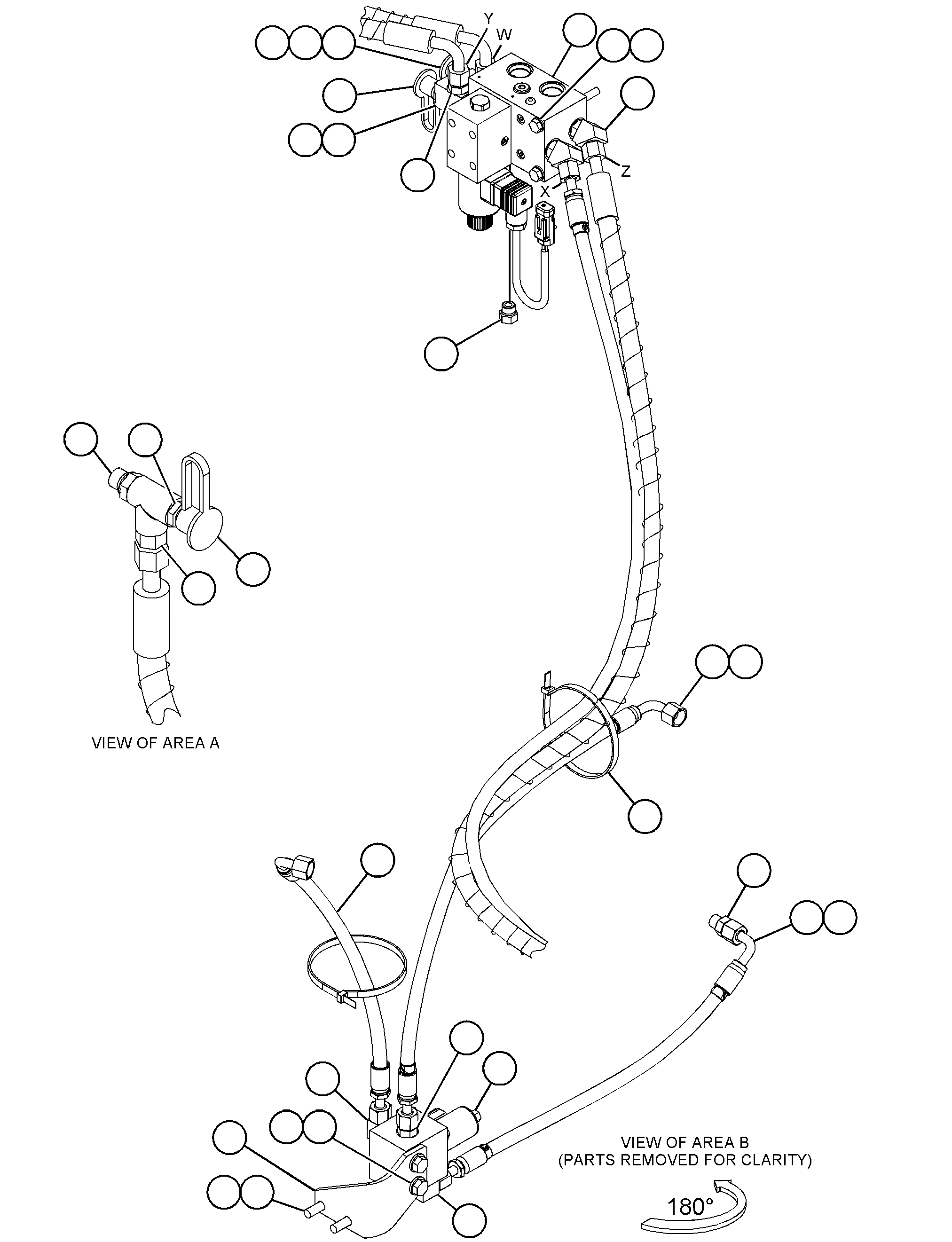

388-0303 LINES GP-FRONT -UNIVERSAL QUICK COUPLERS/N RBF1-UP
Group No: 388-0303 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I1760 | 1 HOSE AS | 1 | |
| 4I9521 | 2 BAND-MARKER (RED, L1) | 6 | |
| 4I9522 | 3 BAND-MARKER (YELLOW, L2) | 6 | |
| 4I9523 | 4 BAND-MARKER (BLUE, L3) | 2 | |
| 4I9525 | 5 BAND-MARKER (ORANGE, R1) | 2 | |
| 1048838 | 6 HOSE AS | 1 | |
| 1087393 | 7 HOSE AS | 1 | |
| 1234750 | 8 VALVE AS-CHECK | 1 | |
| 2586749 | 9 VALVE GP-SOLENOID (QUICK COUPLER) | 1 | |
| 2751690 | 10 HOSE AS | 1 | |
| 2786596 | 11 HOSE AS | 2 | |
| 3394353 | 12 VALVE GP-CONTROL (QUICK COUPLER) | 1 | |
| 3504228 | 13 HOSE AS | 1 | |
| 3507324 | 14 SUPPORT AS | 1 | |
| 3507346 | 15 PLATE | 1 | |
| 1488336 | 16 CONNECTOR AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488353 | 17 ELBOW AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488378 | 18 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 19 PLUG AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1645546 | 20 TEE AS | 1 | |
| 3E7410 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1645547 | 21 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4I1694 | CONNECTOR | 1 | |
| 1645567 | 22 COUPLER AS-QUICK DISCONNECT (MALE) | 3 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1681968 | 23 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1266872 | TEE | 1 | |
| 6V0852 | 24 CAP-DUST | 3 | |
| 7K1181 | 25 STRAP-CABLE | 6 | |
| 8T4121 | 26 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4137 | 27 BOLT (M10X1.5X20-MM) | 2 | |
| 4531256 | 28 BOLT (M16X2X110-MM) | 3 | |
| 8T4177 | 29 BOLT (M8X1.25X90-MM) | 3 | |
| 8T4195 | 30 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4224 | 31 WASHER-HARD (8.8X16X2-MM THK) | 3 | |
| 4512175 | 32 WASHER-HARD (17.5X30X3.5-MM THK) | 3 |
