System And Components

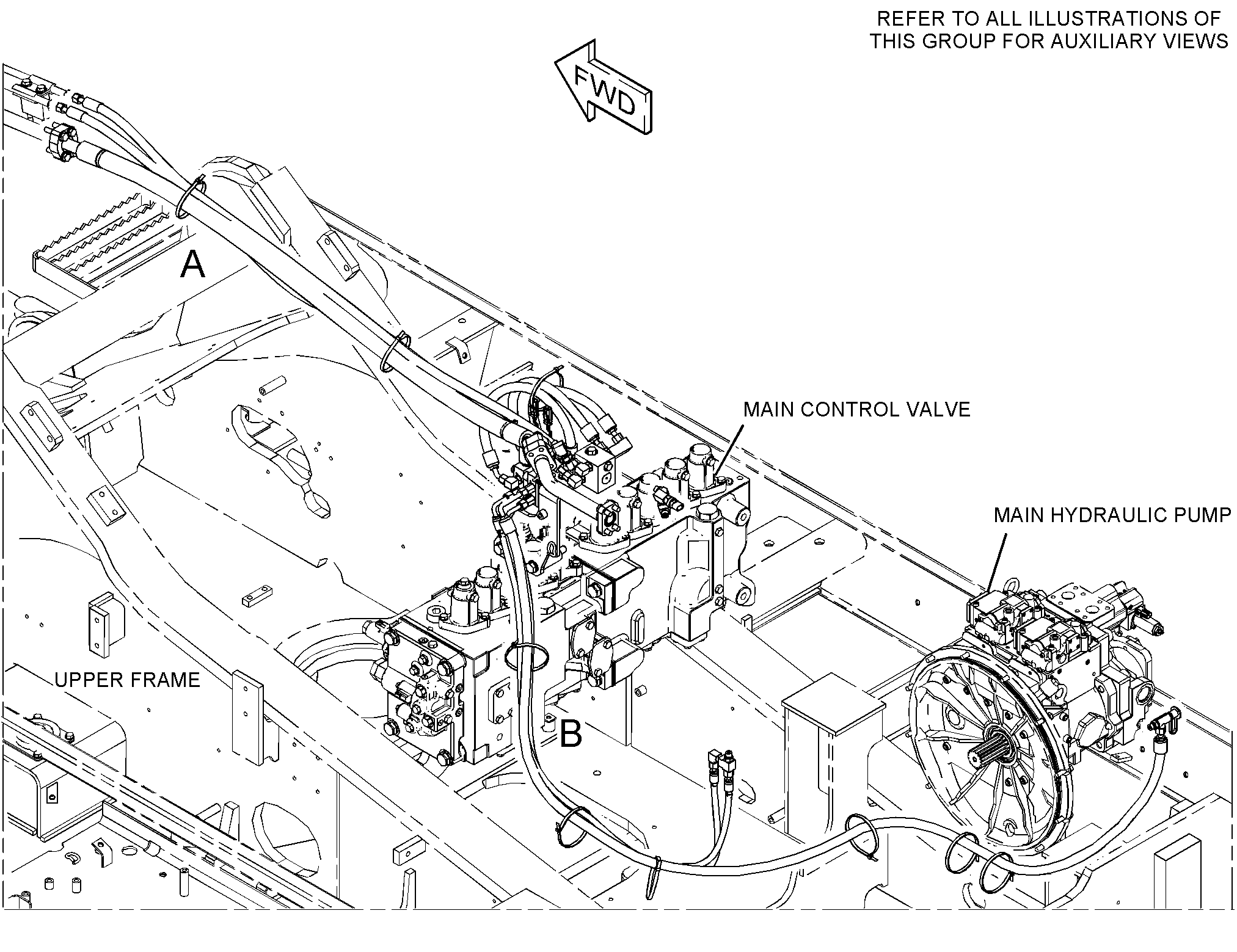

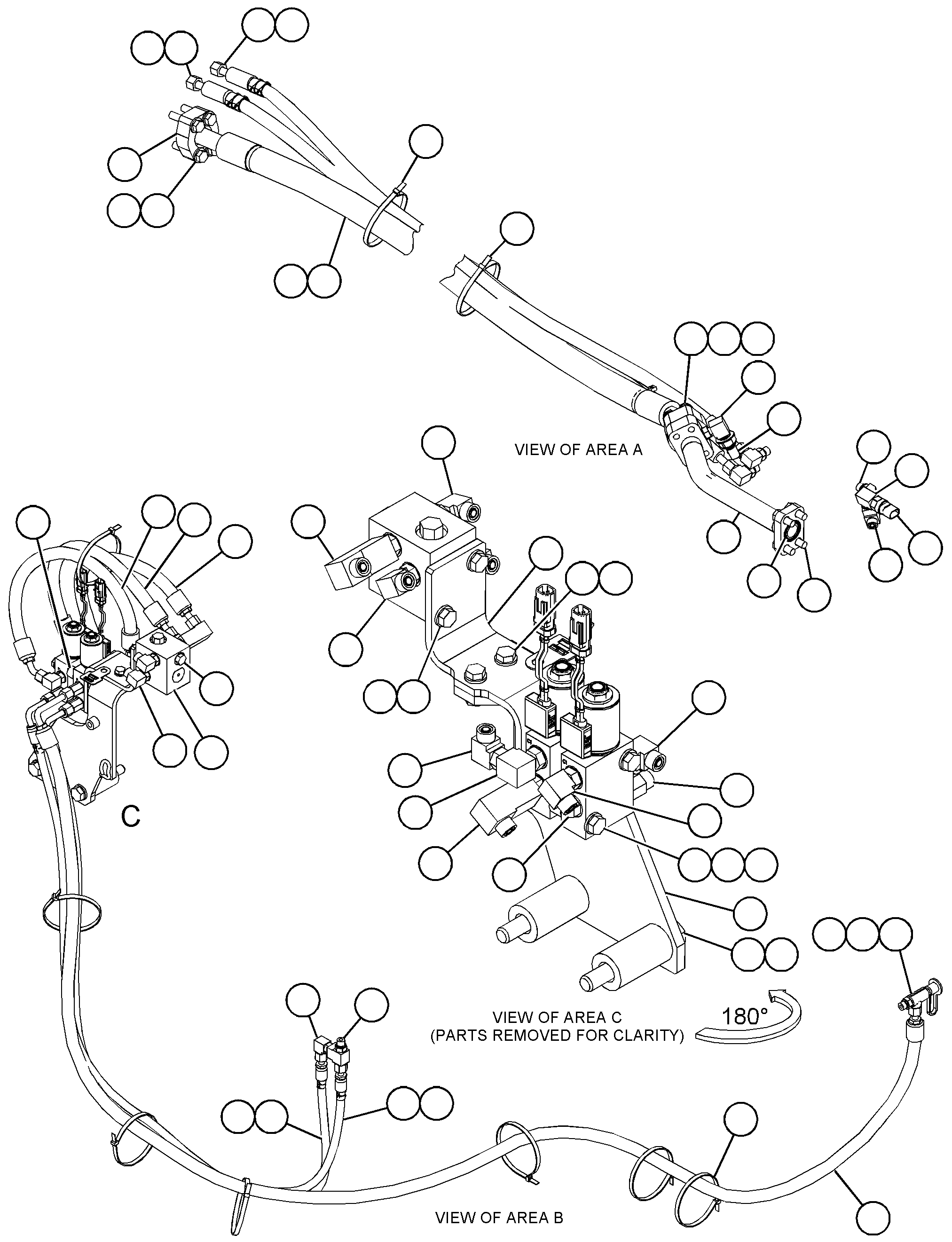

494-9529 LINES GP-FRONT -QUICK COUPLERS/N RBF1-UP
Group No: 494-9529 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I9521 | 1 BAND-MARKER (RED, L1) | 4 | |
| 4I9522 | 2 BAND-MARKER (YELLOW, L2) | 10 | |
| 7K1181 | 3 STRAP-CABLE | 9 | |
| 1504027 | 4 TEE AS | 2 | |
| 3E2310 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1681968 | 5 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1266872 | TEE | 1 | |
| 2751684 | 6 HOSE AS | 2 | |
| 3282035 | 7 VALVE GP-SOLENOID & MANIFOLD (QUICK COUPLER) | 2 | |
| 3386971 | 8 SENSOR GP-PRESSURE (HYDRAULIC OIL)(BUCKET CYLINDER, HEAD END) | 1 | |
| 3481344 | 9 HOSE AS | 2 | |
| 3500931 | 10 HOSE AS | 1 | |
| 4512175 | 11 WASHER-HARD (17.5X30X3.5-MM THK) | 2 | |
| 4531256 | 12 BOLT (M16X2X110-MM) | 2 | |
| 4540504 | 13 VALVE GP-CHECK (PILOT OPERATED) | 1 | |
| 4545075 | 14 SENSOR GP-PRESSURE (BUCKET) | 1 | |
| 4566653 | 15 SUPPORT AS | 1 | |
| 4566657 | 16 SUPPORT AS | 1 | |
| 4573368 | 17 TUBE AS | 1 | |
| 4574686 | 18 HOSE AS | 1 | |
| 4579869 | 19 SPACER (11X20X15-MM THK) | 2 | |
| 4591279 | 20 HOSE AS | 2 | |
| 4591282 | 21 HOSE AS | 1 | |
| 1488378 | 22 ELBOW AS | 7 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 23 PLUG AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1503036 | 24 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1905 | ELBOW | 1 | |
| 1504044 | 25 CONNECTOR AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1779 | CONNECTOR | 1 | |
| 1645567 | 26 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1646874 | 27 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | ELBOW-ADAPTER | 1 | |
| 1654931 | 28 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8077 | ELBOW | 1 | |
| 1695862 | 29 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 8C6712 | ELBOW | 1 | |
| 1P3703 | 30 SEAL-RECTANGULAR | 3 | |
| 6V0400 | 31 FLANGE-HALF | 4 | |
| 6V0852 | 32 CAP-DUST | 1 | |
| 8T4121 | 33 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4136 | 34 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4139 | 35 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4184 | 36 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4195 | 37 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4198 | 38 BOLT (M10X1.5X100-MM) | 2 | |
| 8T4223 | 39 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T4910 | 40 BOLT (M12X1.75X60-MM) | 4 |
