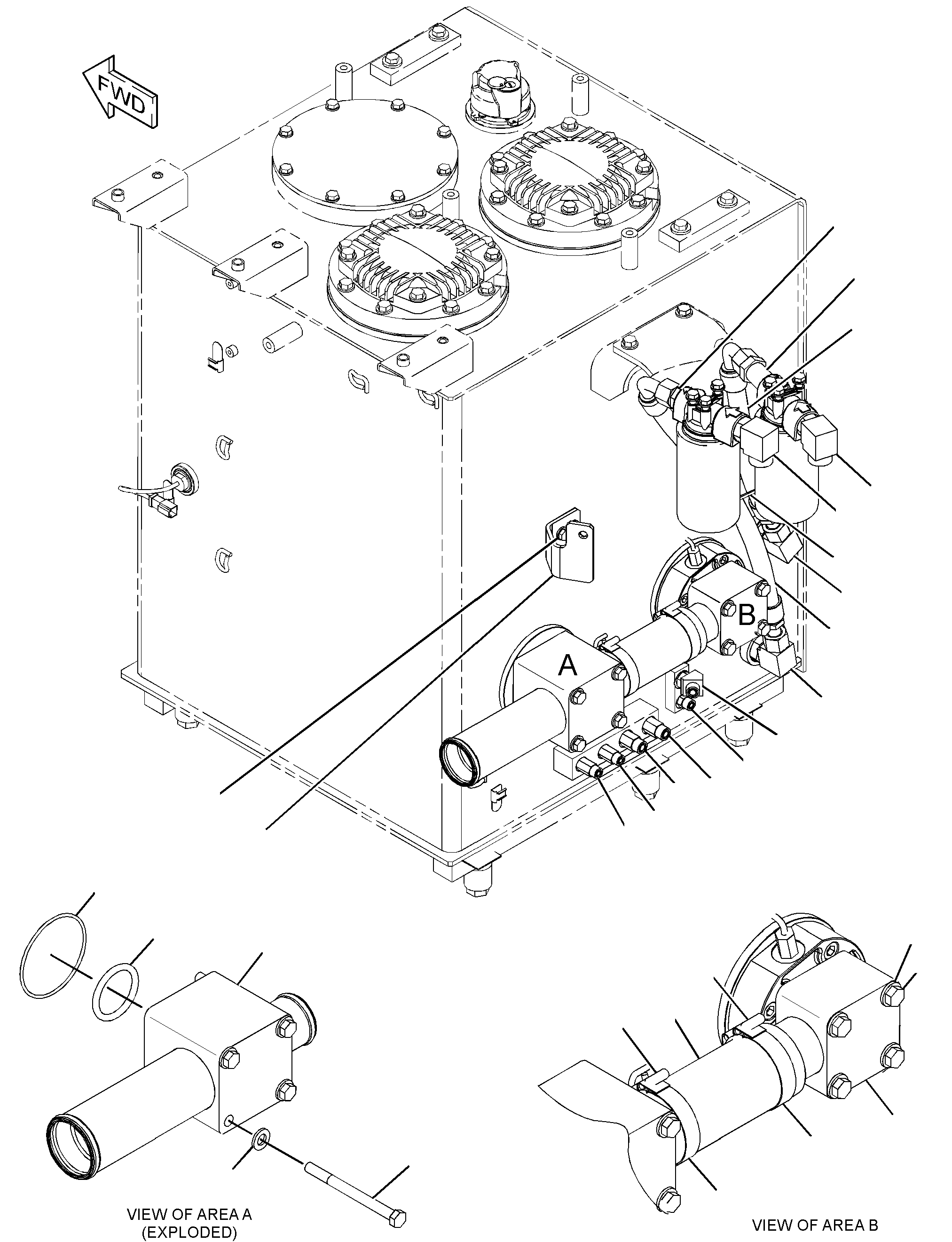

424-9526 LINES GP-HYDRAULIC -HYDRAULIC TANKS/N RBF1-UP
Group No: 424-9526 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I3817 | 1 HOSE AS | 1 | |
| 7K1181 | 2 STRAP-CABLE | 1 | |
| 8C0620 | 3 PROTECTOR-THREAD | 2 | |
| 1852271 | 4 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8T9023 | CONNECTOR-O-RING | 1 | |
| 2094575 | 5 CLAMP | 2 | |
| 2270581 | 6 HOSE | 1 | |
| 2967220 | 7 HOSE AS | 1 | |
| 4179829 | 8 SUPPORT AS | 1 | |
| 3334610 | 9 TUBE AS | 1 | |
| 3372679 | 10 PIPE AS | 1 | |
| 1488327 | 11 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488336 | 12 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488338 | 13 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T0075 | CONNECTOR | 1 | |
| 1488354 | 14 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9002 | ELBOW | 1 | |
| 1488360 | 15 ELBOW AS | 2 | |
| 6V9182 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488362 | 16 ELBOW AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 8T6684 | ELBOW (90-DEG) | 1 | |
| 1645608 | 17 CONNECTOR AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T1687 | CONNECTOR | 1 | |
| 1756176 | 18 SEAL-O-RING | 1 | |
| 2H3934 | 19 SEAL-O-RING | 1 | |
| 4J0528 | 20 SEAL-O-RING | 1 | |
| 8T4121 | 21 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4136 | 22 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4176 | 23 BOLT (M12X1.75X90-MM) | 4 | |
| 8T4223 | 24 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T5412 | 25 BOLT (M12X1.75X140-MM) | 4 |
