System And Components

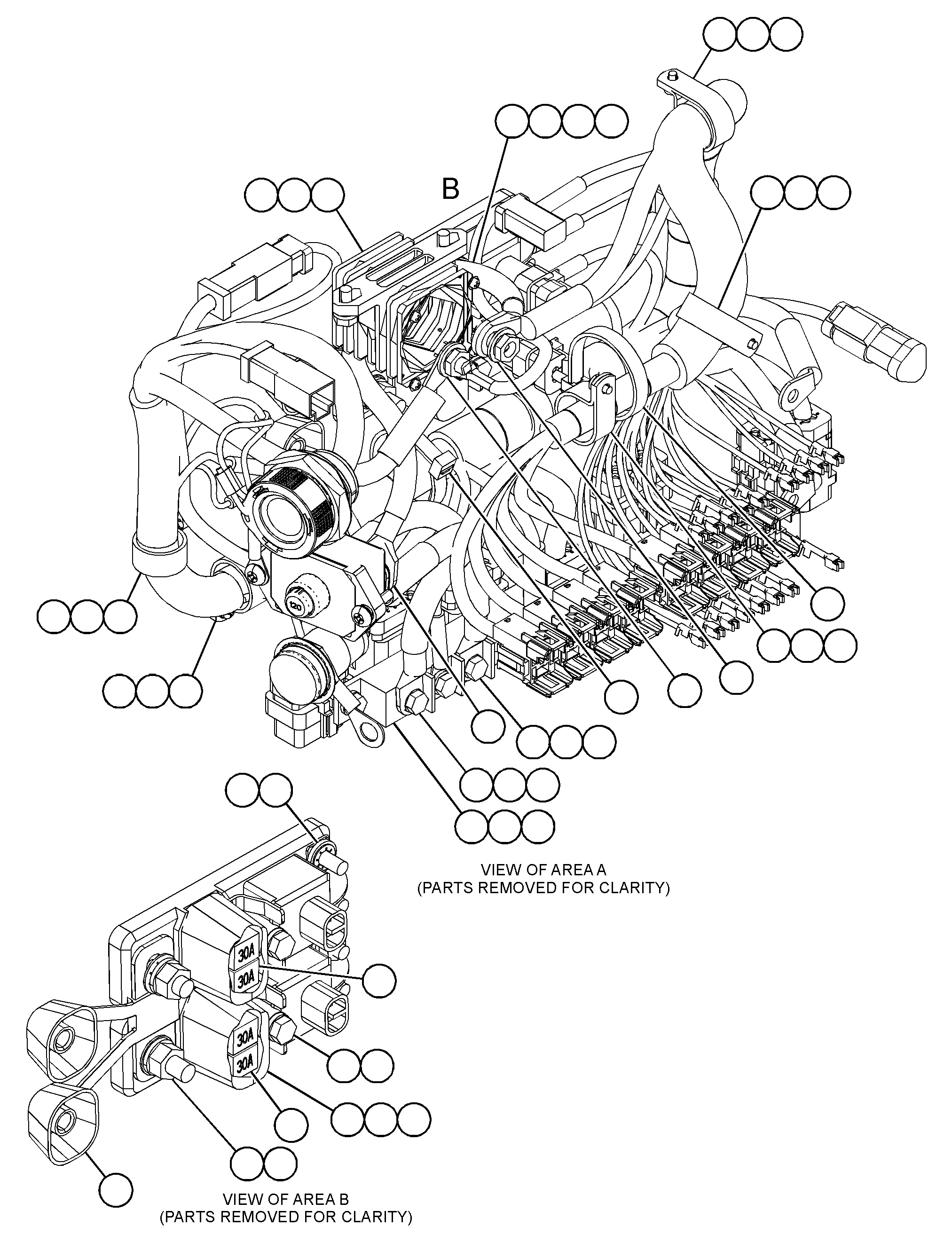

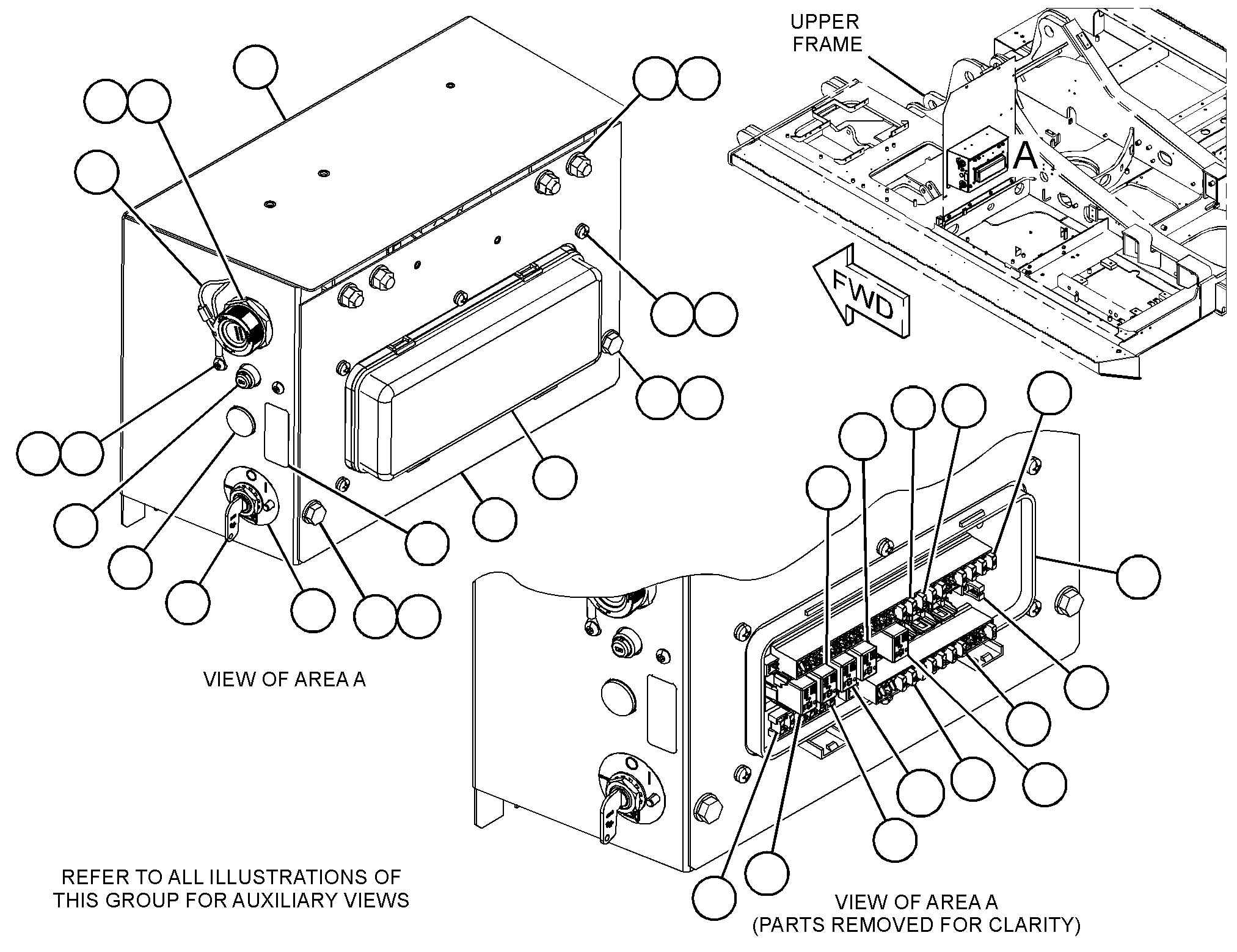

494-2827 PANEL GP-CIRCUIT BREAKERS/N SFZ1-UP
Group No: 494-2827
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2382526 | 1 COVER | 1 | |
| 3E8320 | 2 PLATE-INSTRUCTION (BATTERY) | 1 | |
| 7K1181 | 3 STRAP-CABLE | 3 | |
| 7N0719 | 4 SWITCH GP-DISCONNECT (BATTERY) | 1 | |
| 1059985 | 5 CLIP | 7 | |
| 1138490 | 6 FUSE (10-AMPERE) | 3 | |
| 1138491 | 7 FUSE (15-AMPERE) | 12 | |
| 1138492 | 8 FUSE (20-AMPERE) | 7 | |
| 1138493 | 9 FUSE (25-AMPERE) | 1 | |
| 1211023 | 10 BLOCK-TERMINAL | 1 | |
| 1613128 | 11 RELAY (24-VOLT)(BOOM LIGHTS) | 1 | |
| 1613128 | 11A RELAY (24-VOLT)(CAB LIFT PUMP) | 1 | |
| 1613128 | 11B RELAY (24-VOLT)(CHASSIS LIGHTS) | 1 | |
| 1613128 | 11C RELAY (24-VOLT)(HORN) | 1 | |
| 1613128 | 11D RELAY (24-VOLT)(NEUTRAL START) | 1 | |
| 1706888 | 12 PULLER-FUSE | 1 | |
| 2039007 | 13 NUT (1-1/2-18-THD) | 1 | |
| 2164970 | 14 CIRCUIT BREAKER AS (120-AMPERE)(BATTERY) | 1 | |
| 1H3244 | LOCKWASHER | 2 | |
| 4E5724 | WASHER (7X12X1-MM THK) | 2 | |
| 8T0122 | NUT-FULL (1/4-28-THD) | 2 | |
| 2418368 | 15 SWITCH GP-MAGNETIC (24-VOLT)(MAIN POWER RELAY) | 1 | |
| 2702679 | 16 LOCKWASHER | 1 | |
| 2750553 | 17 BAR-BUS | 1 | |
| 2832973 | 18 COVER AS-PANEL | 1 | |
| 9X2032 | NUT-WELD (M4X0.7-THD) | 2 | |
| 3031256 | 19 RELAY GP (24-VDC)(MAIN POWER) | 2 | |
| 3775603 | 20 CAP AS | 1 | |
| 4215575 | 21 LAMP GP-INDICATOR (24-VOLT)(PURGE) | 1 | |
| 4234101 | 22 FILM-IDENTIFICATION (BATTERY DISCONNECT, READ OMM) | 1 | |
| 4942089 | 23 HARNESS AS-PANEL | 1 | |
| 4944328 | 24 CABLE AS | 2 | |
| 8C3056 | CABLE (2-GA, RED)(23-CM) | ||
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM) | ||
| 4944982 | 25 CABLE AS | 1 | |
| 6V2369 | CABLE (4-GA, BLACK)(0.2-M) | ||
| 4946355 | 26 BRACKET AS | 1 | |
| 5183867 | 27 CABLE AS | 1 | |
| 6V2369 | CABLE (4-GA, BLACK)(0.3-M) | ||
| 0966166 | 28 WASHER-HARD (4.5X9X1-MM THK) | 4 | |
| 1807451 | 29 WASHER-HARD (5.3X8.8X2-MM THK) | 3 | |
| 1H3244 | 30 LOCKWASHER | 4 | |
| 4B4277 | 31 WASHER (8.8X17.5X1.6-MM THK) | 2 | |
| 5C2890 | 32 NUT (M6X1-THD) | 4 | |
| 5C7261 | 33 NUT (M8X1.25-THD) | 2 | |
| 5C9553 | 34 BOLT (M6X1X16-MM) | 5 | |
| 6V5645 | 35 SCREW-MACHINE (10-32X0.87-IN) | 2 | |
| 6V7728 | 36 BOLT (M6X1X45-MM) | 2 | |
| 8C7581 | 37 SCREW-MACHINE (M4X0.7X8-MM) | 7 | |
| 8T0328 | 38 WASHER-HARD (5.5X10X1-MM THK) | 2 | |
| 8T4121 | 39 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4133 | 40 NUT (M10X1.5-THD) | 4 | |
| 8T4171 | 41 BOLT (M6X1X12-MM) (M6X1X12-MM) | 2 | |
| 8T4191 | 42 BOLT (M10X1.5X16-MM) | 2 | |
| 8T4205 | 43 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 8T4224 | 44 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4970 | 45 BOLT (M6X1X14-MM) | 2 | |
| 8T6411 | 46 SCREW-MACHINE (M6X1X12-MM) (M6X1X12-MM) | 6 | |
| 2643617 | 47 LOCKWASHER | 2 | |
| 9X8256 | 48 WASHER (6.6X12X2-MM THK) | 17 | |
| 2749872 | 49 FUSE (30-AMPERE) | 4 |
