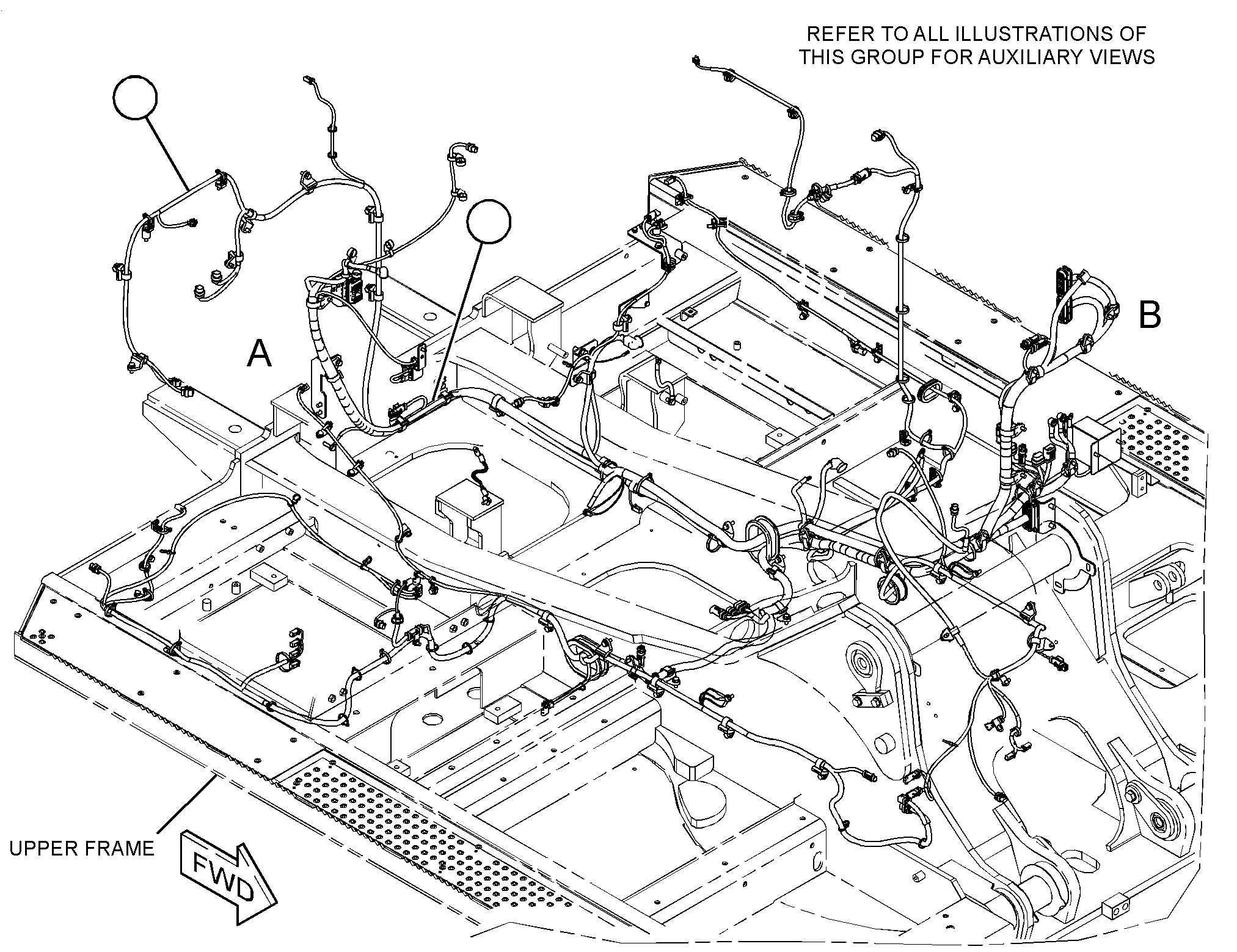

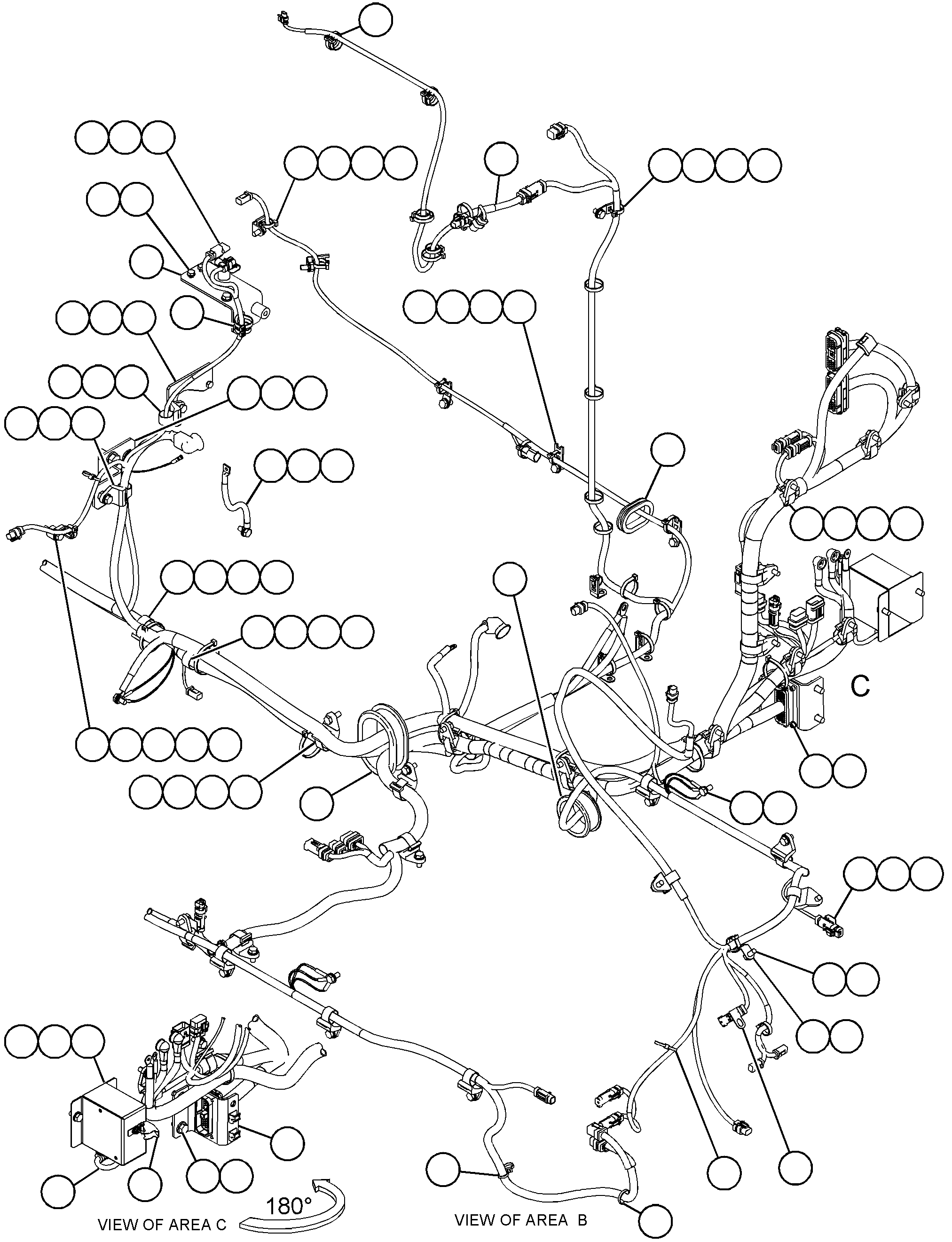

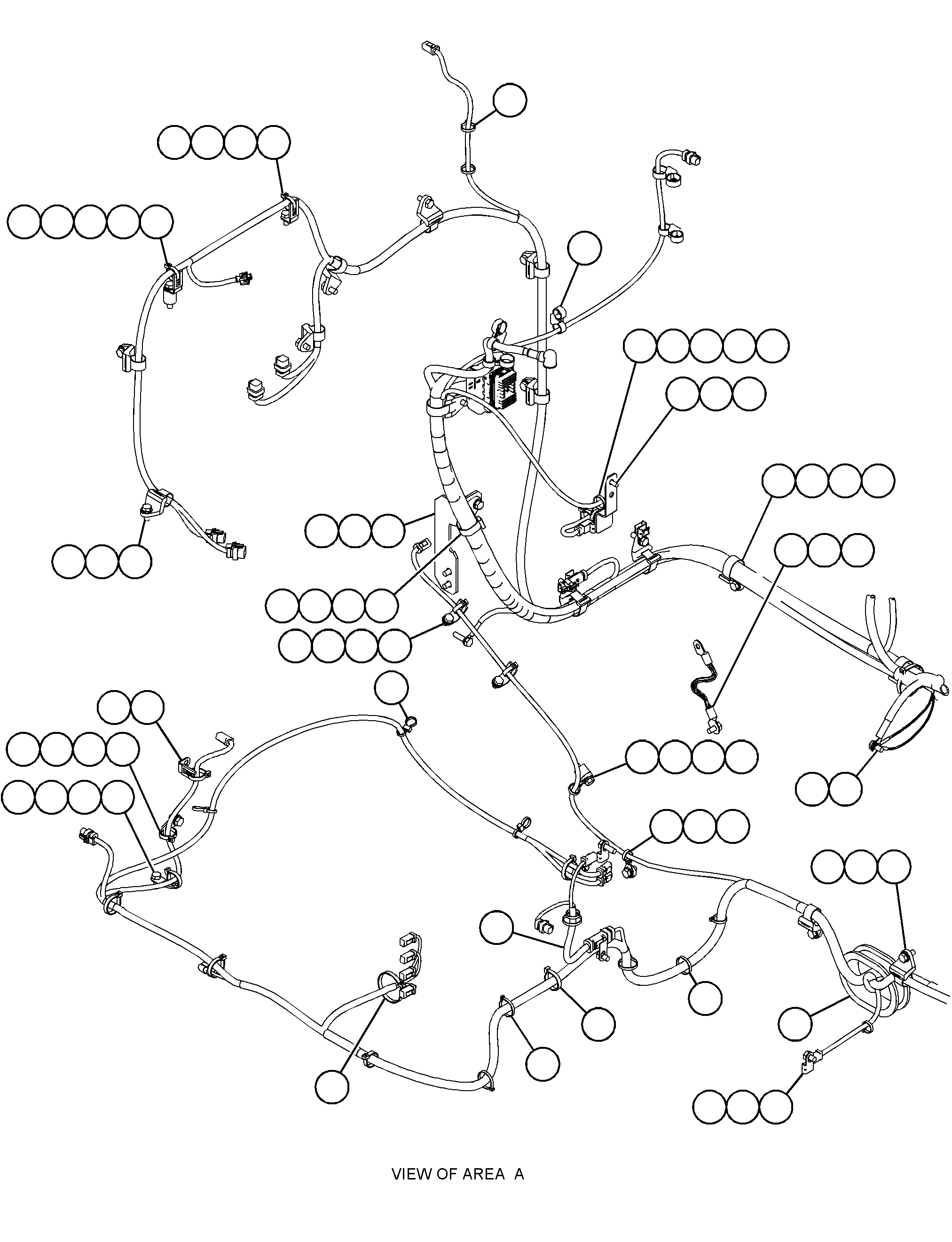

418-7923 WIRING GP-CHASSISS/N SFZ1-UP

Group No: 418-7923
Part NumberPart NameQty
3S20931 STRAP-CABLE11
7K11812 STRAP-CABLE53
7Y31953 GROMMET1
08745874 GROMMET1
10875525 GROMMET1
11148366 CLIP3
11148377 CLIP18
11601188 CLIP12
13433449 STRAP AS1
204161110 STRAP-CABLE (DUAL)1
251046711 BRACKET AS1
257299812 BRACKET AS1
296698013 SPACER (11X25X30-MM THK)1
336631414 BRACKET AS (ENGINE)1
336631615 BRACKET AS-ALTERNATOR1
342294916 BRACKET AS1
353451517 SWITCH GP-TOGGLE (ENGINE SHUTDOWN)1
1028803KIT-RECEPTACLE (3-PIN)1
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
369006518 BRACKET AS1
396798919 BRACKET AS-ALTERNATOR1
433681020 STRAP AS-GROUND1
0301712TERMINAL-RING (2-GA, 1/4-IN SCREW)1
3116184TERMINAL-RING (2-GA, 3/8-IN SCREW)1
437403421 HARNESS AS-CHASSIS1
1028802KIT-RECEPTACLE (2-PIN)1
1028803KIT-RECEPTACLE (3-PIN)1
1028801KIT-RECEPTACLE (12-PIN)1
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
3S2093STRAP-CABLE12
8T8737PLUG-SEAL102
1032529HOSE (107-CM)
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(72-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(175-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(55-CM)
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(14-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)202
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)202
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)4
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)7
9X3401PIN-CONNECTOR (16-GA TO 18-GA)85
1261767PIN-CONNECTOR (14-GA TO 16-GA)85
1532620PLUG AS-CONNECTOR (54-PIN, BLACK)1
1532630PLUG AS-CONNECTOR (54-PIN, BROWN)1
1636759SEAL1
1552255KIT-CONNECTING PLUG (12-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)16
3314222KIT-CONNECTING PLUG (12-PIN)1
1552258WEDGE-PLUG LOCK (12-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)2
1P0810TAPE-ELECTRICAL
1636637RECEPTACLE AS-CONNECTOR (54-PIN, BLACK)1
1779656KIT-CONNECTING PLUG (4-PIN)1
1851861SEAL-WIRE2
1893158SUPPRESSOR-ARC1
2397356PLUG AS-CONNECTOR (12-PIN)1
2304009PLUG AS-CONNECTOR (12-PIN)2
4550709SEAL-CONNECTOR1
3245678RESISTOR AS (120-OHM)3
4550704SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)9
4550704SEAL-CONNECTOR1
2818803PLUG AS-CONNECTOR (3-PIN)1
2304013PLUG AS-CONNECTOR (3-PIN)3
4550705SEAL-CONNECTOR1
2305008PLUG AS-CONNECTOR (4-PIN)2
2397349PLUG AS-CONNECTOR (4-PIN)1
4550706SEAL-CONNECTOR1
2813132PLUG AS-CONNECTOR (6-PIN)1
2397352PLUG AS-CONNECTOR (6-PIN)1
2818811PLUG AS-CONNECTOR (6-PIN)2
2305010PLUG AS-CONNECTOR (6-PIN)2
4550707SEAL-CONNECTOR1
2312295PLUG AS-CONNECTOR (8-PIN)1
4550708SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)5
2434506RECEPTACLE AS-CONNECTOR (3-PIN)2
2434508RECEPTACLE AS-CONNECTOR (6-PIN)1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
2743775CAP-CONNECTOR2
3422972CAP-CONNECTOR (2-PIN)3
3422975CAP-CONNECTOR (8-PIN)1
3949569SOCKET-CONNECTOR (16-GA TO 18-GA)40
3684831SOCKET-CONNECTOR (17-GA TO 20-GA)2
3748331PLUG AS-CONNECTOR (86-PIN)1
4355221KIT-BOLT (CONNECTOR)1
4355222SEAL1
3E5226SOCKET-CONNECTOR (12-GA TO 14-GA)10
5P6001TUBE-HEAT SHRINK (4.75-MM DIA)(0.2-M)
7N9017TERMINAL-RING (18-GA TO 22-GA, NO. 10 SCREW)1
1690705PLUG-SEAL40
2743774CAP-CONNECTOR2
5367946PLUG AS-CONNECTOR (2-PIN)1
4447604SOCKET-CONNECTOR (16-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)8
442842022 HARNESS AS-SENSOR1
1166158PLUG AS-CONNECTOR (2-PIN)1
1245640TERMINAL-SOCKET2
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)11
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)11
2304011PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)1
4550707SEAL-CONNECTOR1
2818803PLUG AS-CONNECTOR (3-PIN)1
4550705SEAL-CONNECTOR1
1006674SEAL-CONNECTOR2
442842123 HARNESS AS-CONTROL1
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)4
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)4
1261767PIN-CONNECTOR (14-GA TO 16-GA)4
9X3401PIN-CONNECTOR (16-GA TO 18-GA)4
1552270KIT-CONNECTING PLUG (2-PIN)1
2304011PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2434507RECEPTACLE AS-CONNECTOR (4-PIN)1
444675624 CABLE AS1
8T8827BOOT (RED)2
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)3
5P3454TERMINAL-RING (4-GA, 5/16-IN SCREW)2
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
9G4344TERMINAL-RING (4-GA, 1/2-IN SCREW)2
1352543BOOT (RED)2
8C3056CABLE (2-GA, RED)(290-CM)
3280072BOOT1
6T5598TERMINAL-RING (1-GA TO 2-GA, 5/16-IN SCREW)1
0301712TERMINAL-RING (2-GA, 1/4-IN SCREW)1
091903525 SPACER (11X25X20-MM THK)2
111483826 CLIP23
111483927 STRAP23
129911128 GROMMET1
132578929 CLIP (LADDER)11
177221530 STRAP-DUAL CLAMP5
231450231 GUARD1
4P758132 CLIP (LADDER)6
4P813433 CLIP (LADDER)1
6V568334 BOLT (M6X1X16-MM)4
7I267335 STRAP-CABLE6
8T412136 WASHER-HARD (11X21X2.5-MM THK)75
8T413637 BOLT (M10X1.5X25-MM)27
8T413738 BOLT (M10X1.5X20-MM)30
8T418539 BOLT (M10X1.5X50-MM)1
8T418640 BOLT (M10X1.5X40-MM)2
8T418941 BOLT (M8X1.25X20-MM)2
8T419142 BOLT (M10X1.5X16-MM)7
8T419243 BOLT (M12X1.75X25-MM)2
8T419544 BOLT (M10X1.5X30-MM)6
8T419645 BOLT (M10X1.5X35-MM)2
8T422346 WASHER-HARD (13.5X25.5X3-MM THK)2
8T422447 WASHER-HARD (8.8X16X2-MM THK)4
8T477948 BOLT (M16X2X35-MM)2
8T490849 BOLT (M8X1.25X25-MM)2
9X825650 WASHER (6.6X12X2-MM THK)4
9X825751 WASHER (17.5X30X3.5-MM THK)2
