System And Components

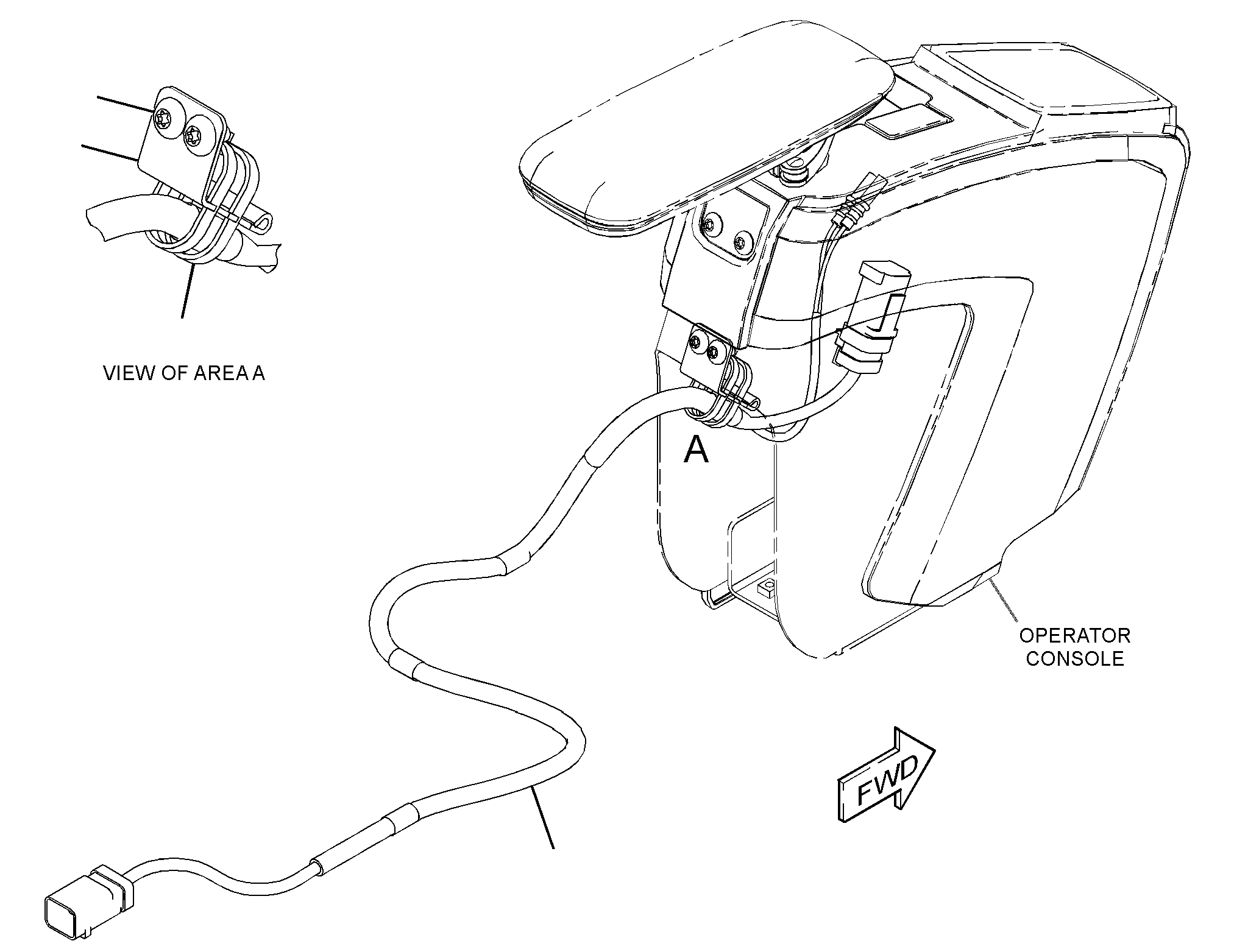

324-5726 WIRING GP-CONSOLE -RHS/N SFZ1-UP
Group No: 324-5726
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 2 | |
| 3245727 | 2 HARNESS AS-CONSOLE | 1 | |
| 3S2093 | STRAP-CABLE | 4 | |
| 7Y3963 | TERMINAL-BULLET (FEMALE) | 2 | |
| 7Y3965 | TUBE | 2 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 2397352 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 2647032 | SEAL-CONNECTOR | 1 | |
| 2434509 | RECEPTACLE AS-CONNECTOR (8-PIN) | 1 | |
| 3422974 | CAP-CONNECTOR (6-PIN) | 1 | |
| 3245732 | 3 BRACKET | 1 | |
| 9X2042 | 4 SCREW-TRUSS HEAD (M6X1X12-MM) (M6X1X12-MM) | 2 |
