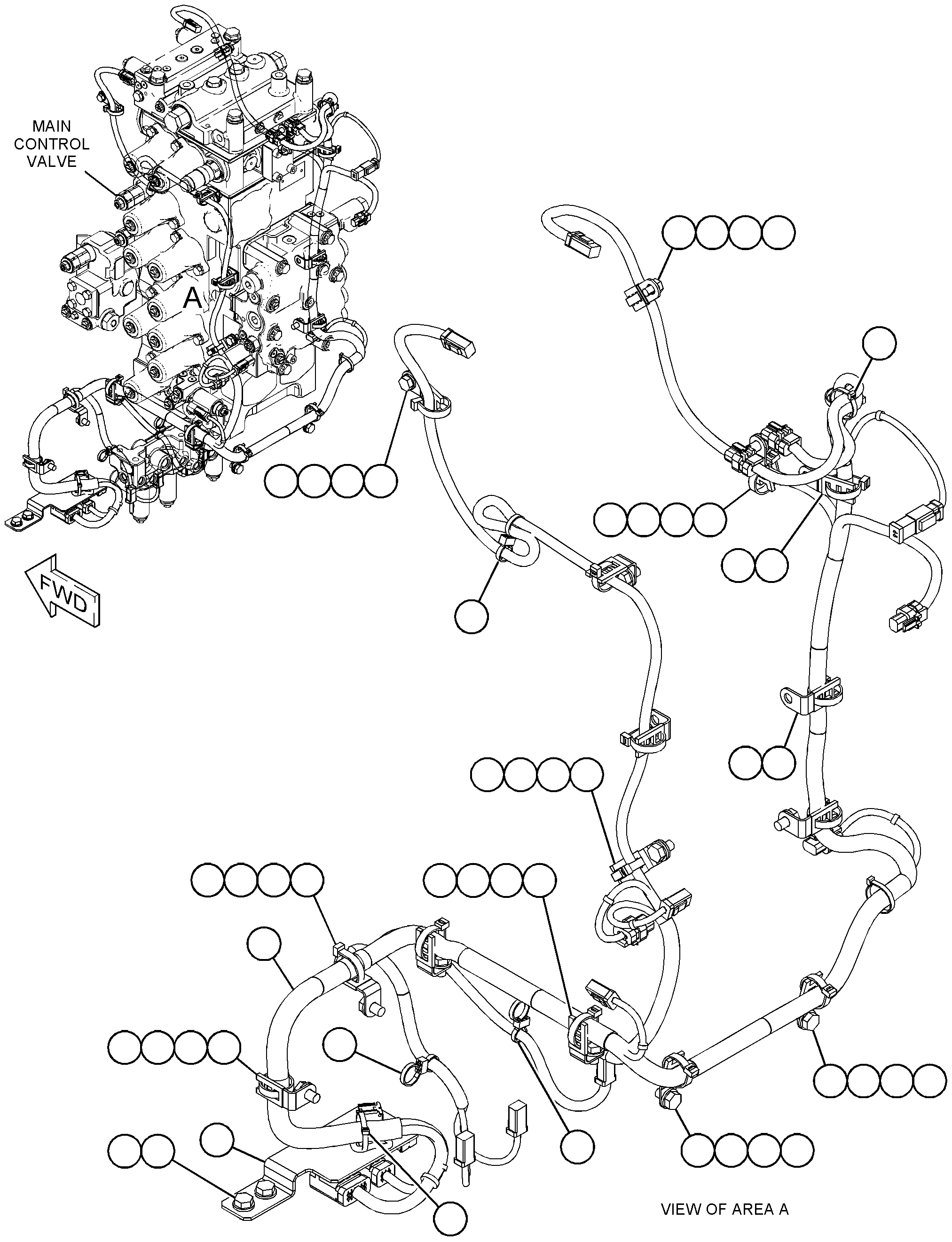

418-7924 WIRING GP-VALVES/N SFZ1-UP

Group No: 418-7924
Part NumberPart NameQty
34231561 BRACKET AS-VALVE1
36901552 HARNESS AS-VALVE1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)13
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)18
3S2093STRAP-CABLE8
8T8737PLUG-SEAL2
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(35-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)12
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)12
9X3401PIN-CONNECTOR (16-GA TO 18-GA)5
1261767PIN-CONNECTOR (14-GA TO 16-GA)5
1552270KIT-CONNECTING PLUG (2-PIN)8
2304011PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)2
2370227PLUG AS-CONNECTOR (3-PIN)2
4550705SEAL-CONNECTOR1
2434508RECEPTACLE AS-CONNECTOR (6-PIN)1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
13257893 CLIP (LADDER)9
3S20934 STRAP-CABLE4
4P75815 CLIP (LADDER)6
7I26736 STRAP-CABLE3
7K11817 STRAP-CABLE15
8T41218 WASHER-HARD (11X21X2.5-MM THK)12
8T41919 BOLT (M10X1.5X16-MM)12
8T419910 BOLT (M8X1.25X12-MM)2
8T422411 WASHER-HARD (8.8X16X2-MM THK)2
