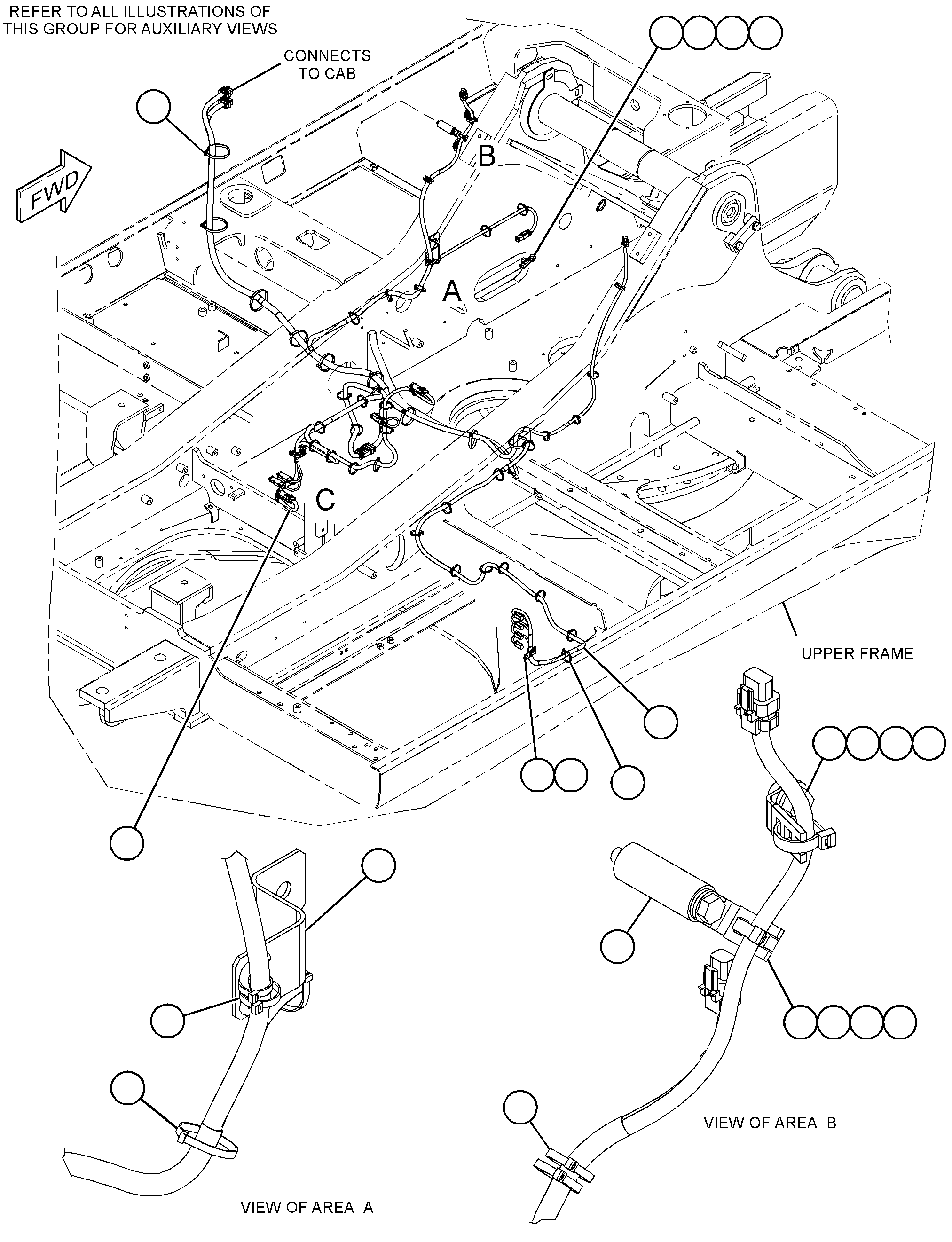

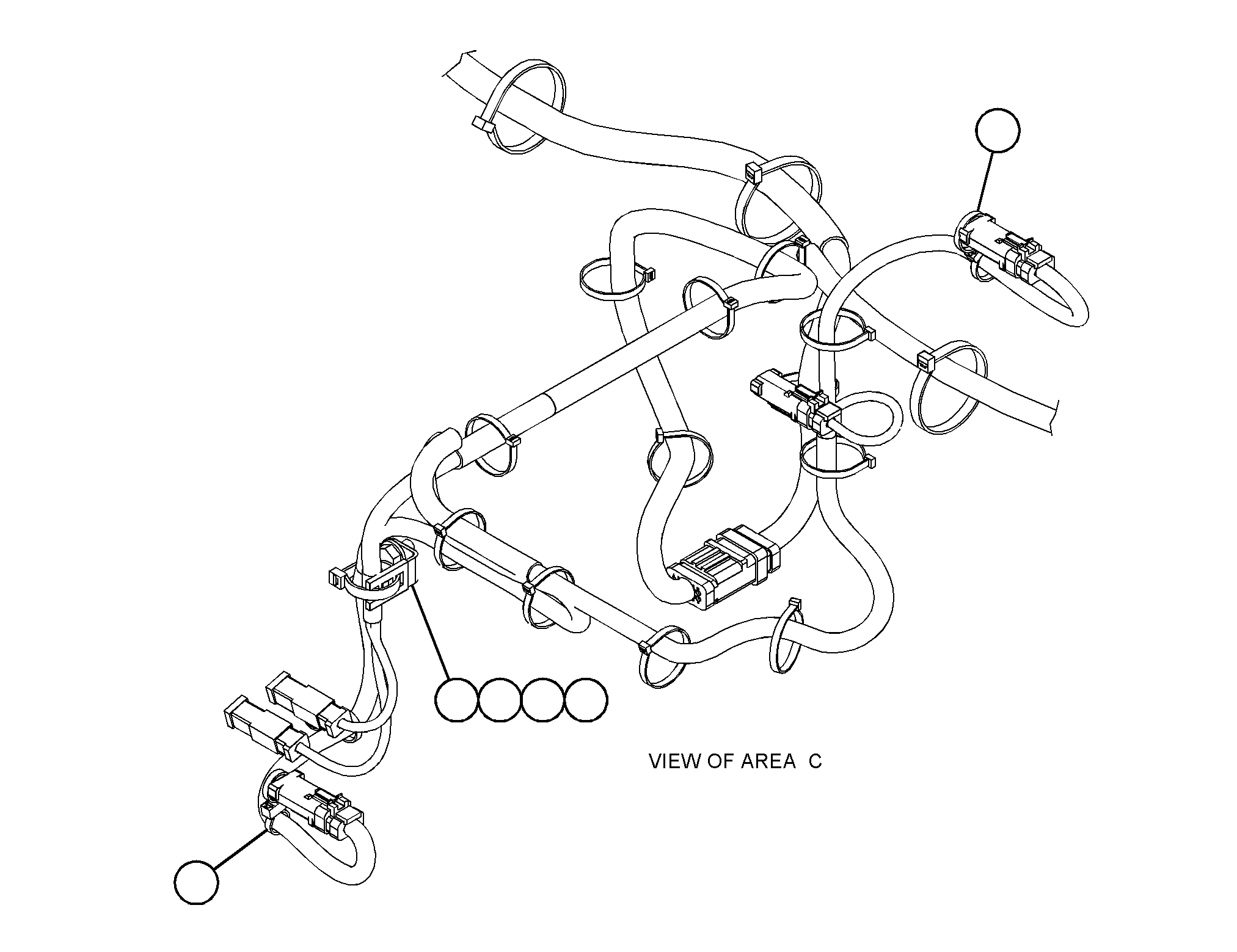

494-8504 WIRING GP-CHASSIS -COMBINED FUNCTION, SMARTBOOMS/N EBK1-UP; FBR1-UP

Group No: 494-8504
Part NumberPart NameQty
3S20931 STRAP-CABLE38
7K11812 STRAP-CABLE14
35083883 SPACER (11X25X65-MM THK)1
36403644 BRACKET AS1
48062165 HARNESS AS-SENSOR (SMARTBOOM)1
50109126 HARNESS AS-CHASSIS (COMBINED FUNCTION, SMARTBOOM)1
13257897 CLIP (LADDER)2
20416118 STRAP-CABLE (DUAL)1
4P74299 CLIP (LADDER)1
4P758110 CLIP (LADDER)2
7I267311 STRAP-CABLE2
7X254812 BOLT (M12X1.75X16-MM)1
8T412113 WASHER-HARD (11X21X2.5-MM THK)3
8T417214 BOLT (M10X1.5X80-MM)1
8T419115 BOLT (M10X1.5X16-MM)2
8T422316 WASHER-HARD (13.5X25.5X3-MM THK)1
