System And Components

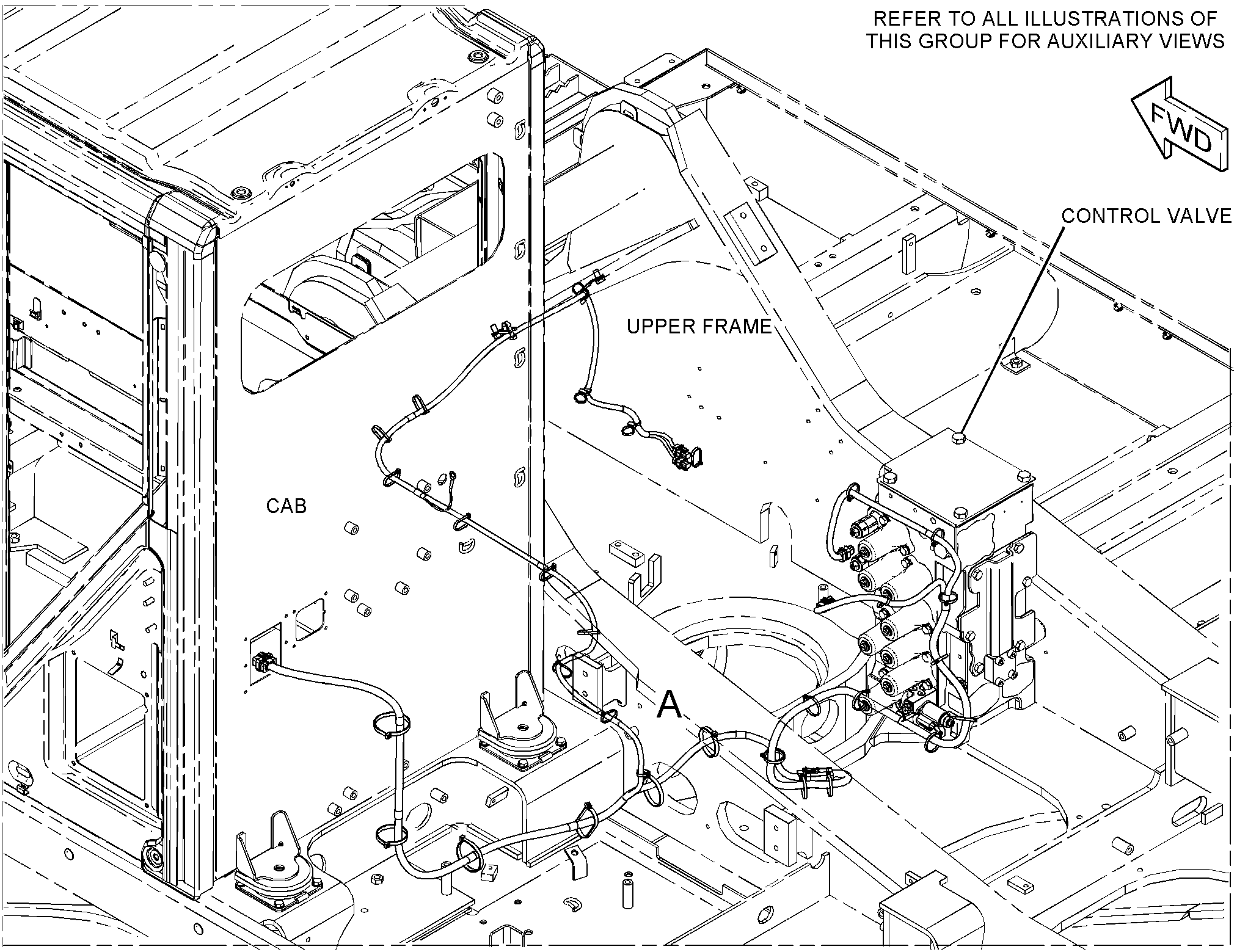

494-8507 WIRING GP-CHASSIS -QUICK COUPLER, HIGH PRESSURES/N FBR1-UP
Group No: 494-8507
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 22 | |
| 7K1181 | 2 STRAP-CABLE | 8 | |
| 4806219 | 3 HARNESS AS-SENSOR | 1 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 6 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 6 | |
| 2304013 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 2434508 | RECEPTACLE AS-CONNECTOR (6-PIN) | 1 | |
| 2818803 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 5010914 | 4 HARNESS AS-CHASSIS | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 6 | |
| 8T8737 | PLUG-SEAL | 4 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 12 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 12 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 1 | |
| 4550709 | SEAL-CONNECTOR | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 2 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 2305010 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 4550707 | SEAL-CONNECTOR | 1 | |
| 4P7581 | 5 CLIP (LADDER) | 2 | |
| 7I2673 | 6 STRAP-CABLE | 3 | |
| 8T4121 | 7 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4137 | 8 BOLT (M10X1.5X20-MM) | 2 |
