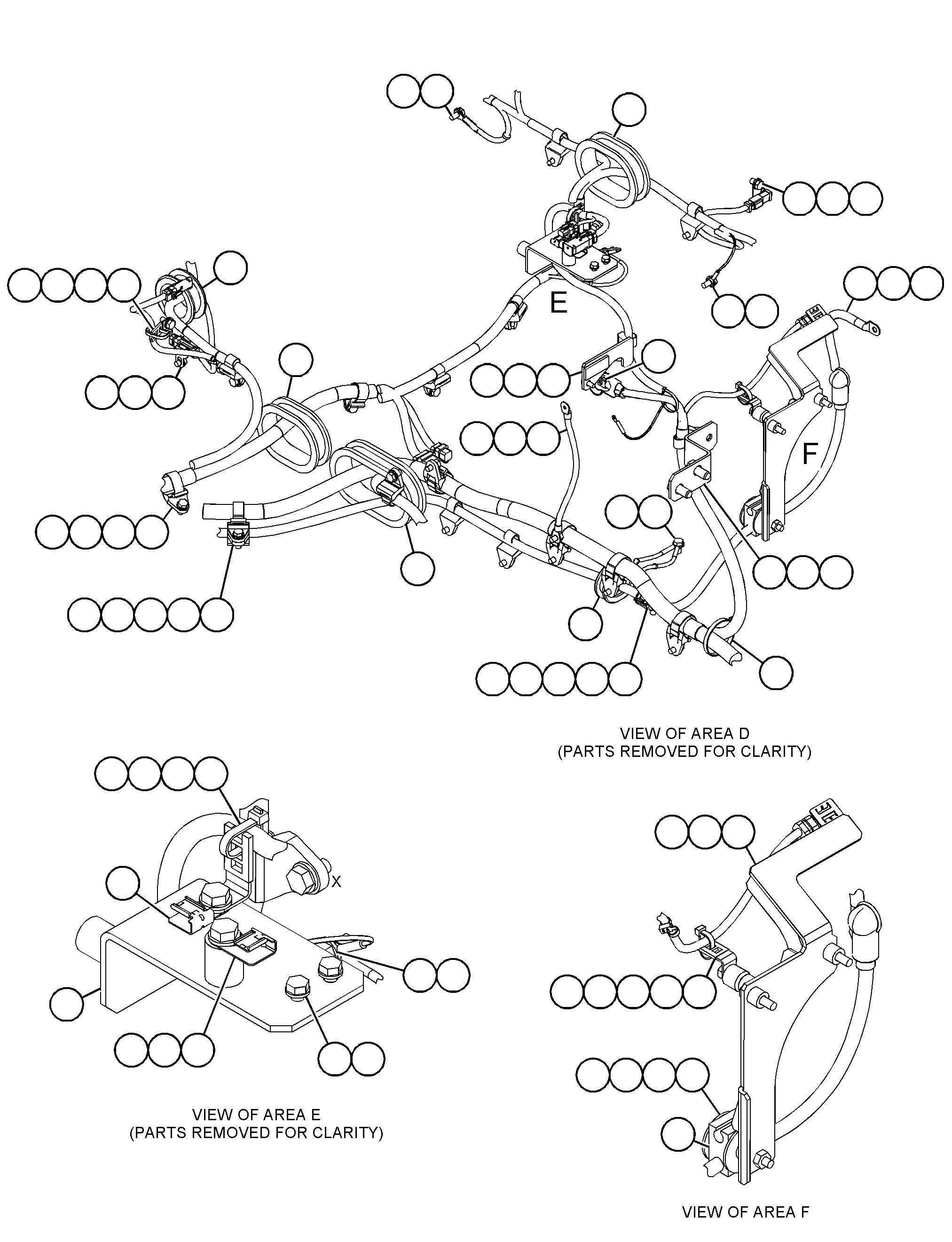

Assembly
100%

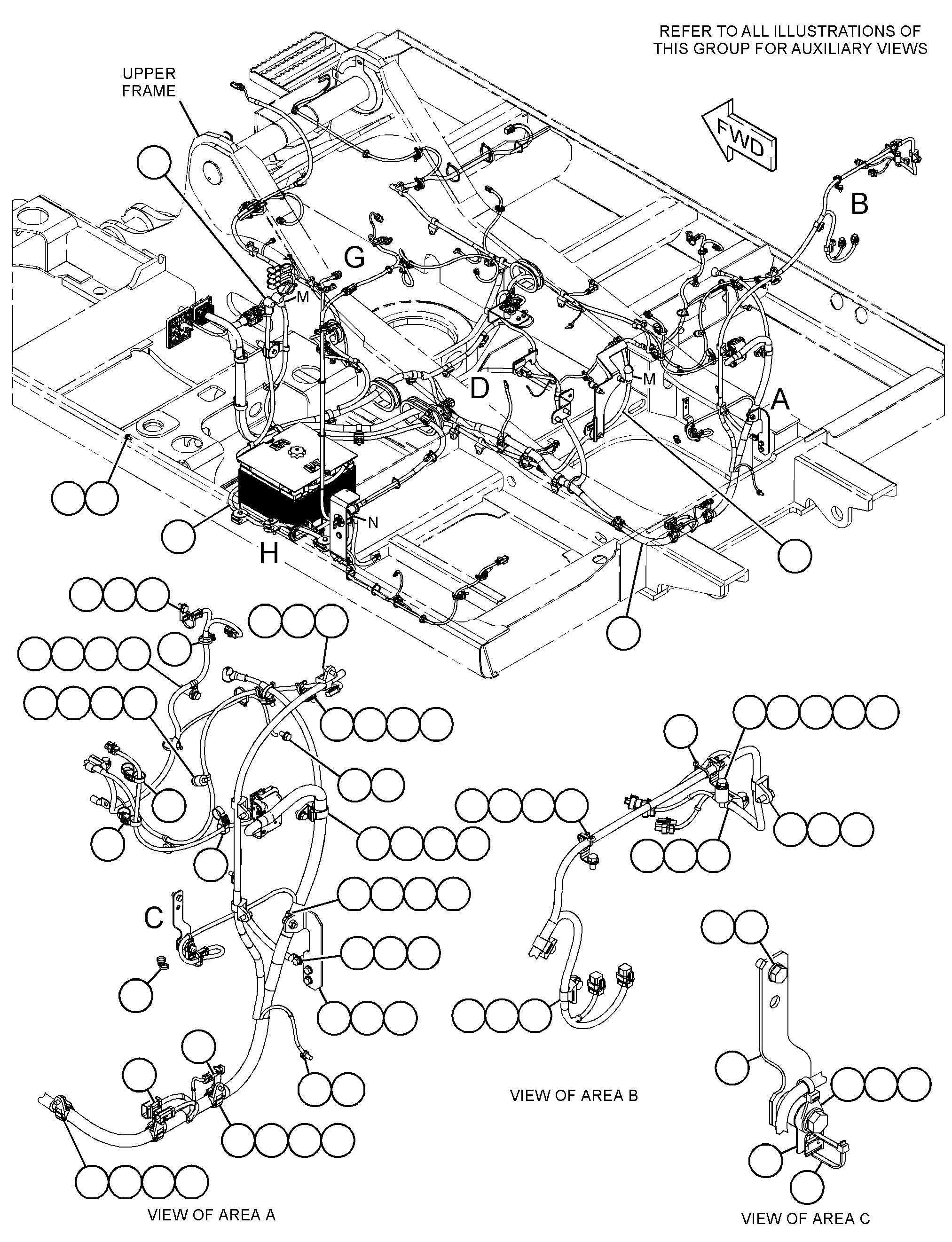

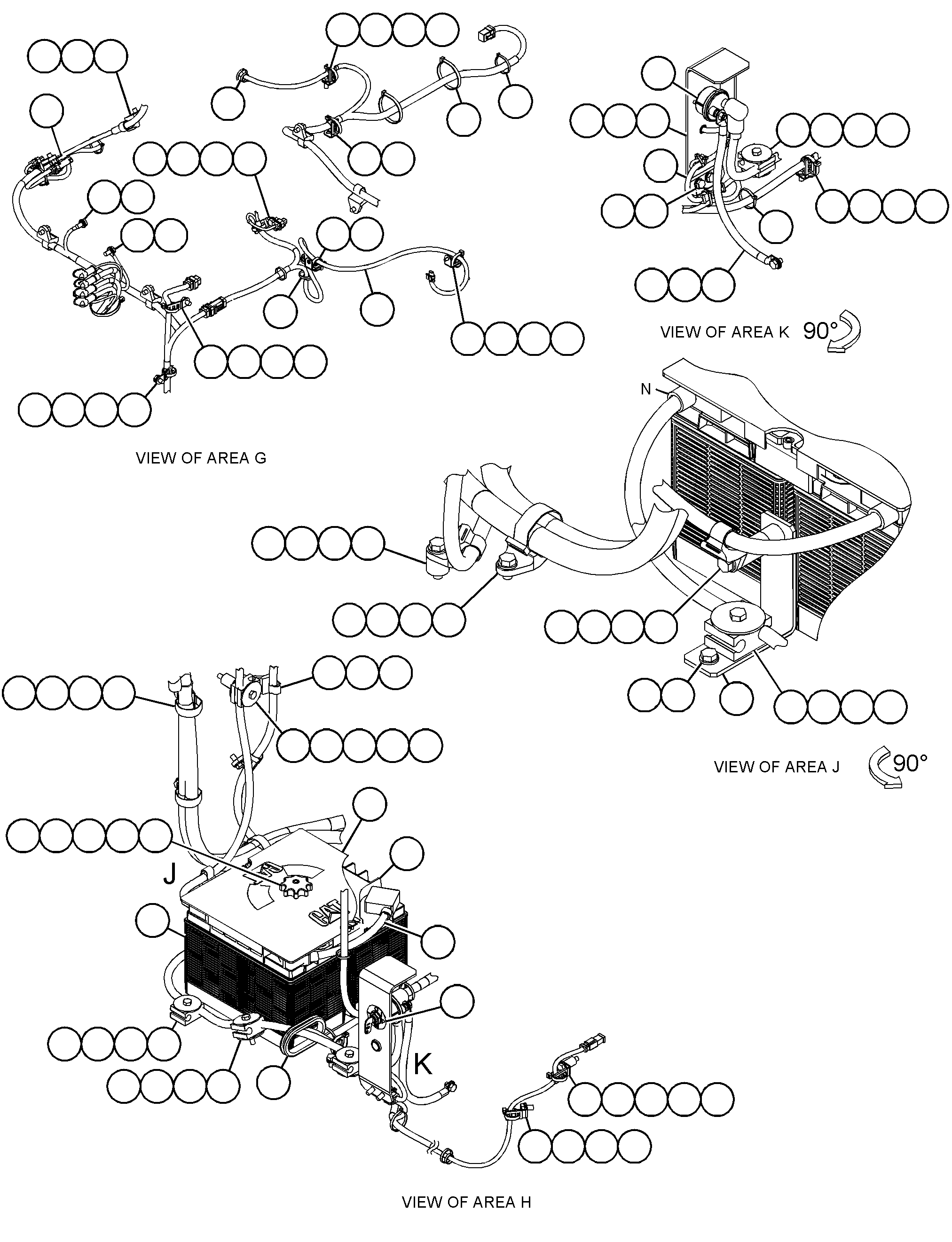

494-8496 BATTERY & WIRING GPS/N DPL1-UP

Group No: 494-8496
Part NumberPart NameQty
3E83201 PLATE-INSTRUCTION (BATTERY)1
3S20932 STRAP-CABLE46
4I78893 SPACER (11X25X45-MM THK)2
5I82704 COVER-BATTERY1
6G22565 CLAMP6
7K11816 STRAP-CABLE23
7N07197 SWITCH GP-DISCONNECT (BATTERY)1
7Y31968 GROMMET1
08745879 GROMMET2
096586310 GROMMET1
111483611 CLIP5
111483712 CLIP30
111483913 STRAP15
116011814 CLIP12
124098615 GROMMET1
132180516 STRAP AS-GROUND2
238250117 KNOB1
238252818 ROD1
9X340419 BATTERY GP (12-VOLT, MAINTENANCE FREE, WET)2
1152422BATTERY GP (12-VOLT, MAINTENANCE FREE, WET)2
1231373CAP AS-FILLER (7/8-9-THD)6
296698020 SPACER (11X25X30-MM THK)1
328013221 CABLE AS1
1598049CABLE (00-GA, RED)(31-CM)
9G0002COVER AS-TERMINAL (RED)1
9G0005COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
336631422 BRACKET AS (ENGINE)1
336631623 BRACKET AS-ALTERNATOR1
342294924 BRACKET AS1
342298425 HARNESS AS-SENSOR (AIR INLET)(AIR INLET)1
3S2093STRAP-CABLE2
1006674SEAL-CONNECTOR2
1166161CAP-CONNECTOR1
1245640TERMINAL-SOCKET2
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)5
9X3401PIN-CONNECTOR (16-GA TO 18-GA)6
2304011PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2434508RECEPTACLE AS-CONNECTOR (6-PIN)1
2818803PLUG AS-CONNECTOR (3-PIN)1
4550705SEAL-CONNECTOR1
369006226 CABLE AS (BREAKER)1
1598049CABLE (00-GA, RED)(97-CM)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
3010091COVER-TERMINAL (RED)1
9G0002COVER AS-TERMINAL (RED)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
369006327 BRACKET AS1
369006528 BRACKET AS1
396798929 BRACKET AS-ALTERNATOR1
415368730 STRAP AS-GROUND1
0301712TERMINAL-RING (2-GA, 1/4-IN SCREW)1
3116184TERMINAL-RING (2-GA, 3/8-IN SCREW)1
419391131 LAMP GP-INDICATOR (12/24-VOLT, AMBER)1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
9X1386SLEEVE (29-CM)
425785132 BRACKET AS1
427010033 CABLE AS-STARTER1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
8N0869COVER-TERMINAL (RED)1
1598049CABLE (00-GA, RED)(273-CM)
3010091COVER-TERMINAL (RED)1
450933234 BRACKET AS1
451217535 WASHER-HARD (17.5X30X3.5-MM THK)2
451218036 BOLT (M16X2X35-MM)2
453625837 CABLE AS (DISCONNECT)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G0005COVER AS-TERMINAL (BLACK)(NEGATIVE, RH)1
9G8909COVER-TERMINAL (BLACK)(DISCONNECT SWITCH)1
9W3417TERMINAL AS1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598050CABLE (00-GA, BLACK)(145-CM)
501091038 HARNESS AS-CHASSIS (MAIN)(CAB BULKHEAD)1
1028802KIT-RECEPTACLE (2-PIN)2
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)51
3S2093STRAP-CABLE23
6T5598TERMINAL-RING (1-GA TO 2-GA, 5/16-IN SCREW)1
7T0094SOCKET-CONNECTOR (12-GA TO 14-GA)10
9X0196TERMINAL AS (16-GA)2
8T8737PLUG-SEAL82
8T8799BOOT (RED)4
8T8827BOOT (RED)1
1032529HOSE (67-CM)
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)19
1151184TERMINAL-RING (2-GA, 1/4-IN SCREW)1
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(20-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(110-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(25-CM)
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(8-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)78
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)78
2L8052TERMINAL-RING (6-GA, 3/8-IN SCREW)1
2L8060TERMINAL-RING (8-GA, 3/8-IN SCREW)1
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)5
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
2L8076TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW)1
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)3
9X3401PIN-CONNECTOR (16-GA TO 18-GA)14
1261767PIN-CONNECTOR (14-GA TO 16-GA)14
1779656KIT-CONNECTING PLUG (4-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)7
1690705PLUG-SEAL41
1851860SEAL-WIRE2
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)10
4550704SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)2
4550705SEAL-CONNECTOR1
2397349PLUG AS-CONNECTOR (4-PIN)1
2305008PLUG AS-CONNECTOR (4-PIN)1
4550706SEAL-CONNECTOR1
2397352PLUG AS-CONNECTOR (6-PIN)2
2818811PLUG AS-CONNECTOR (6-PIN)2
2305010PLUG AS-CONNECTOR (6-PIN)3
4550707SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)2
2434507RECEPTACLE AS-CONNECTOR (4-PIN)1
2472694RECEPTACLE AS-CONNECTOR (12-PIN)1
2645732PLUG AS-CONNECTOR (120-PIN)1
2887324SEAL-CONNECTOR1
3245678RESISTOR AS (120-OHM)1
2647029SEAL-CONNECTOR1
3245824PLUG AS-CONNECTOR (1-PIN)1
3245825SOCKET-CONNECTOR (4-GA)1
3280072BOOT1
3422972CAP-CONNECTOR (2-PIN)2
3422973CAP-CONNECTOR (3-PIN)1
3422974CAP-CONNECTOR (6-PIN)1
3949569SOCKET-CONNECTOR (16-GA TO 18-GA)39
3684831SOCKET-CONNECTOR (17-GA TO 20-GA)2
3748331PLUG AS-CONNECTOR (86-PIN)1
4355221KIT-BOLT (CONNECTOR)
4355222SEAL1
4353145TERMINAL AS-RING3
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(3-CM)
4353144TERMINAL-RING1
091903539 SPACER (11X25X20-MM THK)4
111483840 CLIP15
132578941 CLIP (LADDER)13
156617542 CLIP (LADDER)1
167358343 STRAP AS-GROUND1
177221544 STRAP-DUAL CLAMP3
2G876745 WASHER (10.5X60X3-MM THK)10
306852646 GROMMET1
4P758147 CLIP (LADDER)3
5C726148 NUT (M8X1.25-THD)2
6G226349 SPACER (10.5X19X28.5-MM THK)8
6W600550 HOLD-DOWN-BATTERY1
7I267351 STRAP-CABLE1
7X262152 BOLT (M10X1.5X12-MM)1
7Y816553 GROMMET1
8T188954 CLIP (SLOT)1
8T189055 CLIP (TAB)1
8T412156 WASHER-HARD (11X21X2.5-MM THK)90
8T413357 NUT (M10X1.5-THD)1
8T413658 BOLT (M10X1.5X25-MM)15
8T413759 BOLT (M10X1.5X20-MM)52
8T417260 BOLT (M10X1.5X80-MM)1
8T418261 BOLT (M10X1.5X45-MM)1
8T418562 BOLT (M10X1.5X50-MM)5
8T418663 BOLT (M10X1.5X40-MM)5
8T418964 BOLT (M8X1.25X20-MM)2
8T419165 BOLT (M10X1.5X16-MM)11
8T419566 BOLT (M10X1.5X30-MM)2
8T419867 BOLT (M10X1.5X100-MM)1
8T422468 WASHER-HARD (8.8X16X2-MM THK)4
8T422669 WASHER-PLATED (10.5X45X3-MM THK)1
8T490870 BOLT (M8X1.25X25-MM)2
8T497071 BOLT (M6X1X14-MM)1
8T500572 BOLT (M10X1.5X70-MM)1
8T646673 BOLT (M10X1.5X60-MM)1
9X825674 WASHER (6.6X12X2-MM THK)1
