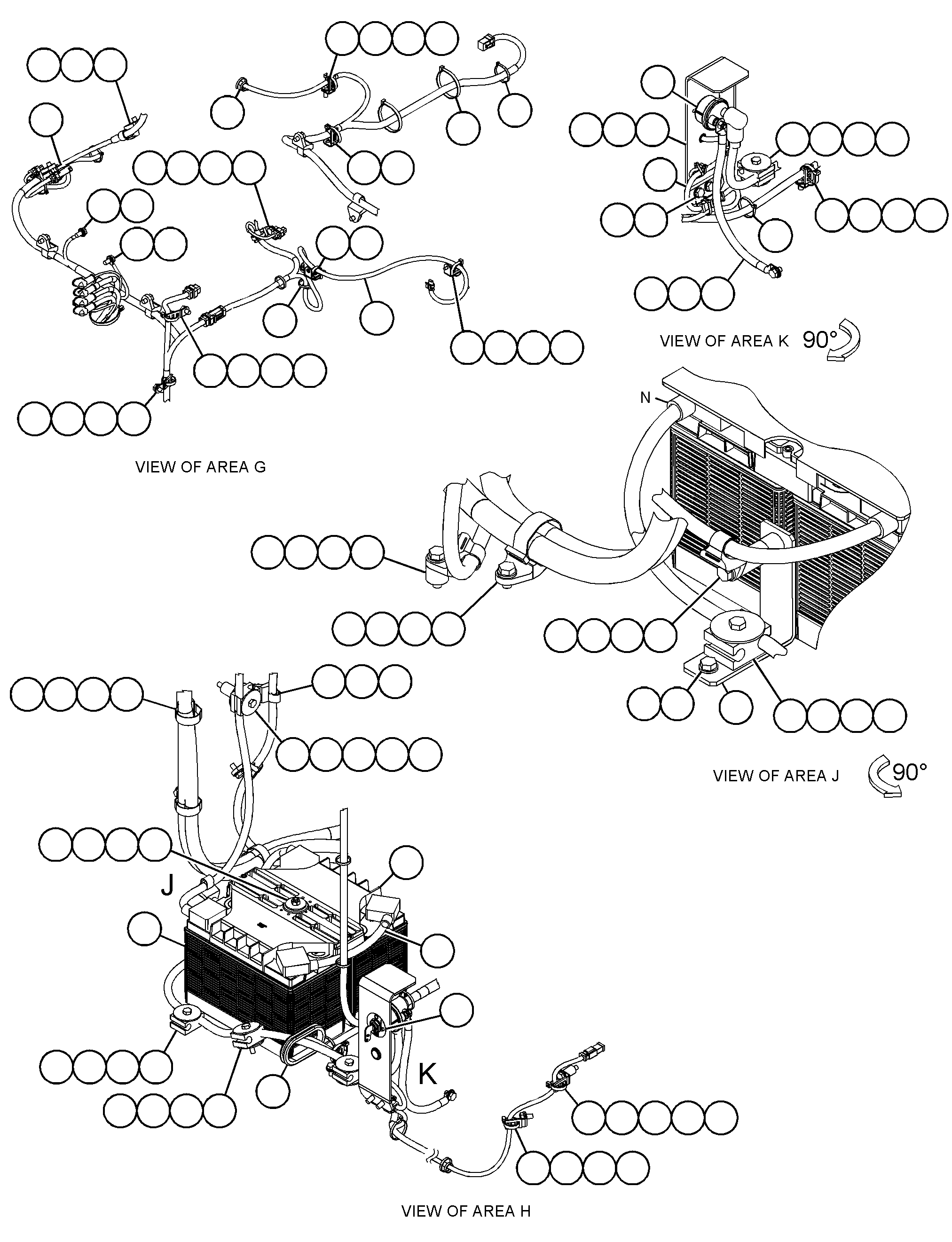

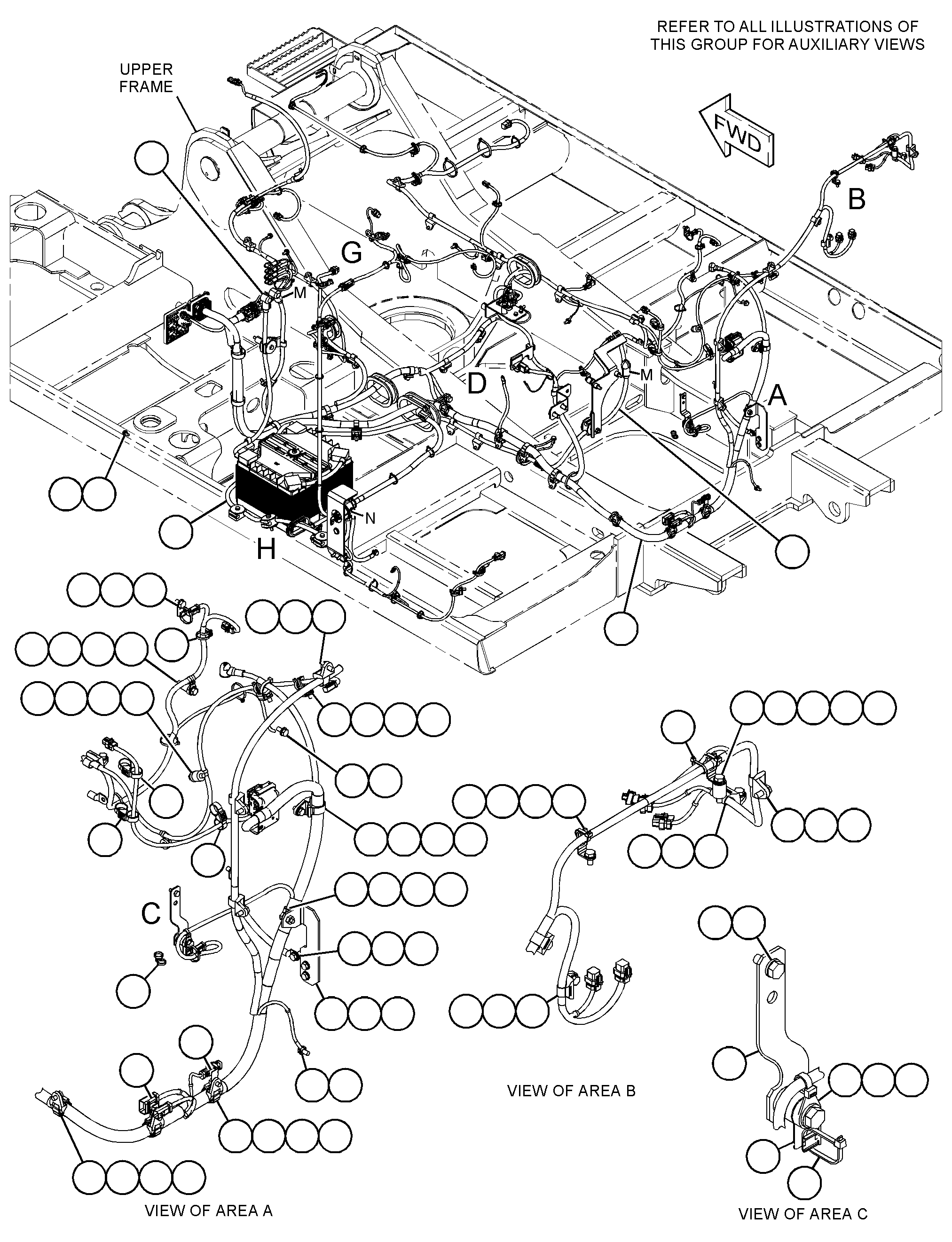

494-8496 BATTERY & WIRING GPS/N DPL1-UP

Group No: 494-8496

Part Number	Part Name	Qty
3E8320	1 PLATE-INSTRUCTION (BATTERY)	1
3S2093	2 STRAP-CABLE	46
4I7889	3 SPACER (11X25X45-MM THK)	2
6G2256	5 CLAMP	6
7K1181	6 STRAP-CABLE	23
7N0719	7 SWITCH GP-DISCONNECT (BATTERY)	1
7Y3196	8 GROMMET	1
0874587	9 GROMMET	2
0965863	10 GROMMET	1
1114836	11 CLIP	5
1114837	12 CLIP	30
1114839	13 STRAP	15
1160118	14 CLIP	12
1240986	15 GROMMET	1
1321805	16 STRAP AS-GROUND	2
5202491	18 ROD	1
9X3404	19 BATTERY GP (12-VOLT, MAINTENANCE FREE, WET)	2
1152422	BATTERY GP (12-VOLT, MAINTENANCE FREE, WET)	2
1231373	CAP AS-FILLER (7/8-9-THD)	6
2966980	20 SPACER (11X25X30-MM THK)	1
3280132	21 CABLE AS	1
1598049	CABLE (00-GA, RED)(31-CM)
9G0002	COVER AS-TERMINAL (RED)	1
9G0005	COVER AS-TERMINAL (BLACK)	1
8L8413	STRAP-CABLE (WHITE)	1
8C5918	TERMINAL AS-BATTERY (NEGATIVE)	1
8T9756	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
3366314	22 BRACKET AS (ENGINE)	1
7T1099	LINK	1
7Y8763	BOSS (M10X1.5X25-MM)	2
8T3490	NUT-WELD (M10X1.5-THD)	1
3366316	23 BRACKET AS-ALTERNATOR	1
8T3490	NUT-WELD (M10X1.5-THD)	1
3422949	24 BRACKET AS	1
9R2060	BOSS (M10X1.5X21-MM)	1
3422984	25 HARNESS AS-SENSOR (AIR INLET)	1
3690062	26 CABLE AS (BREAKER)	1
1598049	CABLE (00-GA, RED)(97-CM)
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
3010091	COVER-TERMINAL (RED)	1
9G0002	COVER AS-TERMINAL (RED)	1
8L8413	STRAP-CABLE (WHITE)	1
8T9756	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
3690063	27 BRACKET AS	1
9R2060	BOSS (M10X1.5X21-MM)	1
3690065	28 BRACKET AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
3967989	29 BRACKET AS-ALTERNATOR	1
9R2821	BOSS (M10X1.5X15-MM)	1
4153687	30 STRAP AS-GROUND	1
0301712	TERMINAL-RING (2-GA, 1/4-IN SCREW)	1
3116184	TERMINAL-RING (2-GA, 3/8-IN SCREW)	1
4193911	31 LAMP GP-INDICATOR (12/24-VOLT, AMBER)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
4257851	32 BRACKET AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
3615420	CLIP	1
4270100	33 CABLE AS-STARTER	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	2
8N0869	COVER-TERMINAL (RED)	1
1598049	CABLE (00-GA, RED)(273-CM)
3010091	COVER-TERMINAL (RED)	1
4509332	34 BRACKET AS	1
7T1099	LINK	2
4512175	35 WASHER-HARD (17.5X30X3.5-MM THK)	2
4512180	36 BOLT (M16X2X35-MM)	2
4536258	37 CABLE AS (DISCONNECT)	1
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
9G0005	COVER AS-TERMINAL (BLACK)(NEGATIVE, RH)	1
8L8413	STRAP-CABLE (WHITE)	1
9G8909	COVER-TERMINAL (BLACK)(DISCONNECT SWITCH)	1
8C5918	TERMINAL AS-BATTERY (NEGATIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
1598050	CABLE (00-GA, BLACK)(145-CM)
5010910	38 HARNESS AS-CHASSIS (MAIN)(CAB BULKHEAD)	1
0919035	39 SPACER (11X25X20-MM THK)	4
1114838	40 CLIP	15
1325789	41 CLIP (LADDER)	13
1566175	42 CLIP (LADDER)	1
1673583	43 STRAP AS-GROUND	1
1772215	44 STRAP-DUAL CLAMP	3
2G8767	45 WASHER (10.5X60X3-MM THK)	10
3068526	46 GROMMET	1
4P7581	47 CLIP (LADDER)	3
5C7261	48 NUT (M8X1.25-THD)	2
6G2263	49 SPACER (10.5X19X28.5-MM THK)	8
6W6005	50 HOLD-DOWN-BATTERY	1
7I2673	51 STRAP-CABLE	1
7X2621	52 BOLT (M10X1.5X12-MM)	1
7Y8165	53 GROMMET	1
8T1889	54 CLIP (SLOT)	1
8T1890	55 CLIP (TAB)	1
8T4121	56 WASHER-HARD (11X21X2.5-MM THK)	90
3445675	57 NUT (M10X1.5-THD)	1
8T4136	58 BOLT (M10X1.5X25-MM)	15
8T4137	59 BOLT (M10X1.5X20-MM)	52
8T4172	60 BOLT (M10X1.5X80-MM)	1
8T4182	61 BOLT (M10X1.5X45-MM)	1
8T4185	62 BOLT (M10X1.5X50-MM)	5
8T4186	63 BOLT (M10X1.5X40-MM)	5
8T4189	64 BOLT (M8X1.25X20-MM)	2
8T4191	65 BOLT (M10X1.5X16-MM)	11
8T4195	66 BOLT (M10X1.5X30-MM)	2
8T4198	67 BOLT (M10X1.5X100-MM)	1
8T4224	68 WASHER-HARD (8.8X16X2-MM THK)	4
8T4226	69 WASHER-PLATED (10.5X45X3-MM THK)	1
8T4908	70 BOLT (M8X1.25X25-MM)	2
8T4970	71 BOLT (M6X1X14-MM)	1
8T5005	72 BOLT (M10X1.5X70-MM)	1
8T6466	73 BOLT (M10X1.5X60-MM)	1
9X8256	74 WASHER (6.6X12X2-MM THK)	1
