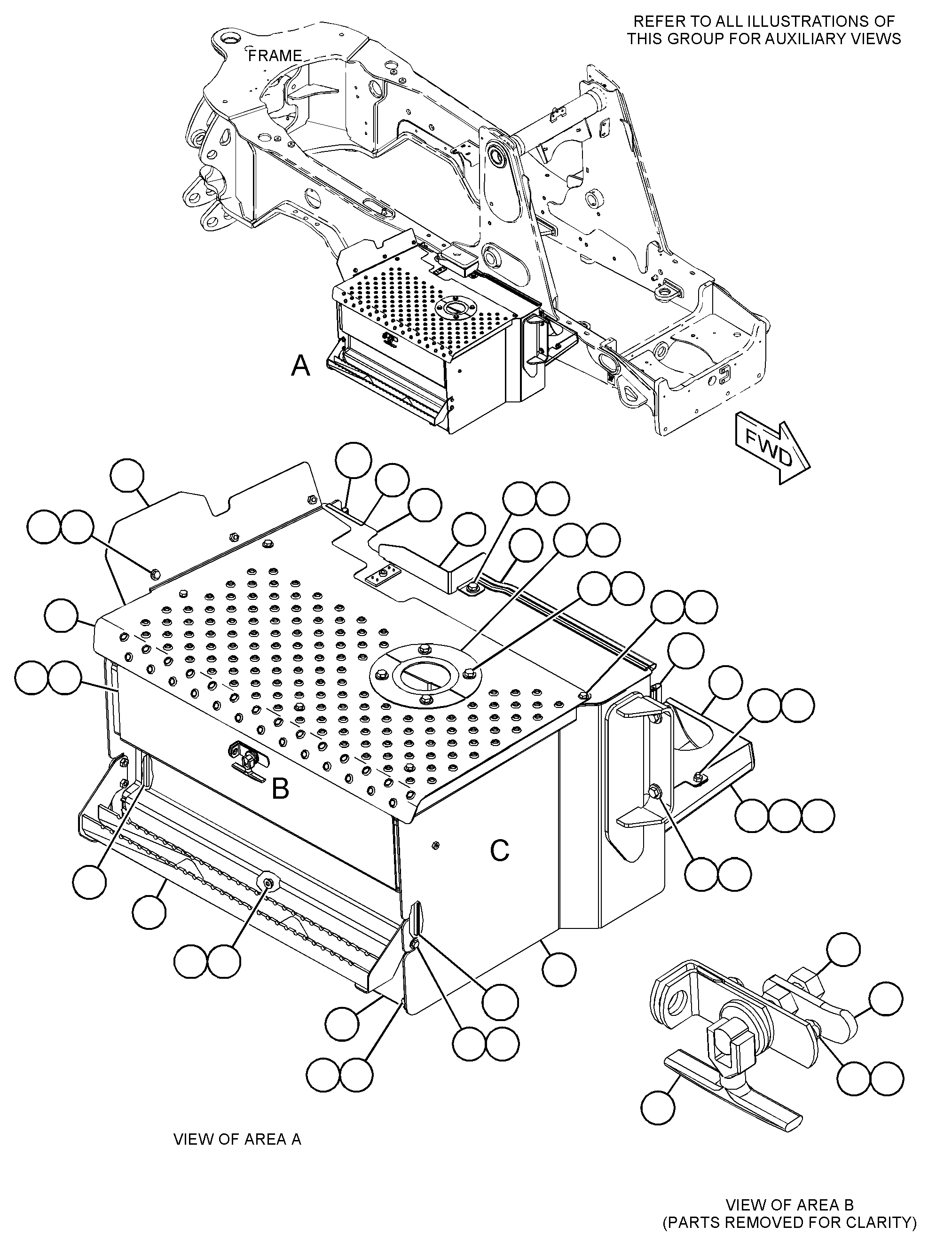

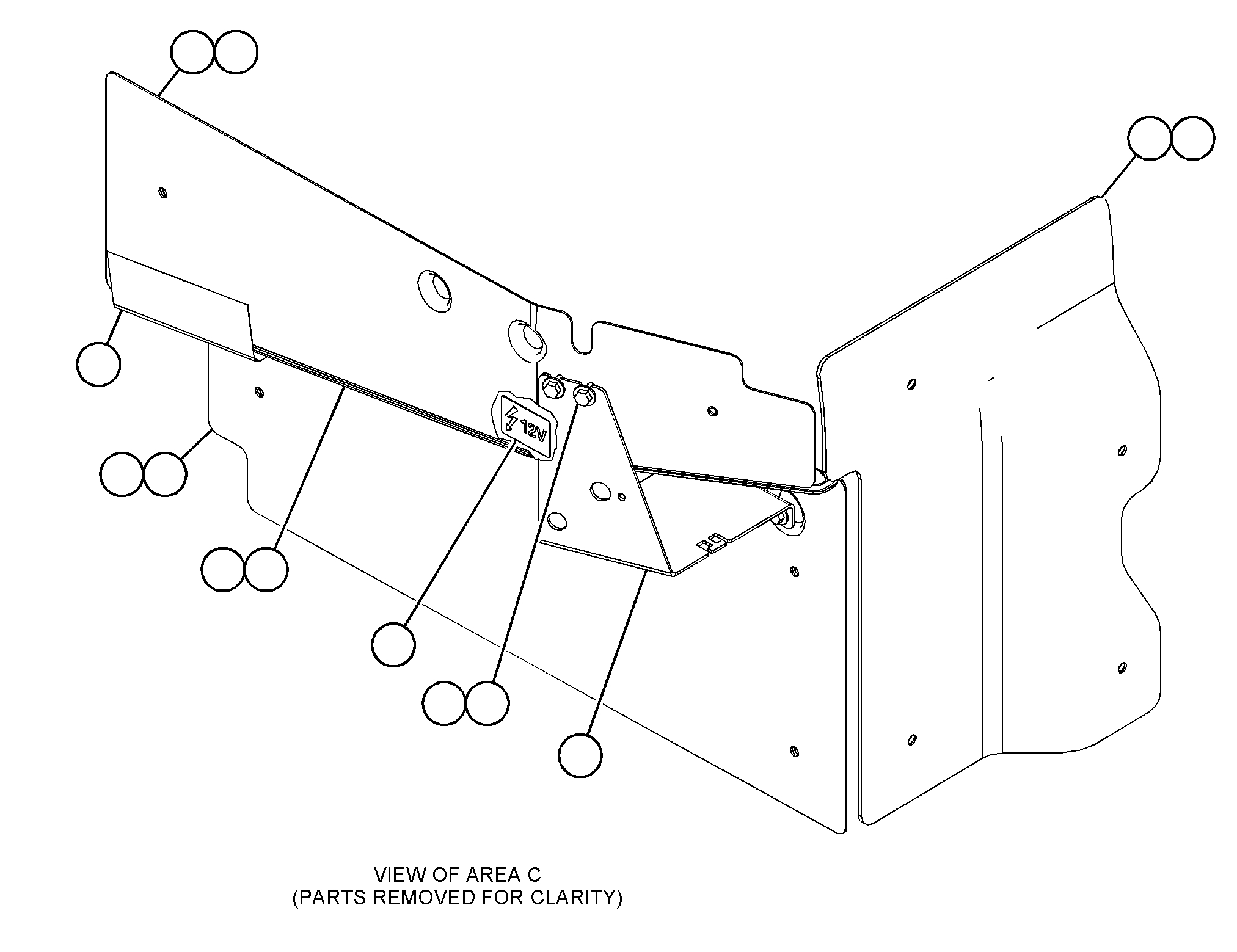

499-5700 COVER GP-EXHAUSTS/N KJH1-UP

Group No: 499-5700
Part NumberPart NameQty
8C85221 PAWL-LATCH1
12424562 FILM-INSTRUCTION (NO STEP)1
12947413 LATCH AS-T-BAR1
15980334 FILM-IDENTIFICATION (12-VOLT)1
25722505 WASHER (5X38-MM DIA)11
38904866 GUARD1
42173767 PLATE AS1
43186518 PLATE-COVER2
43862249 RING1
490365210 GUARD1
490365311 COVER AS1
1599540NUT-WELD (M8X1.25-THD)2
499568912 STEP AS1
1599540NUT-WELD (M8X1.25-THD)4
499577413 INSULATION1
500497014 PLATE1
501043615 INSULATION1
501949416 INSULATION1
499569017 COVER AS-EXHAUST1
9G9155CLIP2
1599539NUT-WELD (M6X1-THD)6
1599540NUT-WELD (M8X1.25-THD)24
1599541NUT-WELD (M10X1.5-THD)1
499569918 COVER AS1
499577219 COVER AS1
1028706PLATE AS1
1599541NUT-WELD (M10X1.5-THD)5
499577320 TREAD (ANTI-SKID)1
1599540NUT-WELD (M8X1.25-THD)1
501043521 INSULATION1
502603522 PROTECTOR1
503202623 DOOR AS1
5C726124 NUT (M8X1.25-THD)3
5P107625 WASHER-HARD (13.5X30X4-MM THK)4
5P411626 WASHER-HARD (8.8X20.5X2-MM THK)25
6V774327 LOCKNUT (M6X1-THD)2
7X772928 WASHER (11X25X3-MM THK)5
8T413329 NUT (M10X1.5-THD)2
8T413630 BOLT (M10X1.5X25-MM)5
8T418331 BOLT (M12X1.75X40-MM)4
8T418932 BOLT (M8X1.25X20-MM)7
8T420033 BOLT (M8X1.25X16-MM)22
8T420534 WASHER-HARD (7.2X14.5X2-MM THK)2
8T422435 WASHER-HARD (8.8X16X2-MM THK)7
6V158036 SEAL (0.3-M)
6V158036A SEAL (0.4-M)
5P721137 SEAL (0.5-M)
5P721137A SEAL (0.4-M)
5P721137B SEAL (0.3-M)
3E829938 SEAL (10-CM)
