System And Components

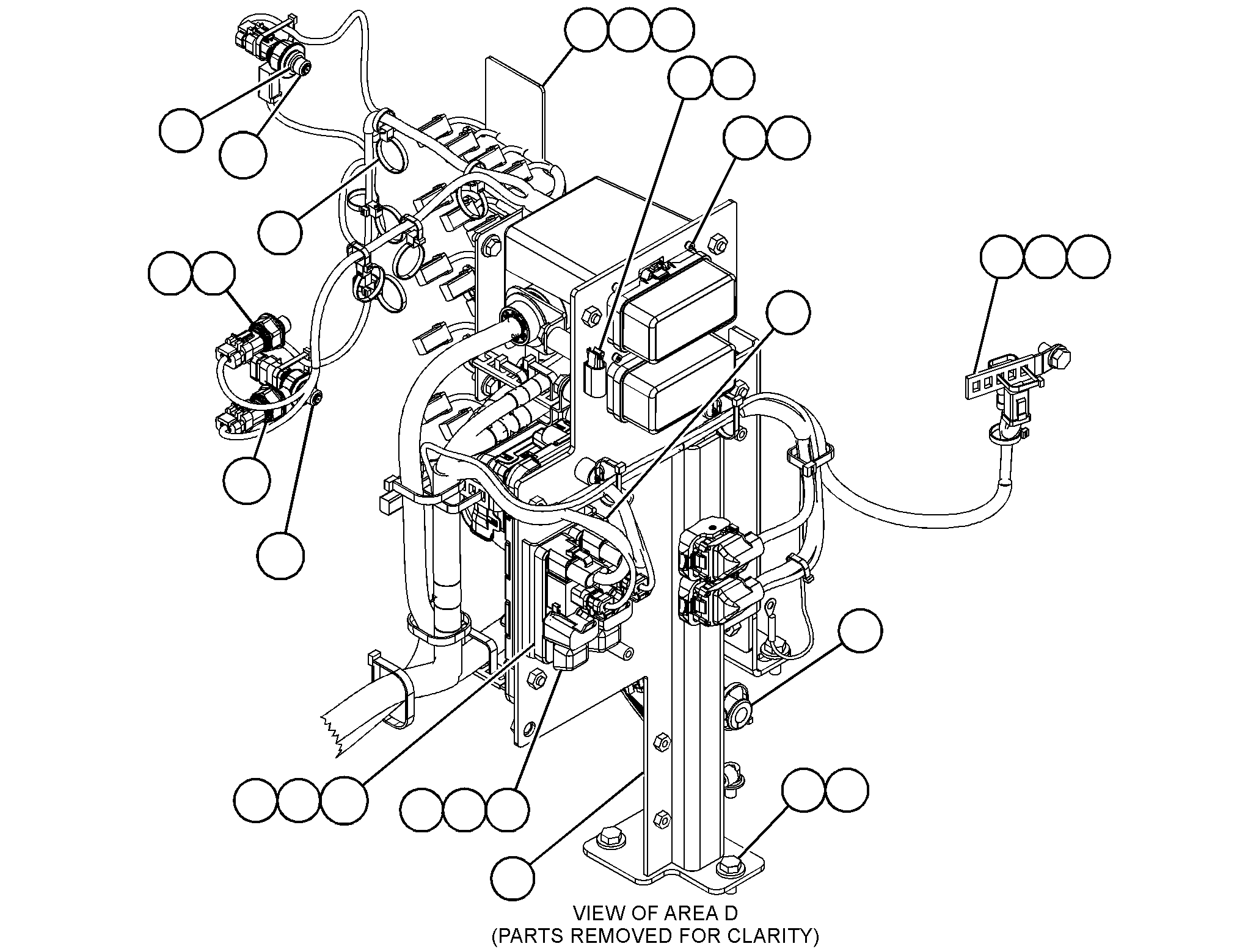

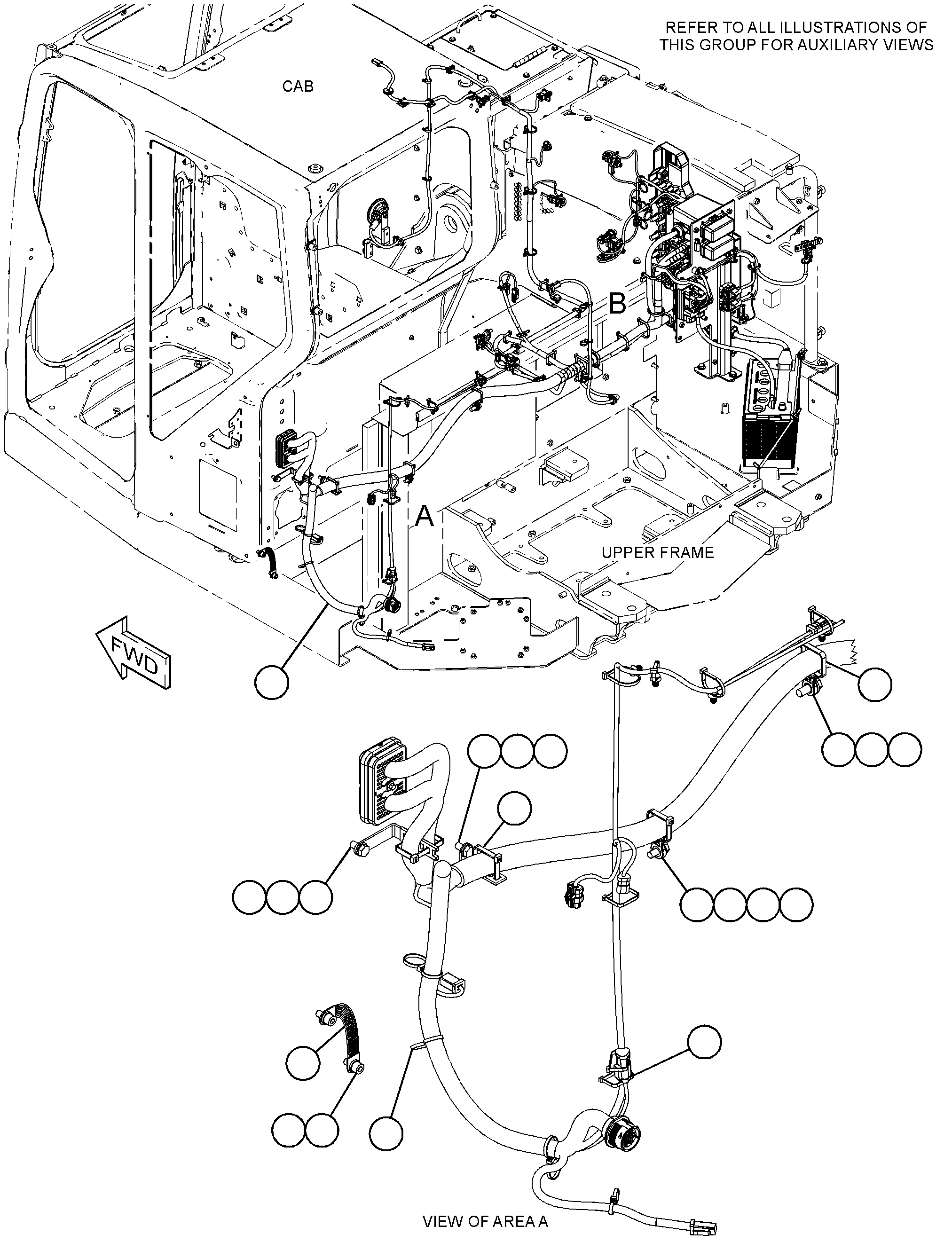

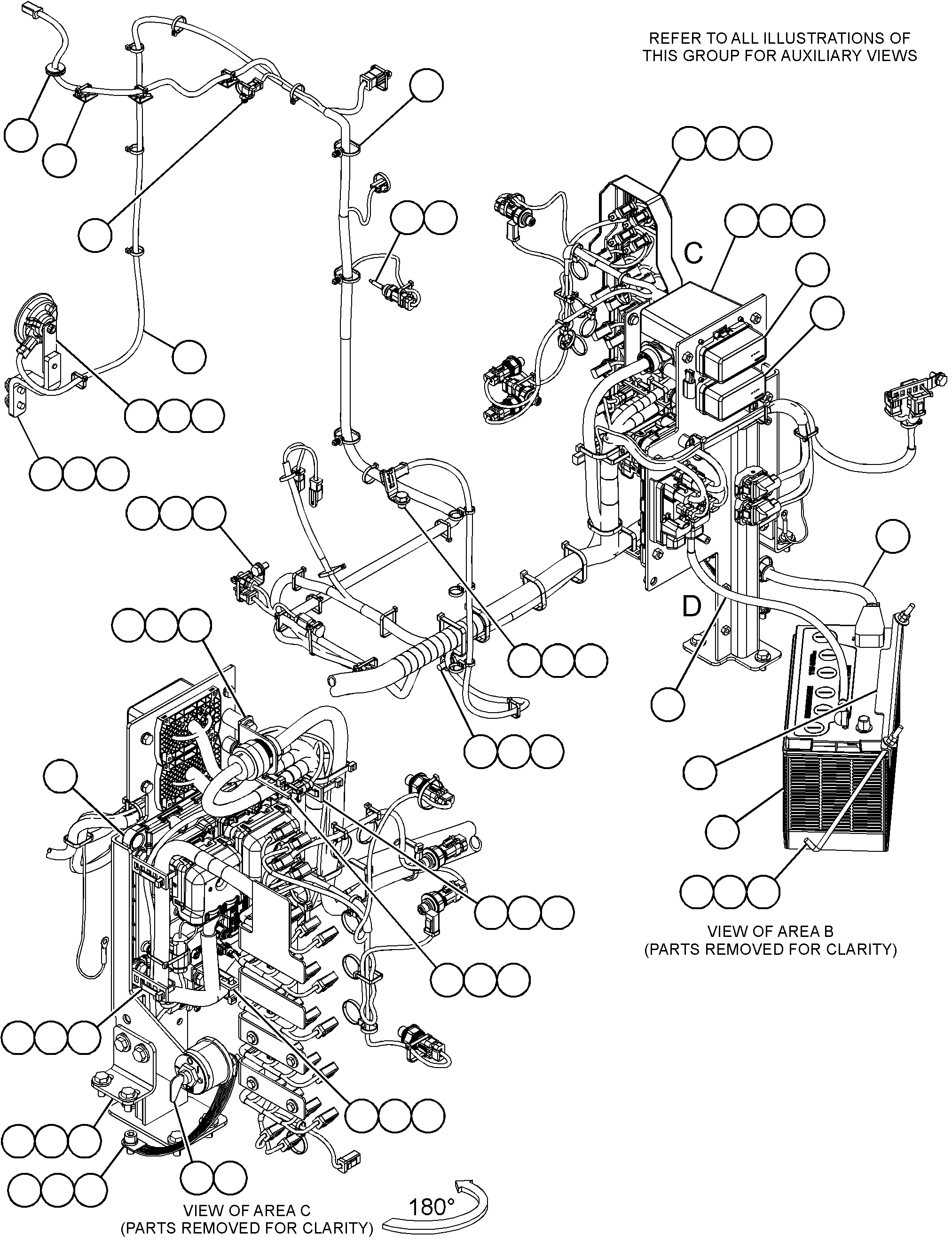

511-6230 BATTERY & WIRING GPPART OF 522-6541 ELECTRICAL AR
Group No: 511-6230
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7X2548 | 1 BOLT (M12X1.75X16-MM) | 1 | |
| 1032543 | 2 SEAL (3-CM) | ||
| 3E8320 | 3 PLATE-INSTRUCTION (BATTERY) | 1 | |
| 3S2093 | 4 STRAP-CABLE | 46 | |
| 5P4116 | 5 WASHER-HARD (8.8X20.5X2-MM THK) | 2 | |
| 7K1181 | 6 STRAP-CABLE | 23 | |
| 7X7729 | 7 WASHER (11X25X3-MM THK) | 9 | |
| 8T4223 | 8 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 9X2038 | 9 WASHER (7X19X2-MM THK) | 4 | |
| 1167471 | 10 PULLER-MINIFUSE | 1 | |
| 1649425 | 11 HORN AS (12-VOLT, LOW TONE) | 1 | |
| 2011024 | 12 BRACKET | 1 | |
| 2566453 | 13 SENSOR-TEMPERATURE (2-PIN)(HYDRAULIC TANK) | 1 | |
| 2639574 | 14 BATTERY AS (12-VOLT, MAINTENANCE FREE) | 1 | |
| 1231373 | CAP AS-FILLER (7/8-9-THD) | 6 | |
| 2667379 | 15 STRAP-CABLE | 7 | |
| 2750553 | 16 BAR-BUS | 1 | |
| 3269726 | 17 BASE-MOUNTING | 3 | |
| 3276236 | 18 ANGLE | 1 | |
| 3447391 | 19 SENSOR-PRESSURE (TRAVEL, LH) | 1 | |
| 3447391 | 19A SENSOR-PRESSURE (TRAVEL, RH) | 1 | |
| 3447391 | 19B SENSOR-PRESSURE (CALIBRATION) | 1 | |
| 3447391 | 19C SENSOR-PRESSURE (PUMP) | 1 | |
| 5116187 | 20 HARNESS AS-POWER (MAIN) | 1 | |
| 1352543 | BOOT (RED) | 1 | |
| 2922893 | CONDUIT (10.1-MM ID)(61-CM) | ||
| 2L8051 | TERMINAL-RING (6-GA, 5/16-IN SCREW) | 2 | |
| 5P3455 | TERMINAL-RING (8-GA, 5/16-IN SCREW) | 2 | |
| 5189087 | 21 PLATE | 1 | |
| 5226522 | 22 FILM-IDENTIFICATION (FUSE/RELAY PANEL) | 1 | |
| 1325789 | 23 CLIP (LADDER) | 1 | |
| 1459717 | 24 ROD | 2 | |
| 1622165 | 25 BOLT-SOCKET HEAD (M4X0.7X16-MM) | 8 | |
| 1S2342 | 26 STRAP AS-GROUND | 1 | |
| 2041611 | 27 STRAP-CABLE (DUAL) | 7 | |
| 2061345 | 28 STRAP-CABLE | 13 | |
| 2385080 | 29 SEAL-O-RING | 1 | |
| 2771873 | 30 CLIP (LADDER) | 1 | |
| 2V1771 | 31 GROMMET | 1 | |
| 2V8260 | 32 GROMMET | 1 | |
| 3101898 | 33 CLIP (LADDER) | 1 | |
| 3169351 | 34 MOUNTING-CABLE TIE | 3 | |
| 3276208 | 35 RELAY GP (12-VOLT)(GLOW PLUG) | 1 | |
| 3276208 | 35A RELAY GP (12-VOLT)(MAIN POWER) | 1 | |
| 3523964 | 36 CLIP (LADDER) | 1 | |
| 3523968 | 37 CLIP (LADDER) | 6 | |
| 3812621 | 38 MOUNTING-CABLE TIE | 2 | |
| 3816459 | 39 MOUNTING-CABLE TIE | 1 | |
| 3J1907 | 40 SEAL-O-RING | 4 | |
| 4914581 | 41 CONTROL GP-UNPROGRAMMED (ELECTRONIC)(ELECTRONIC) | 1 | |
| 4P7429 | 42 CLIP (LADDER) | 1 | |
| 4P7581 | 43 CLIP (LADDER) | 1 | |
| 5116158 | 44 CABLE AS | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 7X1169 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 0301707 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 1598048 | CABLE-ELECTRICAL (0-GA, BLACK)(56-CM) | ||
| 3519309 | TUBE-HEAT SHRINK (32-MM DIA)(4-CM) | ||
| 5226521 | 45 FILM-IDENTIFICATION (FUSE/RELAY PANEL) | 1 | |
| 5422357 | 46 PLATE | 1 | |
| 5438771 | 47 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 4 | |
| 5438772 | 48 COVER | 1 | |
| 5575091 | 49 HARNESS AS-CHASSIS | 1 | |
| 5575092 | 50 HARNESS AS-CHASSIS (FRAME) | 1 | |
| 5659402 | 51 PLATE AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 7 | |
| 5659404 | 52 COVER | 1 | |
| 5C7261 | 53 NUT (M8X1.25-THD) | 6 | |
| 5C9553 | 54 BOLT (M6X1X16-MM) | 4 | |
| 6V9499 | 55 WASHER-HARD (4.3X7X0.8-MM THK) | 8 | |
| 7N0718 | 56 SWITCH GP-DISCONNECT | 1 | |
| 7P1695 | 57 WASHER (10.5X19X3-MM THK) | 3 | |
| 7X0579 | 58 WASHER-HARD (8.8X25.5X2-MM THK) | 2 | |
| 7X2534 | 59 BOLT (M6X1X50-MM) | 2 | |
| 7X2537 | 60 BOLT (M8X1.25X35-MM) | 4 | |
| 8F7242 | 61 WASHER (8.7X15.9X1.6-MM THK) | 2 | |
| 8T4121 | 62 WASHER-HARD (11X21X2.5-MM THK) | 9 | |
| 8T4136 | 63 BOLT (M10X1.5X25-MM) | 11 | |
| 8T4137 | 64 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4139 | 65 BOLT (M12X1.75X30-MM) | 1 | |
| 8T4189 | 66 BOLT (M8X1.25X20-MM) | 5 | |
| 8T4191 | 67 BOLT (M10X1.5X16-MM) | 3 | |
| 8T4200 | 68 BOLT (M8X1.25X16-MM) | 1 | |
| 8T4224 | 69 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 8T8894 | 70 BOLT-SOCKET HEAD (M10X1.5X20-MM) | 3 | |
| 8X9618 | 71 STRAP AS-GROUND | 1 | |
| 9X8256 | 72 WASHER (6.6X12X2-MM THK) | 2 |
