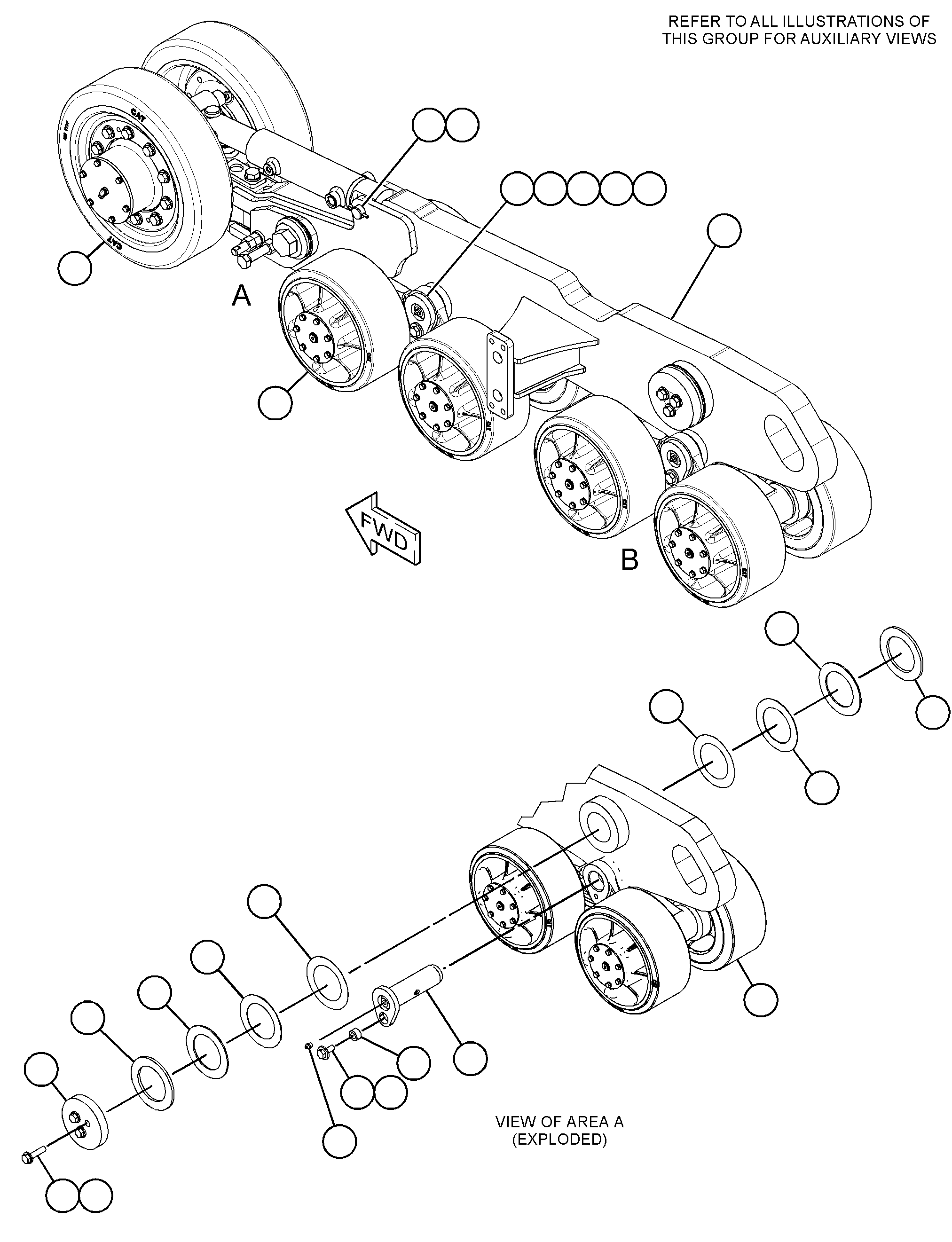

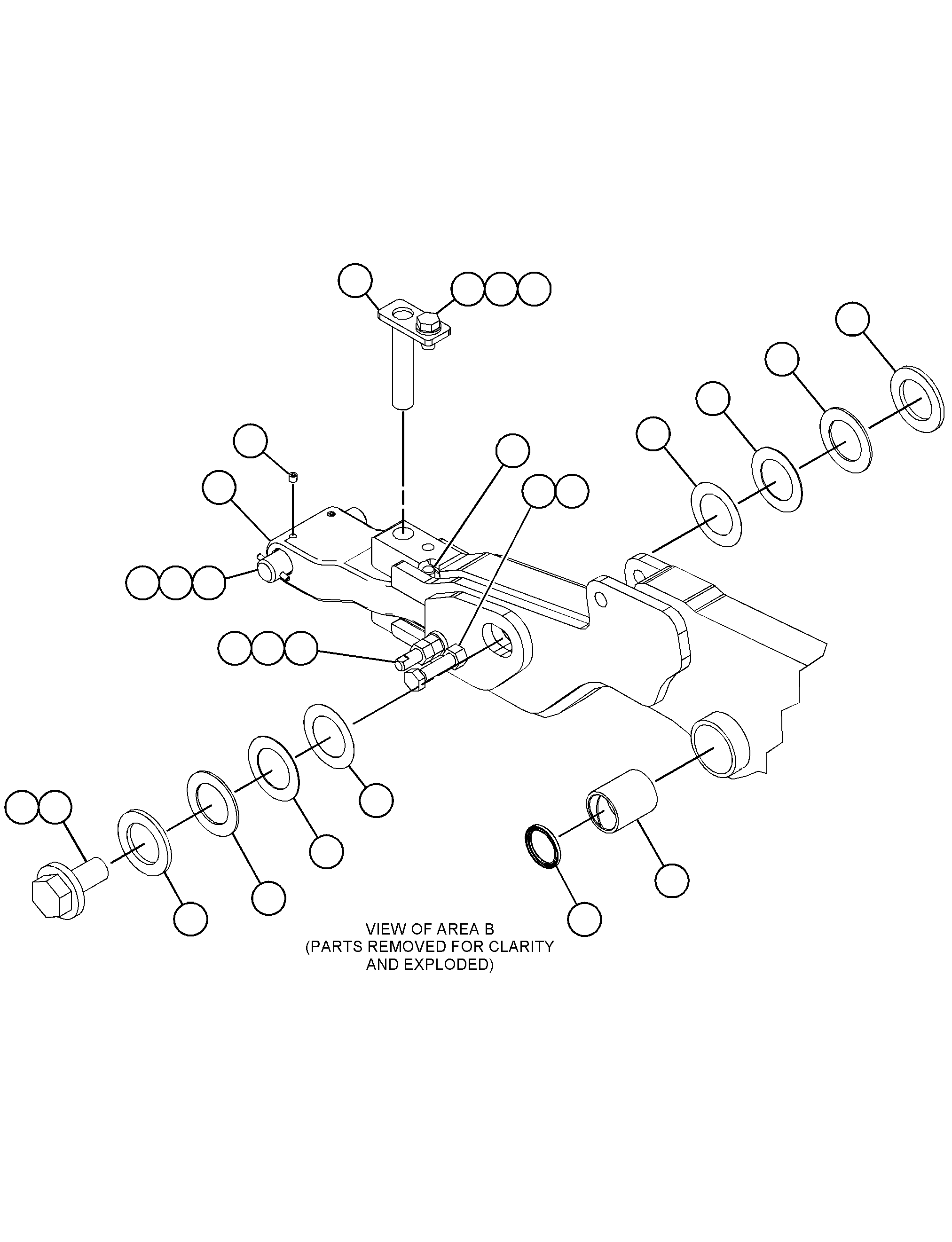

475-5198 FRAME GP-TRACK ROLLERPART OF 473-2863 UNDERCARRIAGE AR

Group No: 475-5198
Part NumberPart NameQty
3B84891 FITTING-GREASE (1/8-27 PTF)2
10612422 SPACER (13.8X23.75X12.7-MM THK)2
47231413 SEAL-PIN4
50558924 FRAME GP-UNDERCARRIAGE1
48167854A BEARING-SLEEVE2
4755176FRAME AS1
47551815 ROD1
47551876 PIN-CLEVIS1
47551887 SPACER (33X70X10-MM THK)1
47551908 BOGIE GP2
47552009 TENSIONER GP-TRACK1
475520510 ARM-ADJUSTMENT1
514656711 PIN AS1
475520812 PIN1
475521713 BUSHING2
475521814 PIN AS2
475522115 PLATE1
480650216 SHIM (0.45-MM THK)2
480650317 SHIM (1.5-MM THK)2
480650418 SHIM (3-MM THK)2
480650519 SHIM (6-MM THK)2
480656120 SHIM (0.45-MM THK)2
480656221 SHIM (1.5-MM THK)2
480656322 SHIM (3-MM THK)2
480656423 SHIM (6-MM THK)2
136418225 BOLT (M16X2X100-MM)1
299342426 WASHER-HARD (17.5X30X6-MM THK)1
3B462927 PIN-COTTER1
439055028 BOLT-12 POINT HEAD (M16X2X80-MM)2
4H699629 PIN-SPRING1
5P107630 WASHER-HARD (13.5X30X4-MM THK)2
8T477931 BOLT (M16X2X35-MM)1
7Y523232 BOLT (M30X3.5X70-MM)1
8T413233 NUT (M16X2-THD)4
8T413934 BOLT (M12X1.75X30-MM)2
8T419435 BOLT (M12X1.75X50-MM)3
8T422336 WASHER-HARD (13.5X25.5X3-MM THK)3
9F224737 PLUG-PIPE (1/8-27-THD)2
3E941138 WASHER-HARD (17.5X38X6-MM THK)1
156578239 SPACER (17.5X30X10-MM THK)1
