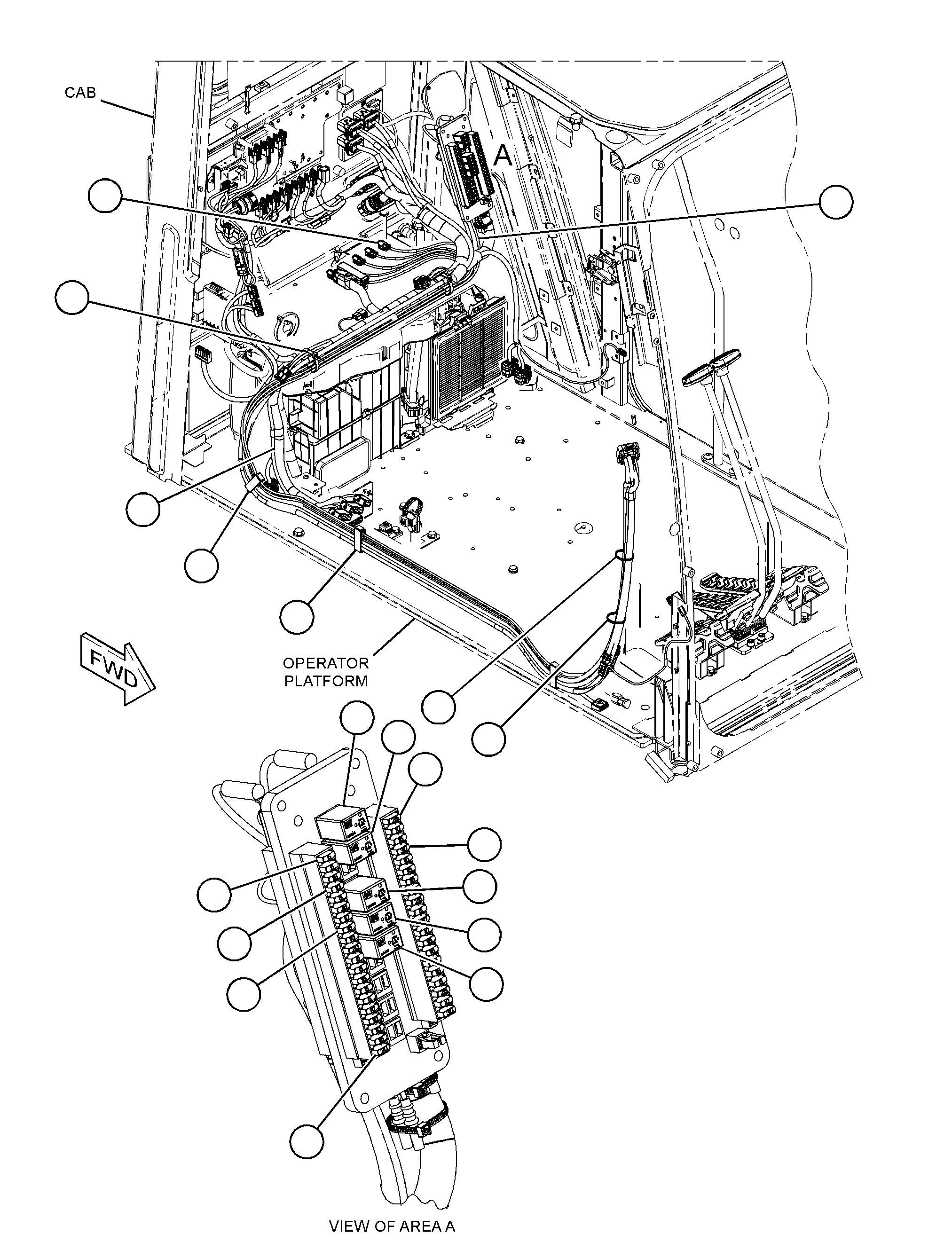

559-0169 WIRING GP-CABS/N NFZ1-UP

Group No: 559-0169
Part NumberPart NameQty
7K11811 STRAP-CABLE2
3S20932 STRAP-CABLE2
49220113 CLIP3
54975004 CABLE AS1
4832765TERMINAL AS (20-GA)2
4900571PLUG AS-CONNECTOR (2-PIN)1
54975015 CABLE AS1
4832765TERMINAL AS (20-GA)2
4900582RECEPTACLE AS-CONNECTOR (2-PIN)1
55901706 HARNESS AS-CAB (CAMERA, FRONT)1
16131286A RELAY (24-VOLT)(HORN)1
16131286B RELAY (24-VOLT)(POWER)1
16131286C RELAY (24-VOLT)(LIFTING)1
16131286D RELAY (24-VOLT)(BOOM LIGHT)1
16131286E RELAY (24-VOLT)(CHASSIS LIGHT)1
11384906F FUSE (10-AMPERE)10
11384916G FUSE (15-AMPERE)12
11384926H FUSE (20-AMPERE)3
11384936J FUSE (25-AMPERE)4
12435486K FUSE (30-AMPERE)2
14127596L FUSE (5-AMPERE)9
2382319BASE AS (FUSE, RELAY PANEL)1
3422973CAP-CONNECTOR (3-PIN)1
1495051CONNECTOR-RECEPTACLE9
2679973CONNECTOR (4-PIN)1
1974406CONNECTOR-PLUG1
5065915CONNECTOR-PLUG2
4839066CONNECTOR-RECEPTACLE1
4918349CONNECTOR-RECEPTACLE2
5065917CONNECTOR-RECEPTACLE1
1636800CONNECTOR-RECEPTACLE1
2041805CONNECTOR-RECEPTACLE1
4244322COVER-CONNECTOR1
1211022DIODE1
3E3390PIN-CONNECTOR (16-GA TO 18-GA)25
9W0852PIN-CONNECTOR (14-GA TO 16-GA)21
2025400PLUG29
7Y3952PLUG-CONNECTOR (2-PIN)2
7Y3958CONNECTOR-PLUG (6-PIN)1
1114816PLUG-CONNECTOR (13-PIN)1
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2407874PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2407878PLUG AS-CONNECTOR (3-PIN)1
4550705SEAL-CONNECTOR1
2813395PLUG AS-CONNECTOR (12-PIN)2
4550709SEAL-CONNECTOR1
4427945PLUG AS-CONNECTOR (81-PIN)1
4447595PLUG AS-CONNECTOR (62-PIN)1
4832762PLUG AS-CONNECTOR (44-PIN)1
4900571PLUG AS-CONNECTOR (2-PIN)2
4900578PLUG AS-CONNECTOR (2-PIN)2
5071383PLUG AS-CONNECTOR (14-PIN)1
5071384PLUG AS-CONNECTOR (18-PIN)1
3245678RESISTOR AS (120-OHM)2
4550704SEAL-CONNECTOR1
8T8737PLUG-SEAL24
4537871PLUG-SEAL34
4832768PLUG-SEAL16
7Y3953CONNECTOR-RECEPTACLE2
7Y3955CONNECTOR-RECEPTACLE2
3245684RECEPTACLE AS-CONNECTOR (12-PIN)3
4518019RECEPTACLE AS-CONNECTOR (14-PIN)1
5065910RECEPTACLE AS-CONNECTOR (62-PIN)1
2795772SEAL83
1851861SEAL-WIRE12
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)16
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)7
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)2
4560575TERMINAL AS (16-GA)5
3135671PLUG-SEAL1
4832765TERMINAL AS (20-GA)13
4832767TERMINAL AS (18-GA)15
3S2093STRAP-CABLE64
3639173TERMINAL (14-GA TO 18-GA)2
7Y3967TERMINAL AS3
7Y3963TERMINAL-BULLET (FEMALE)1
7Y3965TUBE1
1311496TERMINAL AS2
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)1
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(4-CM)
1706890TERMINAL-BLADE (14-GA)17
1706891TERMINAL-BLADE (16-GA TO 18-GA)21
7Y3951TERMINAL-BLADE (14-GA)9
1027965TERMINAL (14-GA TO 20-GA)12
1254785TERMINAL (FEMALE)9
1495069TERMINAL-BLADE (14-GA TO 20-GA)25
1495070TERMINAL-BLADE (16-GA TO 20-GA)40
1495071TERMINAL-BLADE (12-GA TO 14-GA)12
1532540TERMINAL (FEMALE)22
5065916TERMINAL (20-GA TO 24-GA)4
7Y3950TERMINAL-BLADE (14-GA TO 20-GA)6
1706827TERMINAL (MALE)71
4914402TERMINAL (14-GA TO 16-GA)12
4914409TERMINAL (18-GA TO 20-GA)83
5065918TERMINAL (14-GA TO 20-GA)2
4560574TERMINAL AS (18-GA)42
1706888PULLER-FUSE1
5P5999TUBE (0.5-M)
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(51-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(165-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(40-CM)
1254840WEDGE-PLUG LOCK (13-PIN)1
