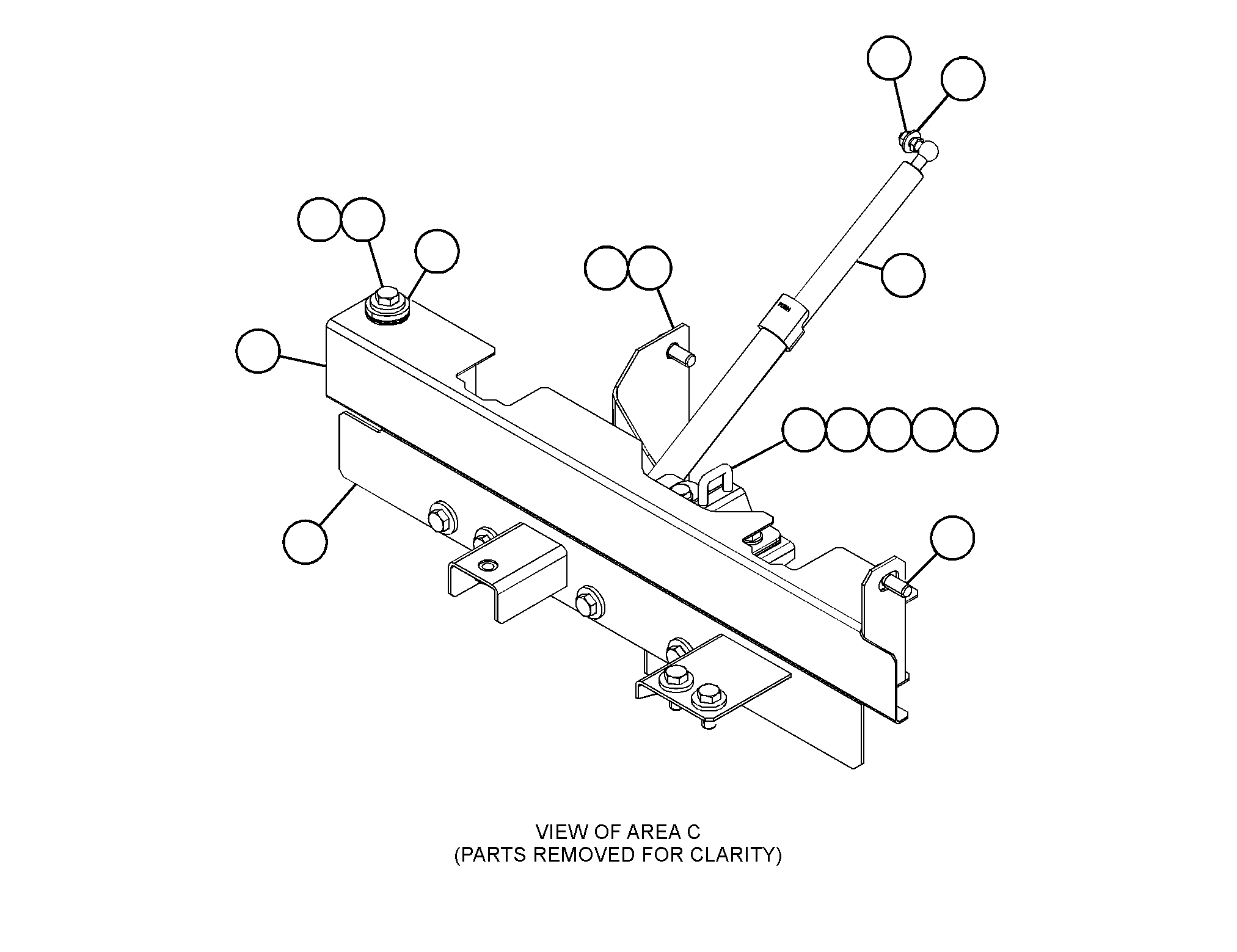

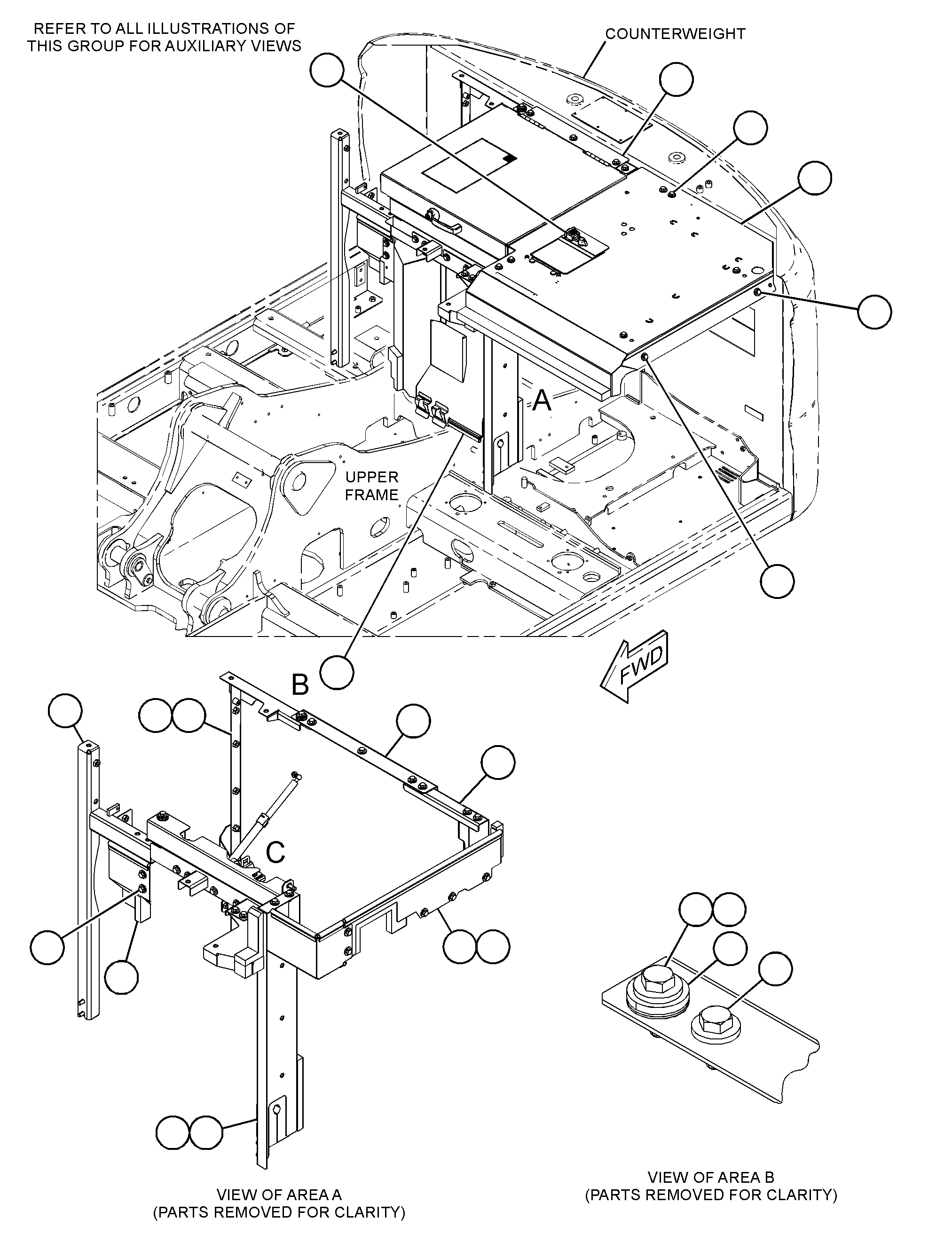

582-3490 HOOD & GUARD GPS/N NFZ1-UP

Group No: 582-3490
Part NumberPart NameQty
56223611 SHEET1
56842992 HOOD GP-ENGINE (HINGED)1
56054823 SHEET AS1
1019848SEAL (0.2-M)
8T3597NUT-WELD (M12X1.75-THD)1
5759584LINER1
56054874 SHEET AS1
3485409SEAL (2-DM)
8T3597NUT-WELD (M12X1.75-THD)5
56054915 SUPPORT AS1
7Y6215PLATE1
8T3597NUT-WELD (M12X1.75-THD)4
56054976 SHEET AS-SOUND SUPPRESSION1
3485409SEAL (8-DM)
8T3597NUT-WELD (M12X1.75-THD)2
56055047 SUPPORT AS1
8T3597NUT-WELD (M12X1.75-THD)4
13585758 BOLT AS40
5P1076WASHER-HARD (13.5X30X4-MM THK)1
8T4139BOLT (M12X1.75X30-MM)1
13585779 BOLT AS3
5P1076WASHER-HARD (13.5X30X4-MM THK)1
8T4956BOLT (M12X1.75X35-MM)1
327288610 STRIKER AS1
527780411 SHIM (1-MM THK)2
527780512 SHIM (2-MM THK)2
560546513 SPRING AS-GAS1
2658463STUD-BALL (M8X1.25X16-MM)2
560550114 SUPPORT AS1
8T3490NUT-WELD (M10X1.5-THD)2
8T3597NUT-WELD (M12X1.75-THD)8
9R2672BOSS-THREADED (M10X1.5X20-MM)1
560550215 SUPPORT AS1
8T3597NUT-WELD (M12X1.75-THD)7
560550316 SUPPORT AS1
8T3597NUT-WELD (M12X1.75-THD)2
568429317 SUPPORT AS1
1019848SEAL (0.01-M)
3485409SEAL (6-DM)
8T3597NUT-WELD (M12X1.75-THD)9
568431018 COVER AS-ACCESS1
8T3490NUT-WELD (M10X1.5-THD)2
578856519 COVER GP-ACCESS1
5C726120 NUT (M8X1.25-THD)2
5P411621 WASHER-HARD (8.8X20.5X2-MM THK)2
246264122 PADLOCK GP1
5P8500KEY1
7Y285323 SPACER (13X38X5-MM THK)3
7Y899024 SPACER (24X38X1.5-MM THK)4
8T412125 WASHER-HARD (11X21X2.5-MM THK)2
8T413626 BOLT (M10X1.5X25-MM)2
