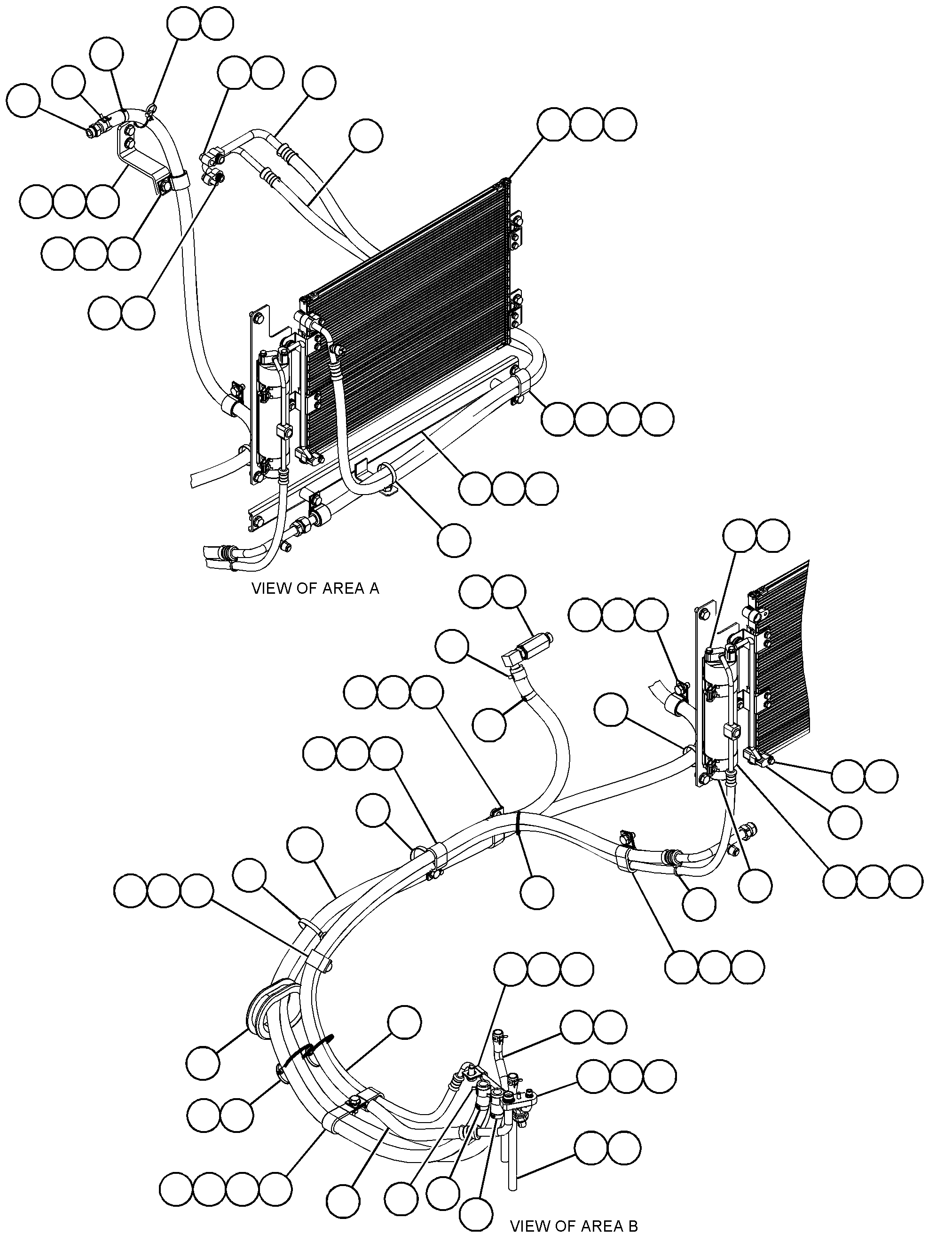

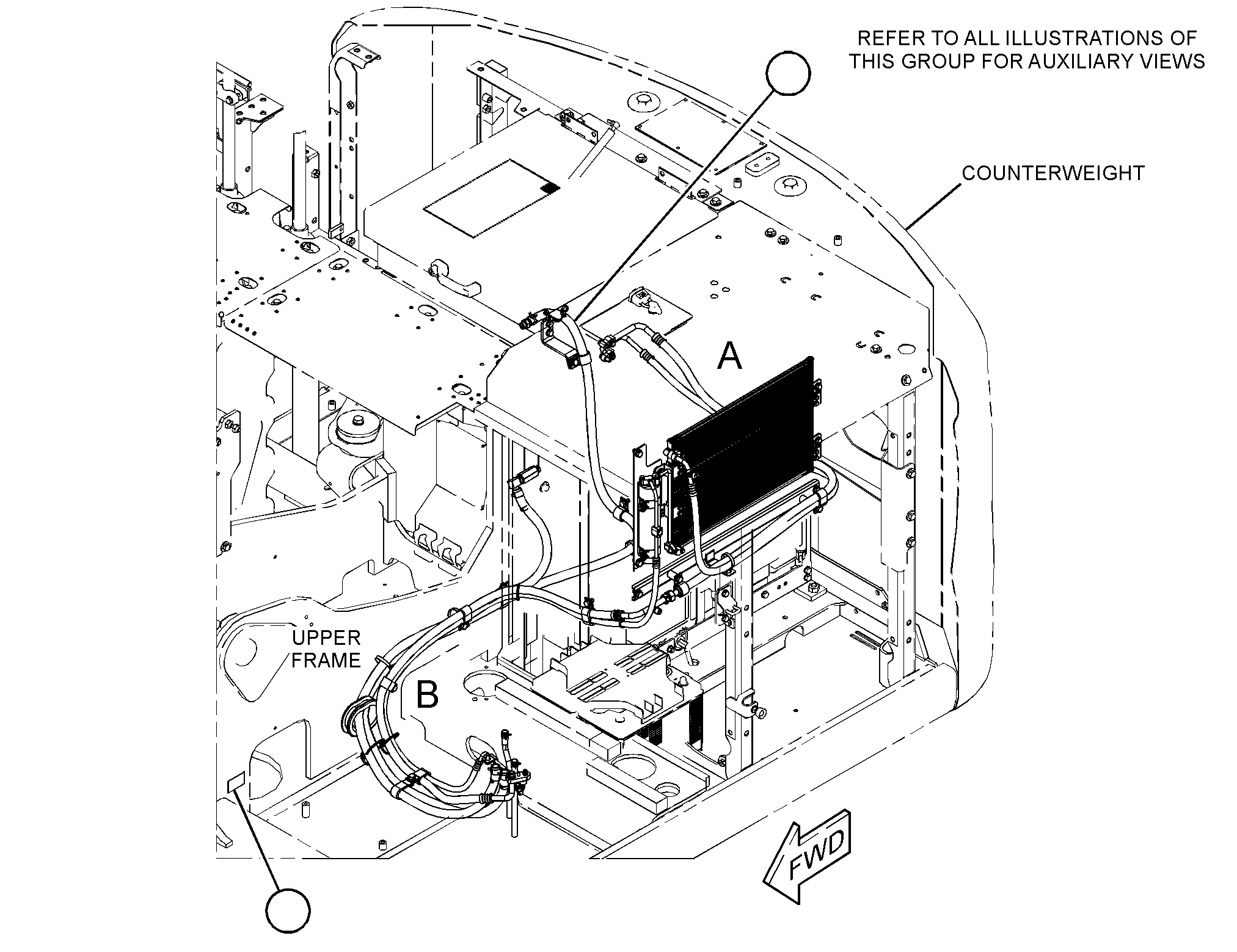

559-1086 LINES GP-AIR CONDITIONERS/N NFZ1-UP

Group No: 559-1086

Part Number	Part Name	Qty
1004336	1 CLIP (LOOP)	7
1087553	2 GROMMET	1
1217098	3 BRACKET AS	1
8T4138	BOLT (M6X1X20-MM)	2
9X8256	WASHER (6.6X12X2-MM THK)	2
1229657	4 CLAMP	2
1761902	5 DRYER AS-REFRIGERANT (RECEIVER)	1
2041611	6 STRAP-CABLE (DUAL)	1
2358891	7 PLATE	1
2359014	8 CLAMP-SPRING	4
2609144	9 CONNECTOR AS	1
3K0360	SEAL-O-RING	1
1688806	CONNECTOR	1
2667379	10 STRAP-CABLE	1
2931238	11 HOSE-DRAIN	1
3048028	12 CONNECTOR AS	1
3K0360	SEAL-O-RING	1
3048027	ADAPTER	1
3050441	13 BAND-MARKER (HS)	2
3050442	14 BAND-MARKER (HR)	2
3729319	15 HOSE-DRAIN	1
3920808	16 ELBOW AS	1
5P4906	ELBOW	1
6V6609	SEAL-O-RING	1
3S2093	17 STRAP-CABLE	2
3023908	18 SPACER (11X20X30-MM THK)	1
4841456	19 STRAP-CABLE	4
5001004	20 SUPPORT AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
1787023	BOSS (M10X1.5X30-MM)	2
5116037	21 HOSE AS	1
1217137	SEAL-O-RING	2
2457850	CAP	1
5116038	22 PIPE AS	1
1217138	SEAL-O-RING	2
5416629	23 CLIP (LOOP)	3
5540012	24 BRACKET AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
5591088	25 CONDENSER & MTG GP-REFRIGERANT	1
5662227	26 HOSE AS	1
1217138	SEAL-O-RING	2
1300270	SWITCH AS-PRESSURE (REFRIGERANT)	1
1858293	SEAL-O-RING	1
5662228	27 HOSE AS	1
1217136	SEAL-O-RING	1
2457851	CAP	1
5662229	28 HOSE AS	1
1217136	SEAL-O-RING	2
5767680	29 PLATE & FILM GP	1
5P9297	30 CLIP (LOOP)	1
6D1641	31 CLIP (LOOP)	2
6V7357	32 BOLT (M6X1X25-MM)	5
8T4121	33 WASHER-HARD (11X21X2.5-MM THK)	16
8T4136	34 BOLT (M10X1.5X25-MM)	2
8T4137	35 BOLT (M10X1.5X20-MM)	13
8T4200	36 BOLT (M8X1.25X16-MM)	2
8T4224	37 WASHER-HARD (8.8X16X2-MM THK)	4
8T6466	38 BOLT (M10X1.5X60-MM)	1
8T7547	39 BOLT (M8X1.25X30-MM)	2
9X8256	40 WASHER (6.6X12X2-MM THK)	5
2667379	41 STRAP-CABLE	2
3S2093	42 STRAP-CABLE	2
5P0767	43 HOSE (291-CM)
5P0767	43A HOSE (181-CM)
