System And Components

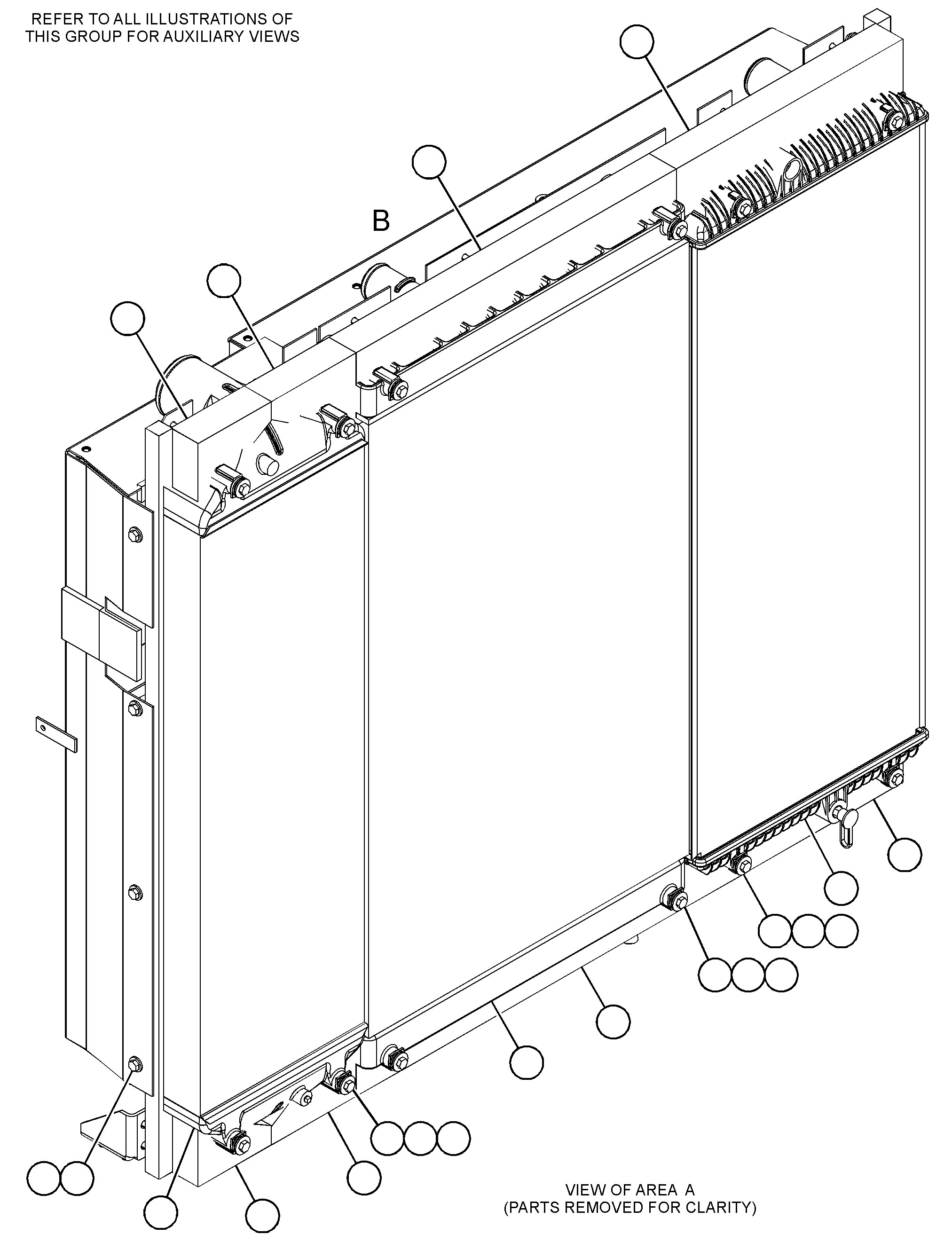

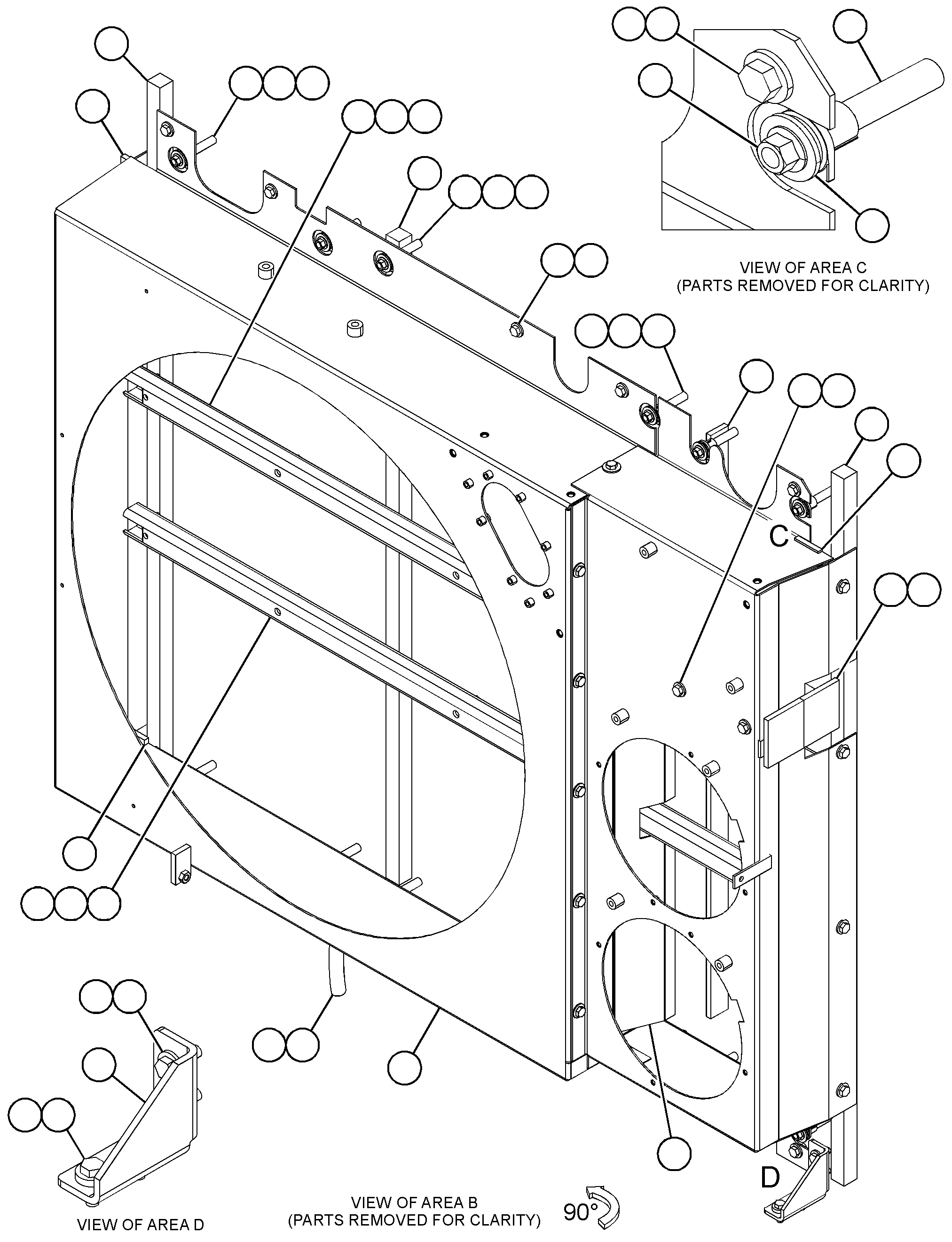

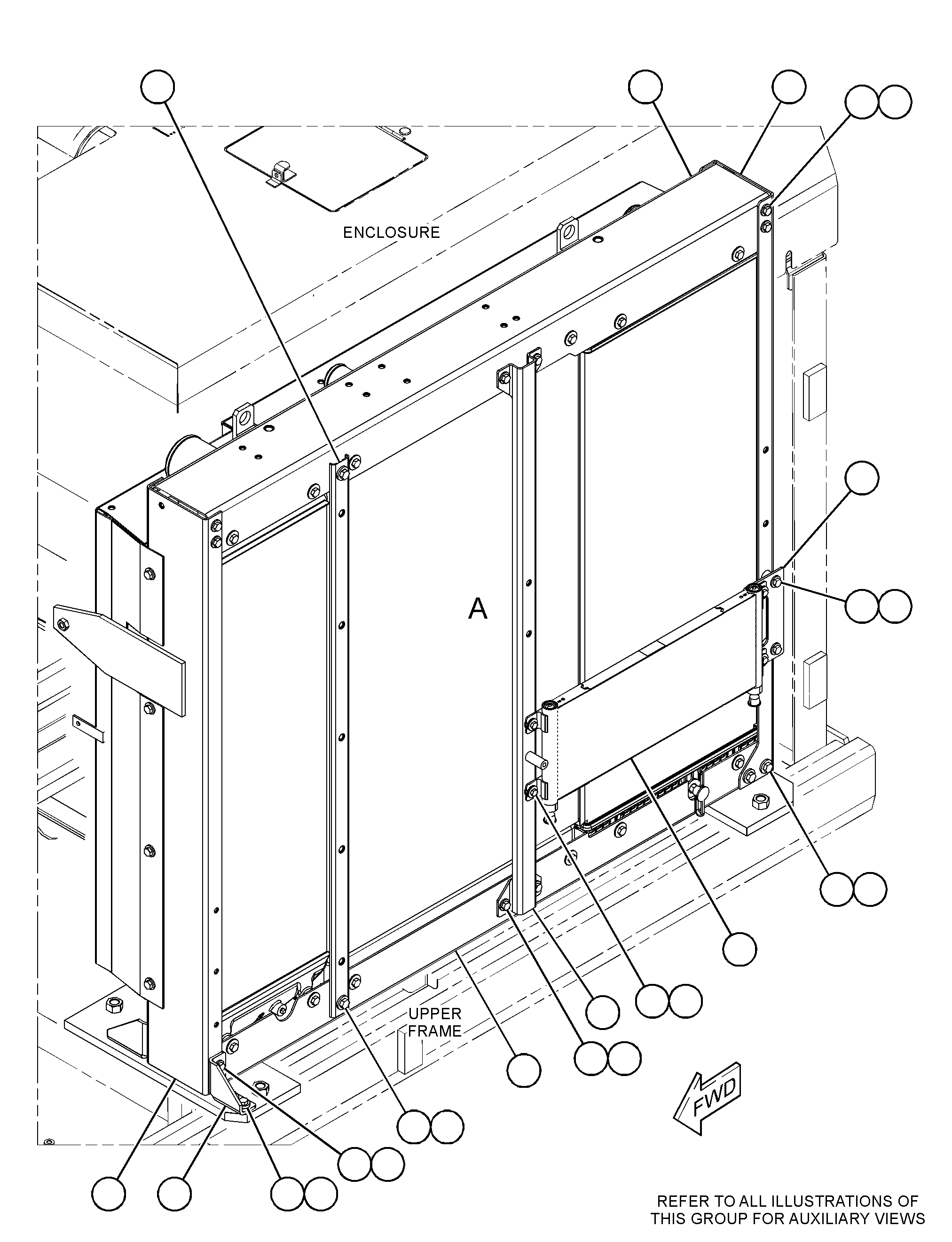

541-1390 MODULE GP-COOLING -RADIATOR, AFTERCOOLER, HYD OIL COOLERS/N JPC1-UP
Group No: 541-1390
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0398557 | 1 WASHER (13X26X6-MM THK) | 4 | |
| 1757141 | 2 NUT-HEX FLANGE (M10X1.5-THD) | 12 | |
| 3570003 | 3 PIN | 16 | |
| 4756625 | 4 COOLER AS | 1 | |
| 4756662 | 5 PIN | 8 | |
| 5117573 | 6 BRACKET AS | 1 | |
| 5117578 | 7 SEAL-AIR | 2 | |
| 5117579 | 8 SEAL-AIR | 2 | |
| 5117580 | 9 SEAL-AIR | 1 | |
| 5215217 | 10 SEAL-AIR | 1 | |
| 5215218 | 11 SEAL-AIR | 2 | |
| 5215219 | 12 SEAL-AIR | 2 | |
| 5215220 | 13 SEAL-AIR | 2 | |
| 5215222 | 14 SEAL-AIR | 2 | |
| 5411387 | 15 CORE AS-OIL COOLER (HYDRAULIC) | 1 | |
| 5411388 | 16 BRACKET | 1 | |
| 5411389 | 17 BRACKET | 1 | |
| 5411395 | 18 CORE AS-RADIATOR | 1 | |
| 5411397 | 19 CORE AS-AFTERCOOLER | 1 | |
| 5411398 | 20 SHROUD AS | 1 | |
| 5411399 | 21 FRAME AS | 1 | |
| 5411400 | 22 FRAME AS | 1 | |
| 5411401 | 23 FRAME AS | 1 | |
| 5411402 | 24 FRAME AS | 1 | |
| 5411403 | 25 BRACKET AS | 1 | |
| 5411404 | 26 PLATE AS | 1 | |
| 5411405 | 27 BRACKET AS | 2 | |
| 5411406 | 28 BRACKET AS | 1 | |
| 5411407 | 29 SEAL-AIR | 4 | |
| 5411408 | 30 SEAL-AIR | 1 | |
| 5D1026 | 31 CLAMP-BAND | 1 | |
| 5P1076 | 32 WASHER-HARD (13.5X30X4-MM THK) | 10 | |
| 7X0578 | 33 WASHER-HARD (10.2X32X2.5-MM THK) | 24 | |
| 7X0579 | 34 WASHER-HARD (8.8X25.5X2-MM THK) | 4 | |
| 7X2546 | 35 BOLT (M10X1.5X180-MM) | 12 | |
| 7X7729 | 36 WASHER (11X25X3-MM THK) | 40 | |
| 8T4136 | 37 BOLT (M10X1.5X25-MM) | 8 | |
| 8T4137 | 38 BOLT (M10X1.5X20-MM) | 26 | |
| 8T4182 | 39 BOLT (M10X1.5X45-MM) | 2 | |
| 8T4192 | 40 BOLT (M12X1.75X25-MM) | 8 | |
| 8T4195 | 41 BOLT (M10X1.5X30-MM) | 8 | |
| 8T4908 | 42 BOLT (M8X1.25X25-MM) | 4 | |
| 8T4139 | 43 BOLT (M12X1.75X30-MM) | 2 | |
| 5P0767 | 44 HOSE (19-CM) |
