System And Components

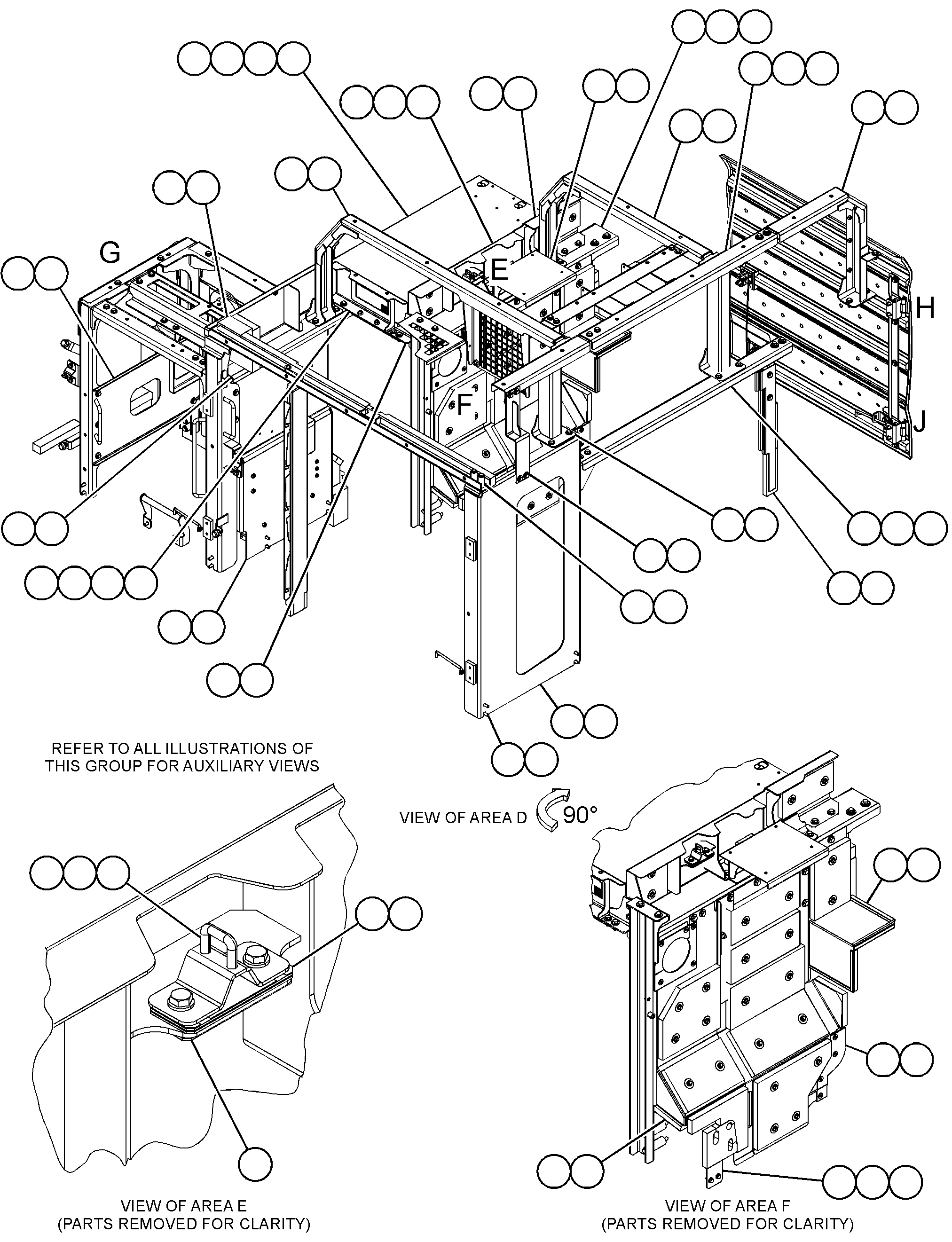

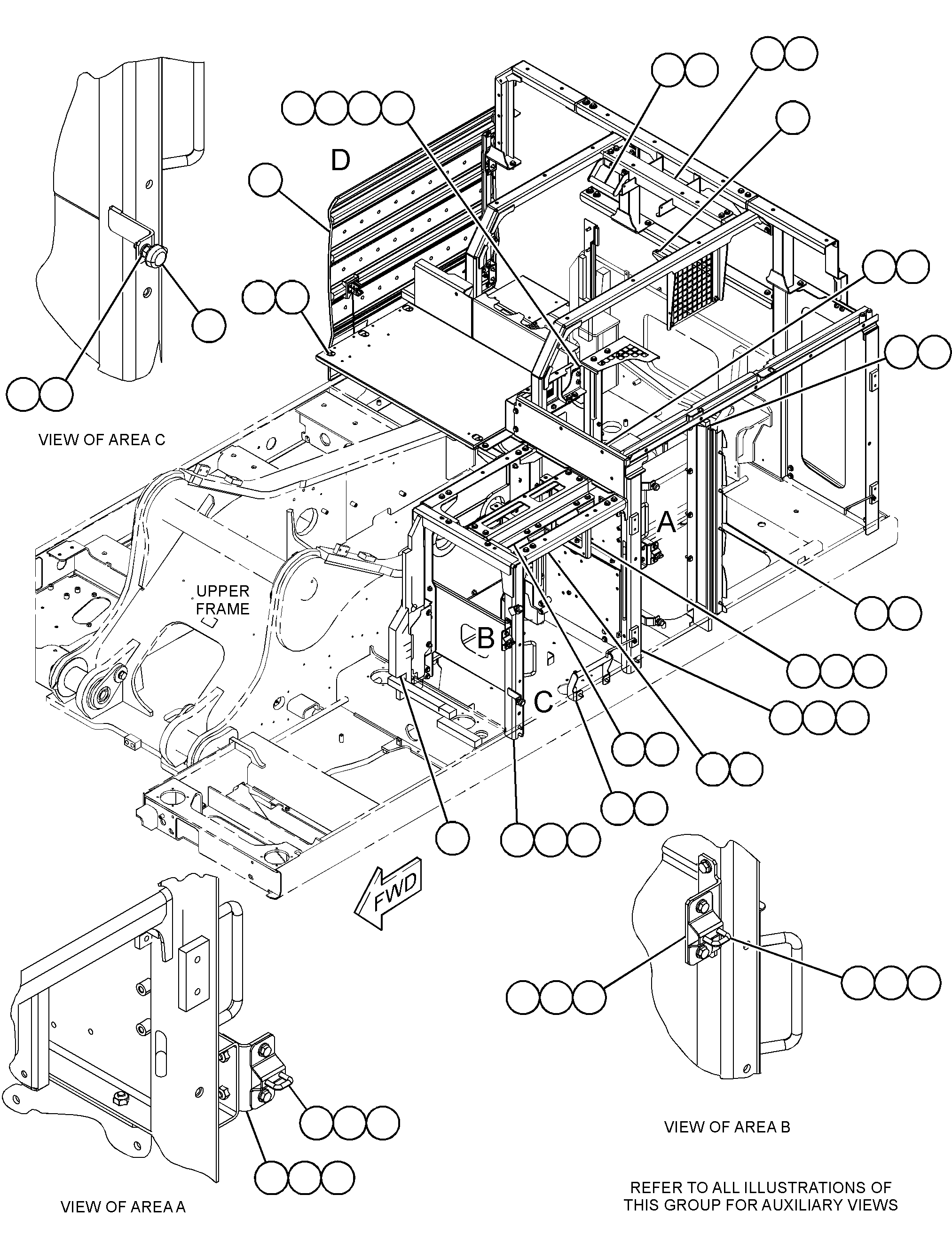

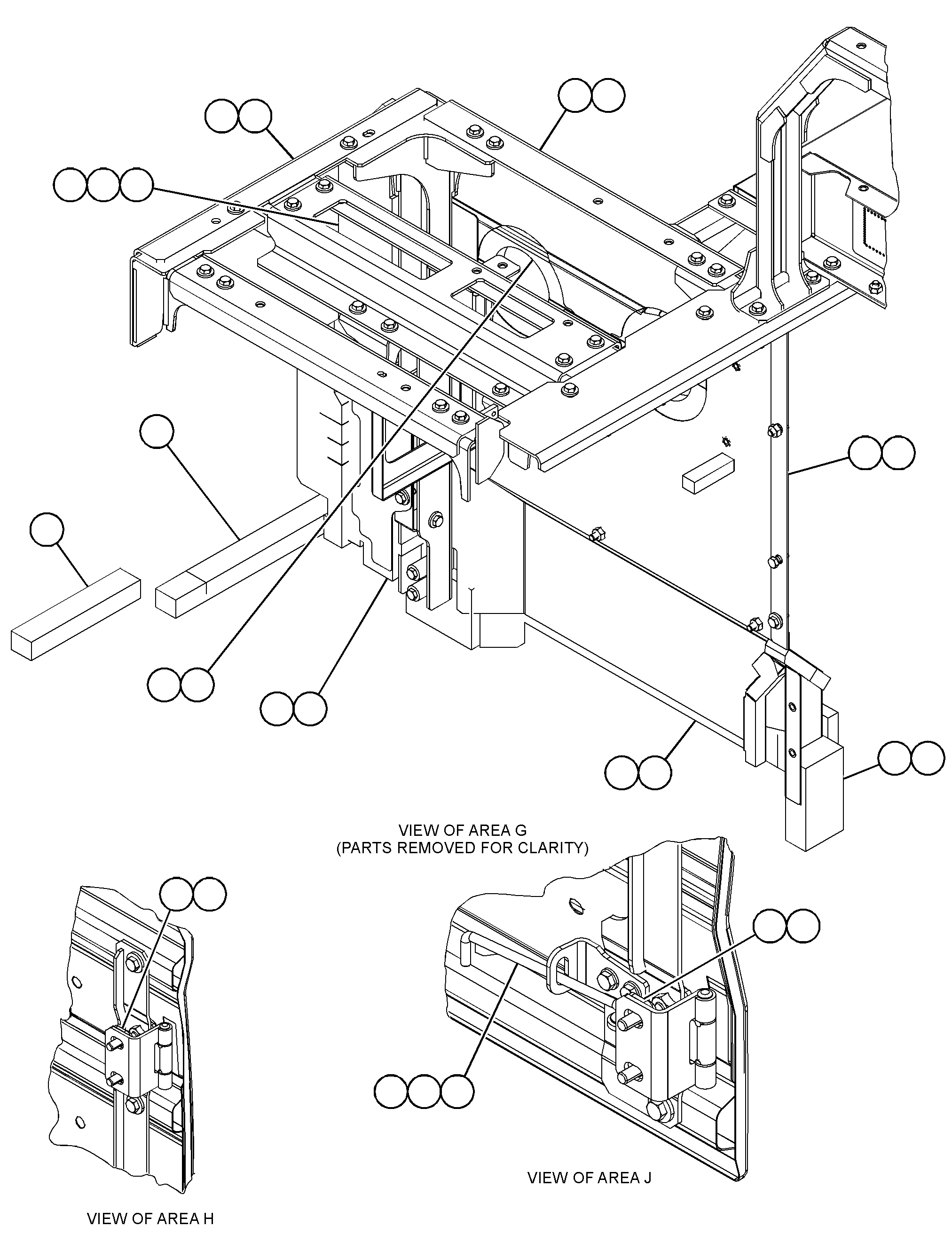

516-7434 HOOD & GUARD GPS/N JPC1-UP
Group No: 516-7434
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B4611 | 1 PIN-COTTER | 3 | |
| 5V3854 | 2 BUMPER | 1 | |
| 8T4121 | 3 WASHER-HARD (11X21X2.5-MM THK) | 19 | |
| 8T4133 | 4 NUT (M10X1.5-THD) | 4 | |
| 8T4136 | 5 BOLT (M10X1.5X25-MM) | 12 | |
| 8T4223 | 6 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T5041 | 7 BOLT (M12X1.75X120-MM) | 2 | |
| 8T6868 | 8 BOLT (M12X1.75X80-MM) | 4 | |
| 1358573 | 9 BOLT AS | 4 | |
| 1358575 | 10 BOLT AS | 118 | |
| 1358577 | 11 BOLT AS | 31 | |
| 1358578 | 12 BOLT AS | 4 | |
| 1703016 | 13 SPACER (19X32X2-MM THK) | 15 | |
| 2447789 | 14 SPACER (19X38X3-MM THK) | 9 | |
| 3272884 | 15 BRACKET AS | 1 | |
| 3272886 | 16 STRIKER AS | 3 | |
| 3432465 | 17 BUMPER | 4 | |
| 3569261 | 18 BOLT (M12X1.75X90-MM) | 8 | |
| 3569301 | 19 SPACER (13.8X30X60-MM THK) | 8 | |
| 4837804 | 20 SPACER (13.5X25X50-MM THK) | 4 | |
| 5089685 | 21 LINER | 1 | |
| 5167545 | 22 LINER | 1 | |
| 5167546 | 23 LINER | 1 | |
| 5250706 | 24 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5250715 | 25 HANDLE AS | 1 | |
| 5250719 | 26 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5259737 | 29 SUPPORT AS | 1 | |
| 5277804 | 30 SHIM (1-MM THK) | 2 | |
| 5277805 | 31 SHIM (2-MM THK) | 2 | |
| 5360278 | 32 PLATE | 1 | |
| 5462626 | 33 COVER AS | 1 | |
| 5462639 | 34 SUPPORT AS | 1 | |
| 5543211 | 35 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5605456 | 36 PLATE AS | 1 | |
| 5672586 | 37 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 8 | |
| 5672613 | 38 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5672670 | 39 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5701510 | 40 SHEET AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5716436 | 41 SUPPORT AS | 1 | |
| 5250685 | 42 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5250695 | 43 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5250717 | 44 SHEET AS | 1 | |
| 5283534 | 45 DOOR GP-ACCESS | 1 | |
| 5462601 | 46 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 9 | |
| 5464979 | 47 ROD AS | 3 | |
| 4B4278 | WASHER (10.2X20.5X1.6-MM THK) | 1 | |
| 5480421 | 48 BRACKET AS | 1 | |
| 5480424 | 49 SUPPORT AS | 1 | |
| 5480428 | 50 SHEET AS | 1 | |
| 5549537 | LINER | 1 | |
| 5480448 | 51 SHEET AS | 1 | |
| 5543218 | 52 SUPPORT AS | 1 | |
| 5543227 | 53 SUPPORT AS-SOUND SUPPRESSION | 1 | |
| 5543232 | 54 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5543235 | 55 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 6 | |
| 5543247 | 56 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5543470 | 57 SUPPORT AS | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 5 | |
| 5543495 | 58 SUPPORT AS | 1 | |
| 7Y6215 | PLATE | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5672591 | 61 SUPPORT AS | 1 | |
| 5672650 | 62 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5672655 | 63 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5672677 | 64 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 9 | |
| 5672689 | 65 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 5 | |
| 5672692 | 66 SUPPORT AS | 1 | |
| 5672695 | 67 SHEET AS | 1 | |
| 4I7924 | WASHER (4.5X40X1.2-MM THK) | 2 | |
| 6P2216 | CAP (PUSH ON) | 2 | |
| 3504615 | SILENCER | 1 | |
| 5672699 | 69 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 6 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 5672704 | 70 SHEET AS | 1 | |
| 5672706 | LINER | 1 | |
| 5672719 | 71 SHEET AS | 1 | |
| 5701382 | 72 SHEET AS | 1 | |
| 4I7924 | WASHER (4.5X40X1.2-MM THK) | 2 | |
| 6P2216 | CAP (PUSH ON) | 2 | |
| 5701516 | 73 SUPPORT AS | 1 | |
| 7Y6215 | PLATE | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 17 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 2 | |
| 5701598 | 74 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 5 | |
| 5716438 | 75 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 6 | |
| 5722438 | 76 HANDLE AS | 1 | |
| 5744041 | 77 SUPPORT AS-SOUND SUPPRESSION | 1 | |
| 5744044 | 78 SHEET AS | 1 | |
| 5549532 | LINER | 2 | |
| 5744047 | 79 SUPPORT AS | 1 | |
| 5750589 | 80 SHEET AS | 1 | |
| 4I7924 | WASHER (4.5X40X1.2-MM THK) | 2 | |
| 6P2216 | CAP (PUSH ON) | 2 | |
| 5750595 | 81 SUPPORT AS | 1 | |
| 9M5732 | RIVET-POP | 2 | |
| 9X6165 | WASHER (6.5X22X2.5-MM THK) | 2 |
