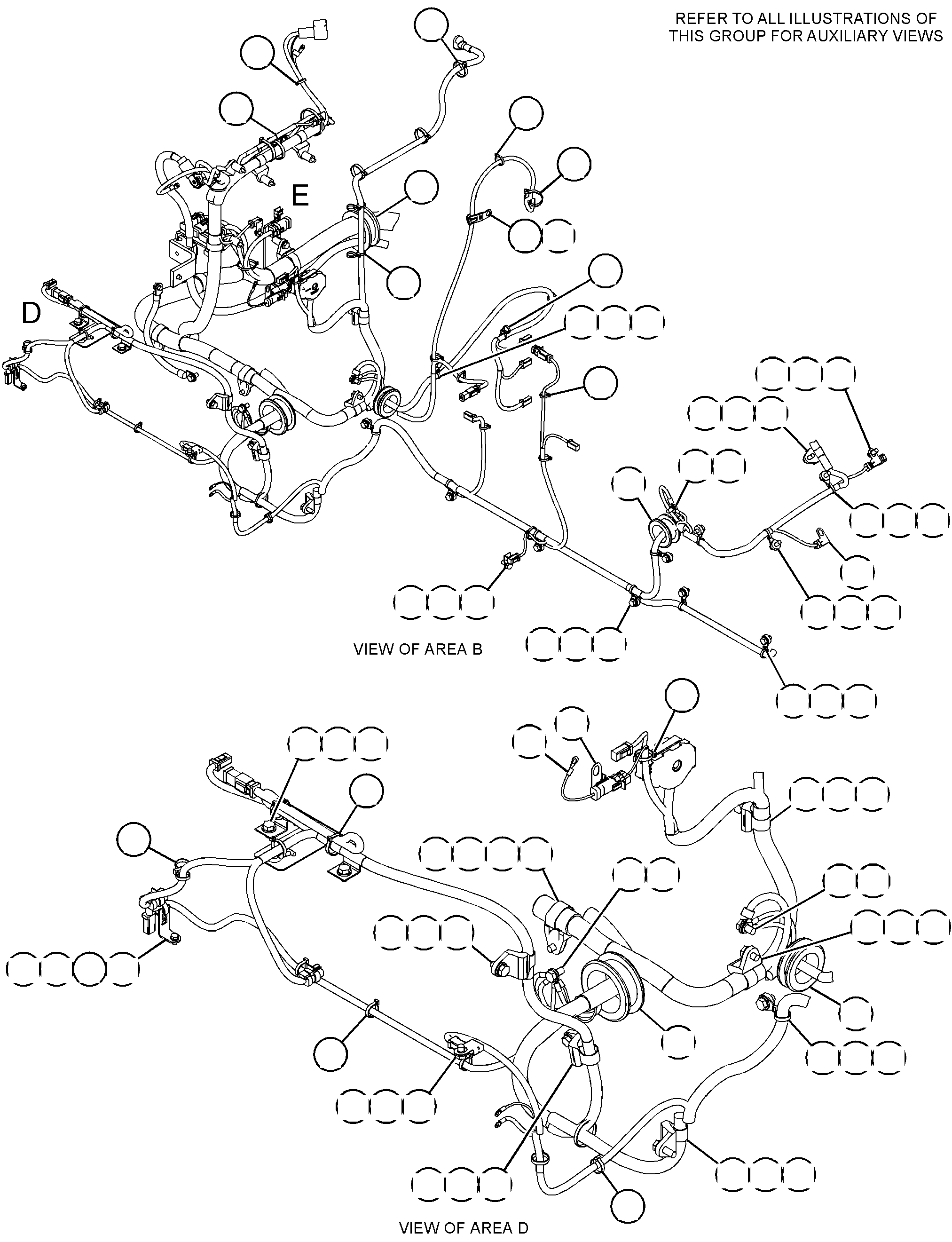

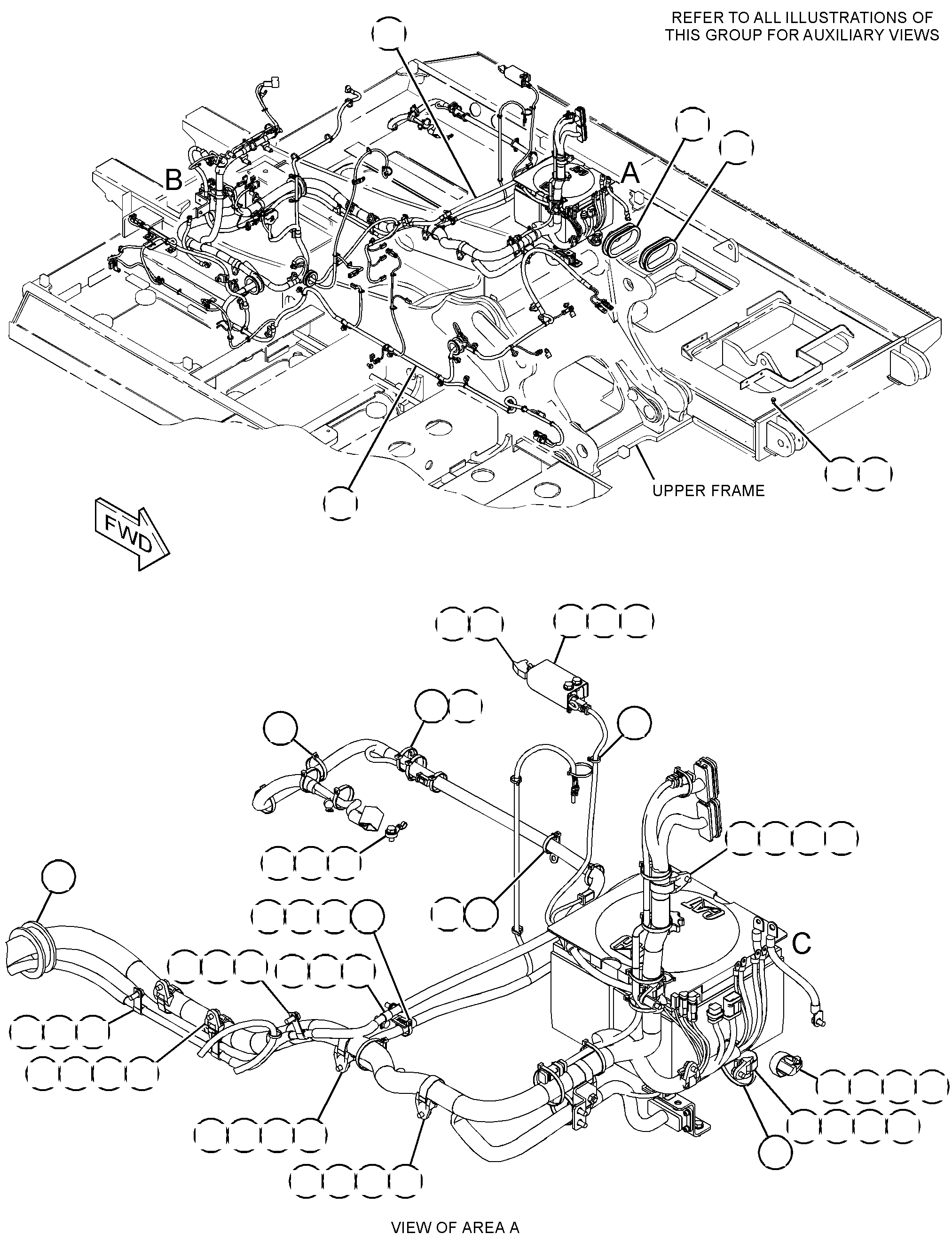

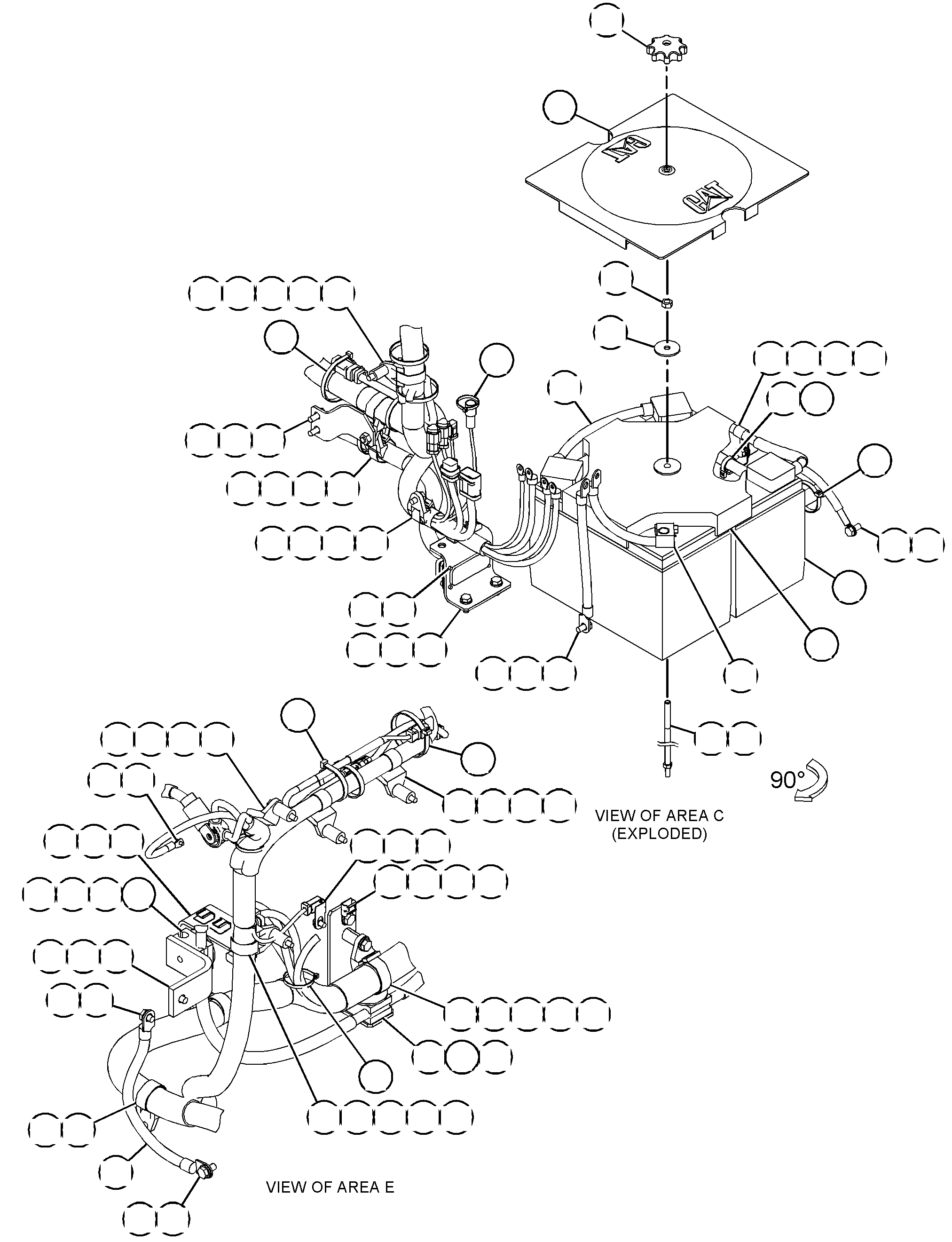

283-2784 BATTERY & WIRING GPS/N CYZ385-395

Group No: 283-2784
Part NumberPart NameQty
2G87671 WASHER (10.5X60X3-MM THK)2
3S20932 STRAP-CABLE30
3T57603 BATTERY GP (12-VOLT, 750-CCA)2
1231373CAP AS-FILLER (7/8-9-THD)6
4I35034 GROMMET1
5I82705 COVER-BATTERY1
6W60056 HOLD-DOWN-BATTERY1
7I26737 STRAP-CABLE4
7K11818 STRAP-CABLE31
37780289 HARNESS AS-SOLENOID (COMPRESSOR CLUTCH)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)4
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1552270KIT-CONNECTING PLUG (2-PIN)1
1974385DIODE1
2304011PLUG AS-CONNECTOR (2-PIN)1
2647029SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
111483610 CLIP12
111483711 CLIP9
111483812 CLIP16
111483913 STRAP16
116011814 CLIP7
132180515 STRAP AS-GROUND1
132180616 STRAP AS-GROUND1
139211817 SWITCH AS-TOGGLE (SECONDARY SHUTDOWN)1
1028802KIT-RECEPTACLE (2-PIN)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
170692918 CABLE AS1
5P0761CABLE (00-GA, RED)(31-CM)
9G0002COVER AS-TERMINAL (RED)1
9G0005COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
366933119 BRACKET AS-PUMP1
183104920 BRACKET1
231182721 CABLE AS1
5P0747CABLE (00-GA, BLACK)(23-CM)
9G0003COVER AS-TERMINAL (BLACK)(BATTERY NEGATIVE)1
8L8413STRAP-CABLE (WHITE)1
9G8909COVER-TERMINAL (BLACK)(DISCONNECT SWITCH)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
8T9757TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
231450222 GUARD1
238250123 KNOB1
238252824 ROD1
251046725 BRACKET AS1
259526726 BRACKET AS1
259531727 BRACKET AS1
388683828 BRACKET AS1
291759129 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
5P0761CABLE (00-GA, RED)(324-CM)
8N0869COVER-TERMINAL (RED)(STARTING MOTOR)1
9G0004COVER AS-TERMINAL (RED)(BATTERY POSITIVE)1
8L8413STRAP-CABLE (WHITE)1
8C5917TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
291759330 BRACKET AS1
299276731 WIRE AS1
366932232 HARNESS AS-CHASSIS1
1028802KIT-RECEPTACLE (2-PIN)1
1028803KIT-RECEPTACLE (3-PIN)2
1028804KIT-RECEPTACLE (4-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)12
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)41
3S2093STRAP-CABLE19
3T4688TERMINAL-RING (4-GA, 7/16-IN SCREW)2
7Y3962TERMINAL-BULLET (MALE)1
7Y3964TUBE1
7Y3963TERMINAL-BULLET (FEMALE)1
7Y3965TUBE1
8T8737PLUG-SEAL112
8T8827BOOT (RED)2
9W0852PIN-CONNECTOR (14-GA TO 16-GA)13
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)10
1160126HOUSING-PLUG1
1160128SEAL2
1160255TERMINAL-BLADE (10-GA TO 20-GA)(FEMALE)2
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(26-CM)
1211038HOUSING-RECEPTACLE1
1211039TERMINAL (MALE)1
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(90-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(55-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)124
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)124
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)4
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)5
5P3454TERMINAL-RING (4-GA, 5/16-IN SCREW)2
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)3
2L8049TERMINAL-RING (6-GA, NO. 10 SCREW)1
2L8057TERMINAL-RING (8-GA, NO. 10 SCREW)1
2L8050TERMINAL-RING (6-GA, 1/4-IN SCREW)1
2L8058TERMINAL-RING (8-GA, 1/4-IN SCREW)1
2L8052TERMINAL-RING (6-GA, 3/8-IN SCREW)1
2L8060TERMINAL-RING (8-GA, 3/8-IN SCREW)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)7
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)2
1337442HOSE (80-CM)
1343297SEAL1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)48
1261767PIN-CONNECTOR (14-GA TO 16-GA)48
1532620PLUG AS-CONNECTOR (54-PIN, BLACK)1
1636759SEAL1
1532630PLUG AS-CONNECTOR (54-PIN, BROWN)1
1636759SEAL1
1552270KIT-CONNECTING PLUG (2-PIN)16
1552271KIT-CONNECTING PLUG (4-PIN)2
1636637RECEPTACLE AS-CONNECTOR (54-PIN, BLACK)1
1636773PLUG-SEAL2
1743016PLUG AS-RESISTOR (3-PIN, 120 OHM)2
2304009PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)9
2647029SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)2
2647030SEAL-CONNECTOR1
2305008PLUG AS-CONNECTOR (4-PIN)1
2647031SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)2
2647032SEAL-CONNECTOR1
2312295PLUG AS-CONNECTOR (8-PIN)3
2647033SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)6
2434507RECEPTACLE AS-CONNECTOR (4-PIN)1
2434508RECEPTACLE AS-CONNECTOR (6-PIN)3
2434509RECEPTACLE AS-CONNECTOR (8-PIN)2
2434510RECEPTACLE AS-CONNECTOR (12-PIN)2
2451042PLUG AS-CONNECTOR (64-PIN)1
2677207BOLT-SPECIAL (M6X1-THD)1
2677208RING-RETAINING1
2744990SEAL1
2451044LOCK-CONNECTOR2
2451045COVER1
2679572SOCKET-CONNECTION (18-GA)25
2451048PLUG-CONNECTOR (1-PIN)39
3280072BOOT (RED)1
085732933 SPACER (9X19X30-MM THK)4
091903534 SPACER (11X25X20-MM THK)1
124098635 GROMMET2
132578936 CLIP (LADDER)2
156617537 CLIP (LADDER)1
4K886438 CLIP (LOOP)1
4P742839 CLIP (LADDER)1
4P758140 CLIP (LADDER)2
5C726141 NUT (M8X1.25-THD)1
5C788342 BOLT-SOCKET HEAD (M6X1X16-MM)4
5I387843 GROMMET (50-MM ID)1
5P411644 WASHER-HARD (8.8X20.5X2-MM THK)5
6G225645 CLAMP2
6G226346 SPACER (10.5X19X28.5-MM THK)4
6K817847 CLIP (LOOP)4
7X262148 BOLT (M10X1.5X12-MM)2
7Y816549 GROMMET1
7Y816750 GROMMET (50-MM ID)1
8T028651 BOLT (M5X0.8X8-MM)1
8T032852 WASHER-HARD (5.5X10X1-MM THK)1
8T412153 WASHER-HARD (11X21X2.5-MM THK)60
8T413354 NUT (M10X1.5-THD)1
8T413655 BOLT (M10X1.5X25-MM)11
8T413756 BOLT (M10X1.5X20-MM)37
8T417157 BOLT (M6X1X12-MM) (M6X1X12-MM)1
8T418258 BOLT (M10X1.5X45-MM)2
8T418559 BOLT (M10X1.5X50-MM)2
8T419160 BOLT (M10X1.5X16-MM)2
8T419561 BOLT (M10X1.5X30-MM)4
8T419662 BOLT (M10X1.5X35-MM)1
8T419964 BOLT (M8X1.25X12-MM)1
8T422665 WASHER-PLATED (10.5X45X3-MM THK)1
8T646666 BOLT (M10X1.5X60-MM)1
8T691267 BOLT (M8X1.25X50-MM)4
9X825668 WASHER (6.6X12X2-MM THK)5
