System And Components
Assembly
100%

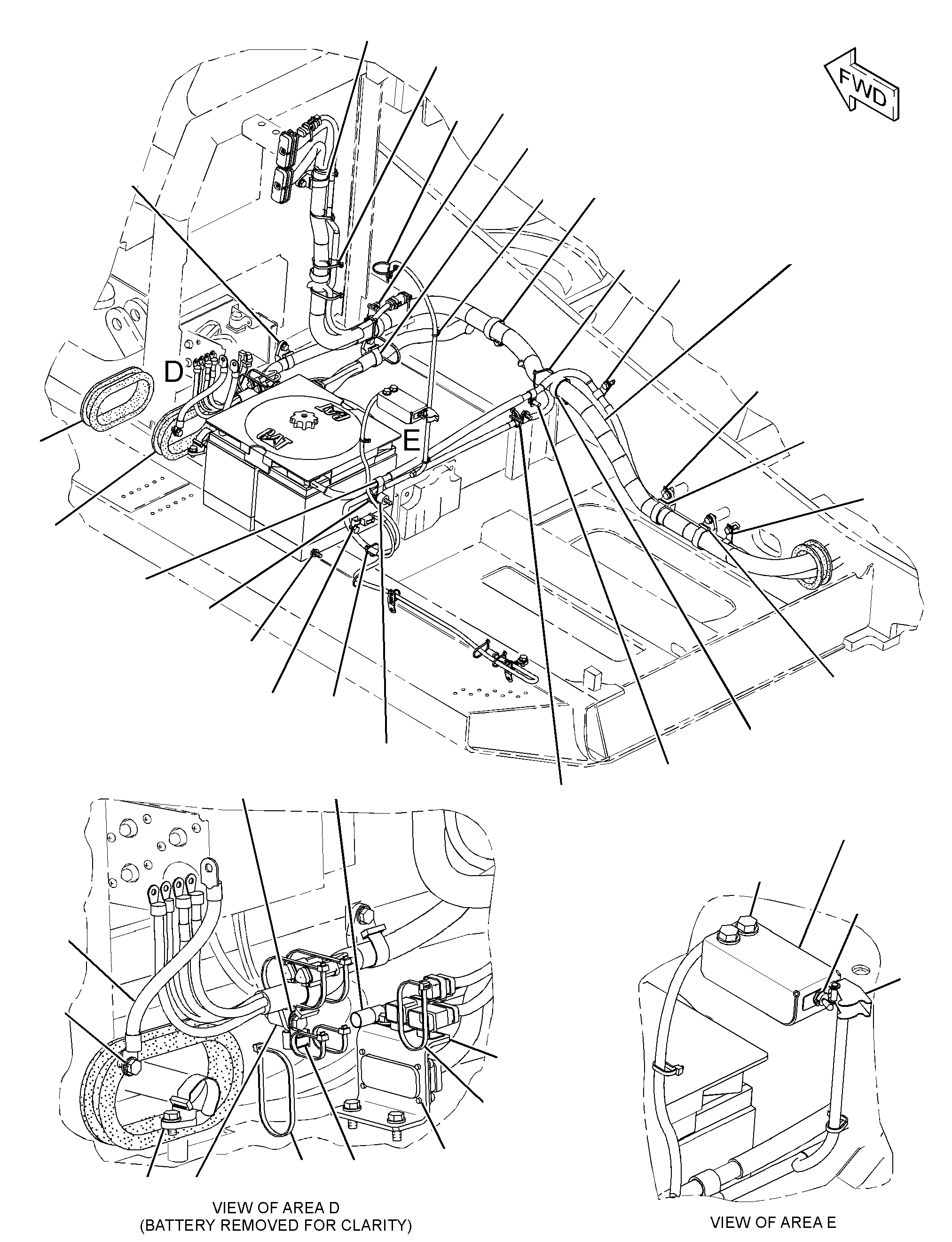

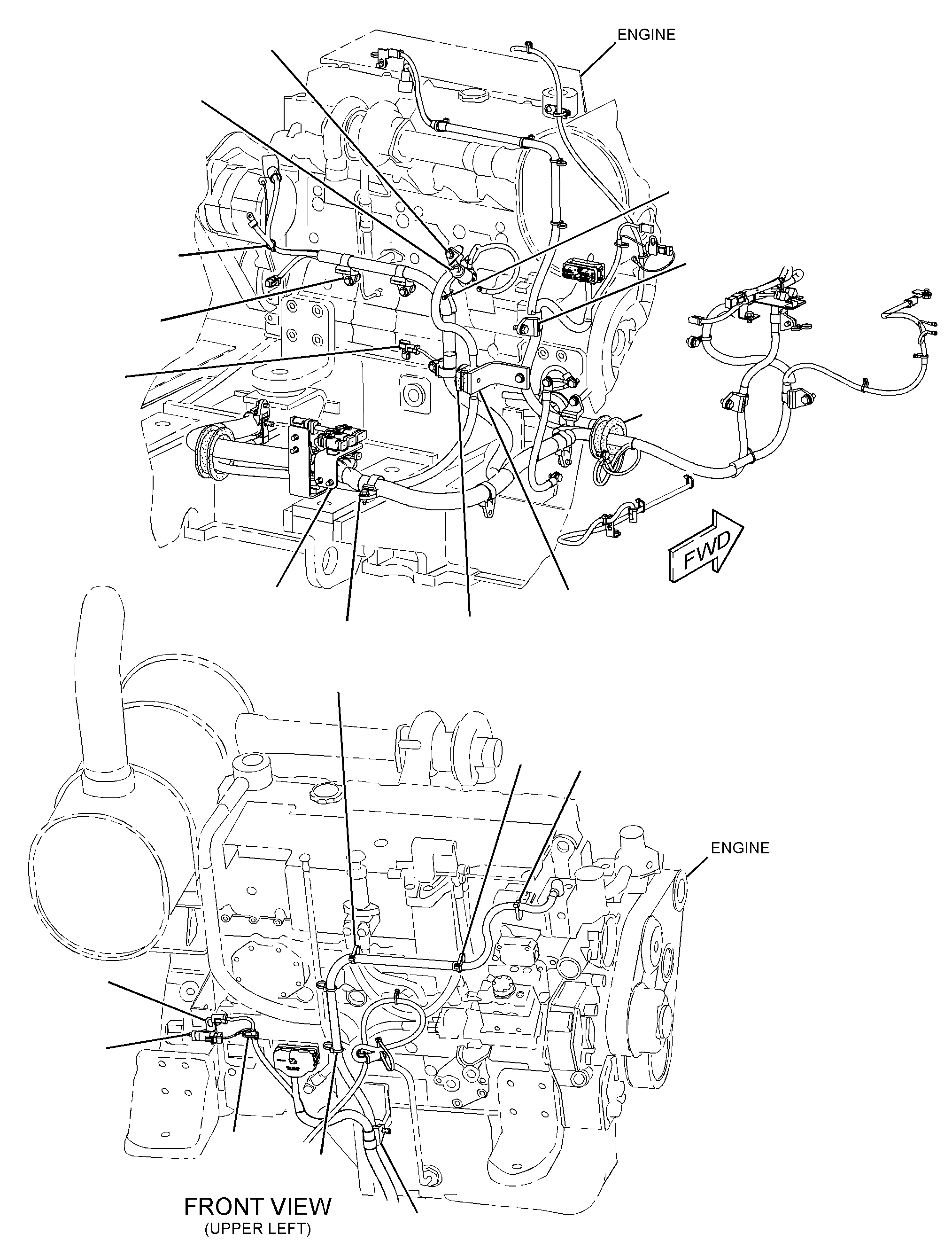

306-8593 BATTERY & WIRING GPS/N CYZ226-235

Group No: 306-8593
Part NumberPart NameQty
2G87671 WASHER (10.5X60X3-MM THK)2
3S20932 STRAP-CABLE30
3T57603 BATTERY GP (12-VOLT, 750-CCA)2
1231373CAP AS-FILLER (7/8-9-THD)6
5I82704 COVER-BATTERY1
6G22565 CLAMP2
6G22636 SPACER (10.5X19X28.5-MM THK)5
6W60057 HOLD-DOWN-BATTERY1
7I26738 STRAP-CABLE4
7K11819 STRAP-CABLE24
7Y192410 SPACER (9X19X23-MM THK)2
085732911 SPACER (9X19X30-MM THK)2
091903512 SPACER (11X25X20-MM THK)1
111483613 CLIP12
111483714 CLIP9
111483815 CLIP16
111483916 STRAP16
116011817 CLIP10
132180518 STRAP AS-GROUND1
132180619 STRAP AS-GROUND1
139211820 SWITCH AS-TOGGLE (SECONDARY SHUTDOWN)1
1028802KIT-RECEPTACLE (2-PIN)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
170692921 CABLE AS1
1598049CABLE (00-GA, RED)(31-CM)
9G0002COVER AS-TERMINAL (RED)1
8L8413STRAP-CABLE (WHITE)1
9G0005COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
8T9756TERMINAL AS-BATTERY (POSITIVE)(LH)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
170933622 BRACKET AS1
7T1099LINK2
183104923 BRACKET1
231182724 CABLE AS1
1598050CABLE (00-GA, BLACK)(23-CM)
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G0003COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
9G8909COVER-TERMINAL (BLACK)1
8T9757TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
231450225 GUARD1
238250126 KNOB1
238252827 ROD1
251046728 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)1
259526729 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)1
259531730 BRACKET AS1
291746631 BRACKET AS1
1211029CLIP1
291759132 CABLE AS1
1598049CABLE (00-GA, RED)(324-CM)
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
8N0869COVER-TERMINAL (RED)1
9G0004COVER AS-TERMINAL (RED)1
8L8413STRAP-CABLE (WHITE)1
8C5917TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
291759333 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)1
299276734 WIRE AS1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)1
8T8737PLUG-SEAL1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
306840135 GROMMET (85-MM ID)1
328017036 HARNESS AS-CHASSIS1
2451042PLUG AS-CONNECTOR (64-PIN)1
2451044LOCK-CONNECTOR1
2451045COVER1
2679572SOCKET-CONNECTION (18-GA)1
2451048PLUG-CONNECTOR (1-PIN)1
2677207BOLT-SPECIAL (M6X1-THD)1
2744990SEAL1
3280072BOOT1
1532630PLUG AS-CONNECTOR (54-PIN, BROWN)1
1636759SEAL1
1552270KIT-CONNECTING PLUG (2-PIN)16
1552271KIT-CONNECTING PLUG (4-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)2
1636637RECEPTACLE AS-CONNECTOR (54-PIN, BLACK)1
1636773PLUG-SEAL2
1743016PLUG AS-RESISTOR (3-PIN, 120 OHM)2
2304009PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)10
2647029SEAL-CONNECTOR1
2305008PLUG AS-CONNECTOR (4-PIN)1
2647031SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)2
2647032SEAL-CONNECTOR1
2312295PLUG AS-CONNECTOR (8-PIN)3
2647033SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)6
2434507RECEPTACLE AS-CONNECTOR (4-PIN)1
2434508RECEPTACLE AS-CONNECTOR (6-PIN)3
2434509RECEPTACLE AS-CONNECTOR (8-PIN)2
2434510RECEPTACLE AS-CONNECTOR (12-PIN)2
1028802KIT-RECEPTACLE (2-PIN)1
1028803KIT-RECEPTACLE (3-PIN)1
1028804KIT-RECEPTACLE (4-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)12
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)41
3S2093STRAP-CABLE17
3T4688TERMINAL-RING (4-GA, 7/16-IN SCREW)1
7Y3966TERMINAL AS1
7Y3962TERMINAL-BULLET (MALE)1
7Y3964TUBE1
7Y3967TERMINAL AS1
7Y3963TERMINAL-BULLET (FEMALE)1
7Y3965TUBE1
8T8737PLUG-SEAL12
8T8827BOOT (RED)1
1108769WIRE AS (16-GA, BLACK)1
9W0852PIN-CONNECTOR (14-GA TO 16-GA)13
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)10
1160126HOUSING-PLUG1
1160128SEAL2
1160255TERMINAL-BLADE (10-GA TO 20-GA)2
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(26-CM)
1211038HOUSING-RECEPTACLE1
1211039TERMINAL (MALE)1
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(90-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(55-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)126
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)4
1311478TERMINAL AS5
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)2
1311487TERMINAL AS (6-GA TO 8-GA)1
1311488TERMINAL AS-RING (6-GA TO 8-GA)1
1311490TERMINAL AS (6-GA TO 8-GA)1
1311490TERMINAL AS (6-GA TO 8-GA)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)7
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)2
1769299KIT-RECEPTACLE (3-PIN)2
1343297SEAL1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)48
1261767PIN-CONNECTOR (14-GA TO 16-GA)48
1532620PLUG AS-CONNECTOR (54-PIN, BLACK)1
124098637 GROMMET2
132578938 CLIP (LADDER)2
156617539 CLIP (LADDER)1
4K886440 CLIP (LOOP)1
4P742841 CLIP (LADDER)1
4P758142 CLIP (LADDER)2
5C726143 NUT (M8X1.25-THD)1
5C788344 BOLT-SOCKET HEAD (M6X1X16-MM)4
5I387845 GROMMET (50-MM ID)1
5P411646 WASHER-HARD (8.8X20.5X2-MM THK)5
6K817847 CLIP (LOOP)4
7X081848 BOLT (M8X1.25X45-MM)2
7X262149 BOLT (M10X1.5X12-MM)2
7Y816550 GROMMET1
7Y816751 GROMMET (50-MM ID)1
8M277052 CLIP (LOOP)1
8T028653 BOLT (M5X0.8X8-MM)1
8T032854 WASHER-HARD (5.5X10X1-MM THK)1
8T412155 WASHER-HARD (11X21X2.5-MM THK)62
8T413356 NUT (M10X1.5-THD)1
8T413657 BOLT (M10X1.5X25-MM)10
8T413758 BOLT (M10X1.5X20-MM)38
8T417159 BOLT (M6X1X12-MM) (M6X1X12-MM)1
8T418260 BOLT (M10X1.5X45-MM)2
8T418561 BOLT (M10X1.5X50-MM)3
8T419162 BOLT (M10X1.5X16-MM)3
8T419563 BOLT (M10X1.5X30-MM)4
8T419664 BOLT (M10X1.5X35-MM)1
8T419965 BOLT (M8X1.25X12-MM)1
8T422666 WASHER-PLATED (10.5X45X3-MM THK)1
8T646667 BOLT (M10X1.5X60-MM)1
8T691268 BOLT (M8X1.25X50-MM)2
9X825669 WASHER (6.6X12X2-MM THK)5
